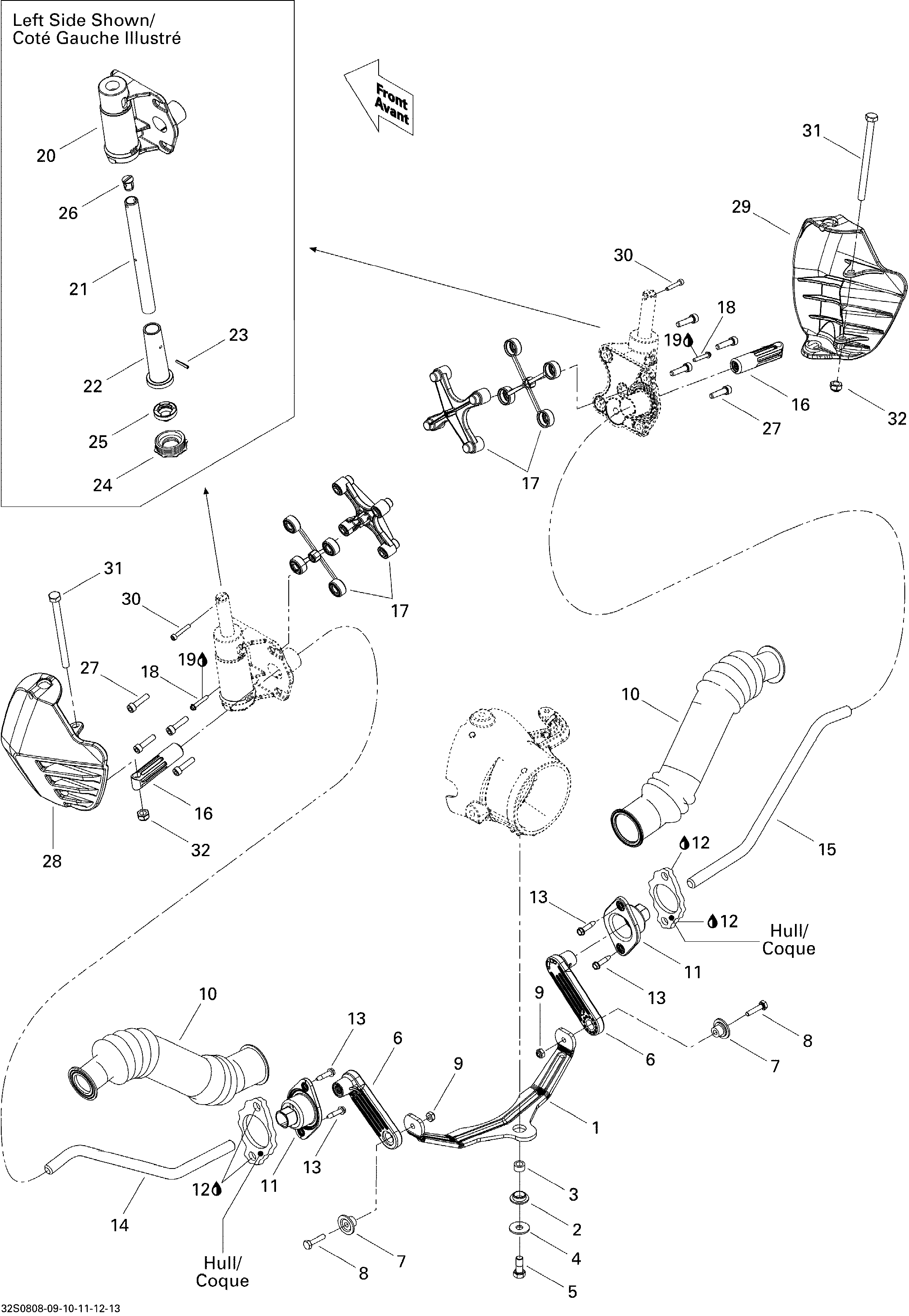

07- Off Power Assisted Steering для BRP GTI SE 130 - 2008
-
№АртикулНазвание
-
1277000979 U LeverU Lever
-
2271000321 Venturi BushingVenturi Bushing
-
3277000980 BushingBushing
-
4234082600 Flat Washer 8 mmFlat Washer 8 mm
-
5207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
6265000013 LeverLever
-
7293900042 Flanged BushingFlanged Bushing
-
8207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
9232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
10277001123 Seal TubeSeal Tube
-
11277001164 Rod GrommetRod Grommet
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
14277001459 LH Tie RodLH Tie Rod
-
15277001404 RH Tie RodRH Tie Rod
-
16265000014 Fitting StabilisatorFitting Stabilisator
-
17277001177 Support Plate Ass'ySupport Plate Ass'y
-
18241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20265000039 LH Cylinder SupportLH Cylinder Support
-
20265000040 RH Cylinder SupportRH Cylinder Support
-
21277001091 Pivot RodPivot Rod
-
22265000048 SpacerSpacer
-
23250400014 Spring PinSpring Pin
-
24265000009 Threaded CoverThreaded Cover
-
25277000985 Wear RingWear Ring
-
26277001185 Locking InsertLocking Insert
-
27250000328 Button Hd. Torx Screw M6 X 25 S.GripButton Hd. Torx Screw M6 X 25 S.Grip
-
28277001486 LH Side VaneLH Side Vane
-
29277001487 RH Side VaneRH Side Vane
-
30205042560 Socket Head Screw M4 X 25Socket Head Screw M4 X 25
-
31250000077 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
32232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
