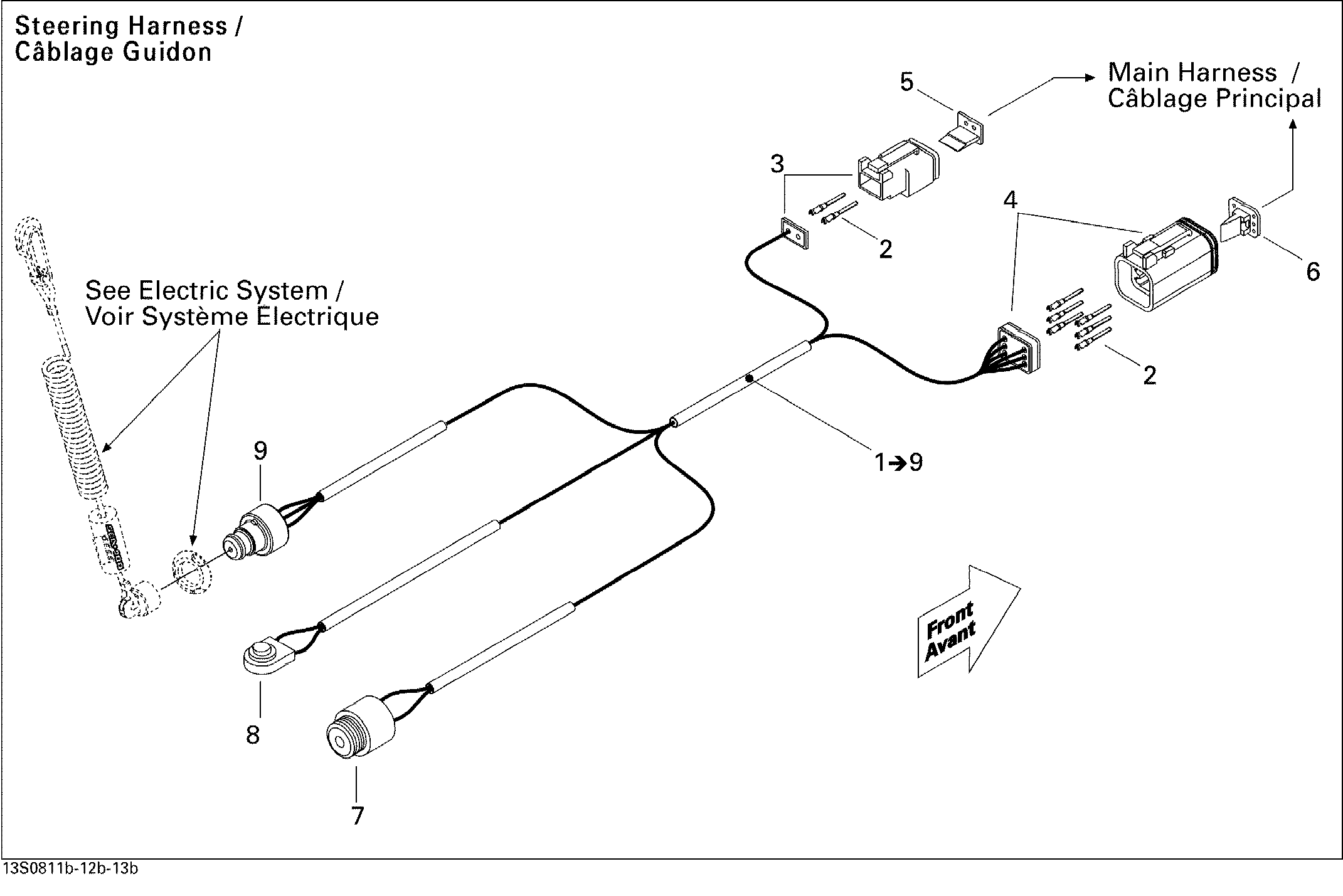

10- Electrical Harness 2 для BRP GTI SE 155 - 2008
-
№АртикулНазвание
-
1278002383 Steering Harness Ass'y. Includes 1 to 9Steering Harness Ass'y. Includes 1 to 9
-
2278000632 Female TerminalFemale Terminal
-
3409207300 Female Connector, 2 CircuitsFemale Connector, 2 Circuits
-
4278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
5409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
6278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
7278002290 BuzzerBuzzer
-
8278001733 Start/Stop SwitchStart/Stop Switch
-
9278002350 Safety SwitchSafety Switch
