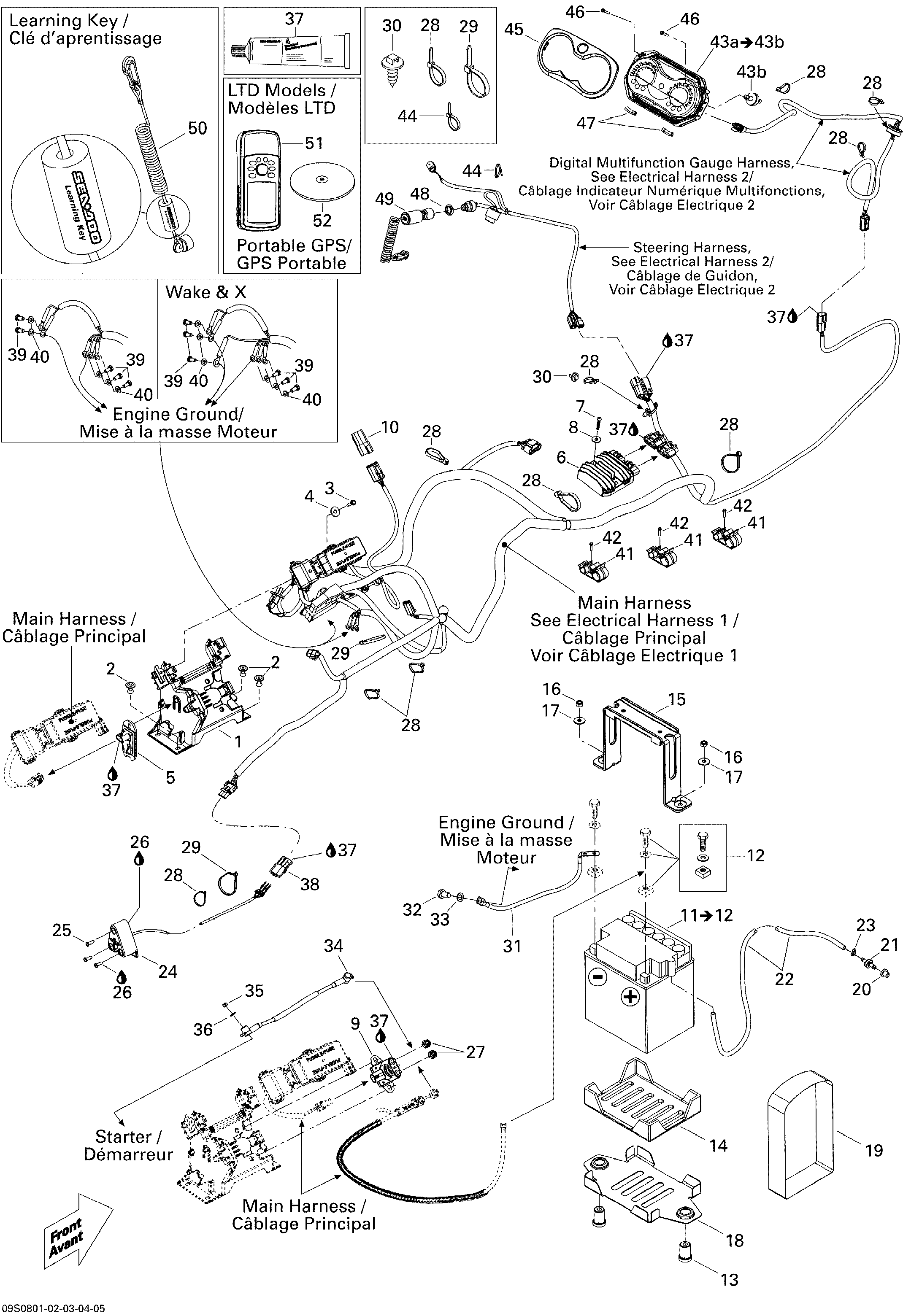

10- Electrical System для BRP GTX 155 - 2008
-
№АртикулНазвание
-
1278002157 Module SupportModule Support
-
2293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
3211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
4234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5278001992 Interrupter T.O.P.S.Interrupter T.O.P.S.
-
6710001103 Voltage RegulatorVoltage Regulator
-
7250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
8234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9278001802 Relay StarterRelay Starter
-
10278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
11278001882 Battery, 30 Amperes. Includes 11 to 12Battery, 30 Amperes. Includes 11 to 12
-
12295500849 Battery Fastener KitBattery Fastener Kit
-
13278001939 BushingBushing
-
14278001582 Lower Battery PadLower Battery Pad
-
15278001677 Battery SupportBattery Support
-
16232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
17234082600 Flat Washer 8 mmFlat Washer 8 mm
-
18278001966 Battery SupportBattery Support
-
19278001764 Battery Strap 337 mmBattery Strap 337 mm
-
20293720029 GrommetGrommet
-
21275500499 Check ValveCheck Valve
-
22275500446 Hose 6 mmHose 6 mm
-
23293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
24278001993 Speed SensorSpeed Sensor
-
25211000021 Pan Head Phillips Screw 10 X 7/8''Pan Head Phillips Screw 10 X 7/8''
-
26296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
27232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30293730040 Mount DartMount Dart
-
31278002176 Ground CableGround Cable
-
32207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
33234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
34278002061 Starter CableStarter Cable
-
35232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
36234061600 Flat Washer M6Flat Washer M6
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
39207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
40234061600 Flat Washer M6Flat Washer M6
-
41275500553 RetainerRetainer
-
42241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
43a278002270 Digital Multifunction Gauge. Includes 43a to 43bDigital Multifunction Gauge. Includes 43a to 43b
-
43b275500398 Check ValveCheck Valve
-
44293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
45278002144 Gauge Bezel, ChromeGauge Bezel, Chrome
-
46241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
47293830113 TrimTrim
-
48278000508 Safety Switch NutSafety Switch Nut
-
49278002199 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
50278002203 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
