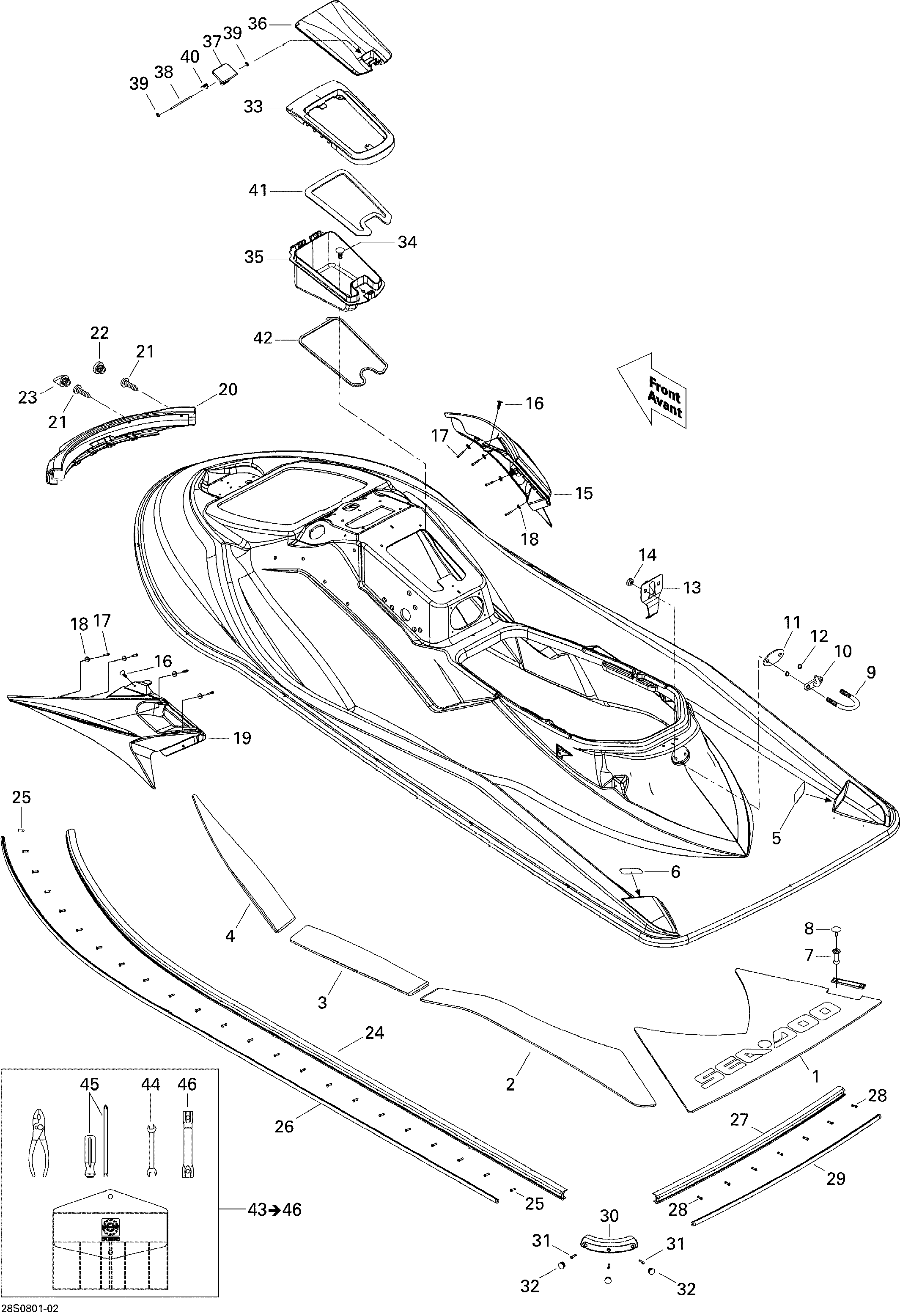

09- Body, Rear View для BRP GTX 215 - 2008
-
№АртикулНазвание
-
1291002316 Rear CarpetRear Carpet
-
2291002382 RH Center Rear CarpetRH Center Rear Carpet
-
2291002383 LH Center Rear CarpetLH Center Rear Carpet
-
3291002384 RH Center Front CarpetRH Center Front Carpet
-
3291002385 LH Center Front CarpetLH Center Front Carpet
-
4291002386 RH Front CarpetRH Front Carpet
-
4291002387 LH Front CarpetLH Front Carpet
-
5291001758 RH Anti-SkidRH Anti-Skid
-
6291001759 LH Anti-SkidLH Anti-Skid
-
7293150016 Rivet 1/8''Rivet 1/8''
-
8293000014 Snap CapSnap Cap
-
9292000011 U-clampU-clamp
-
10291002351 HookHook
-
11291001386 Finition Plate, BlackFinition Plate, Black
-
12293300123 O-ringO-ring
-
13291001747 Retainer PlateRetainer Plate
-
14232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
15269501527 RH Front MouldingRH Front Moulding
-
16293730006 Black DartBlack Dart
-
17241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
18250200055 Washer 4.3 mm, NylonWasher 4.3 mm, Nylon
-
19269501529 LH Front MouldingLH Front Moulding
-
20291001942 Bumper Nose, BlackBumper Nose, Black
-
21250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
22291001519 Bumper Plug, BlackBumper Plug, Black
-
23291001040 Bumper Plug, BlackBumper Plug, Black
-
24291002503 Side BumperSide Bumper
-
25293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
26291002324 Side Trim, GreySide Trim, Grey
-
27291002242 Rear Bumper, BlackRear Bumper, Black
-
28293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
29291002325 Rear Bumper Trim, GreyRear Bumper Trim, Grey
-
30291002244 Bumper CornerBumper Corner
-
31293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
32291000339 Bumper PlugBumper Plug
-
33269501031 Cover Trim, BlackCover Trim, Black
-
34293730006 Black DartBlack Dart
-
35269500968 Glove BoxGlove Box
-
36269501648 Glove Box DoorGlove Box Door
-
37269500553 Latch, BlackLatch, Black
-
38211400008 PinPin
-
39211100002 Push NutPush Nut
-
40291000922 Latch SpringLatch Spring
-
41293250126 GasketGasket
-
42293250127 GasketGasket
-
43294000744 Tool Kit. Includes 43 to 46Tool Kit. Includes 43 to 46
-
44529017300 Fork WrenchFork Wrench
-
45529000004 Driver ScrewDriver Screw
