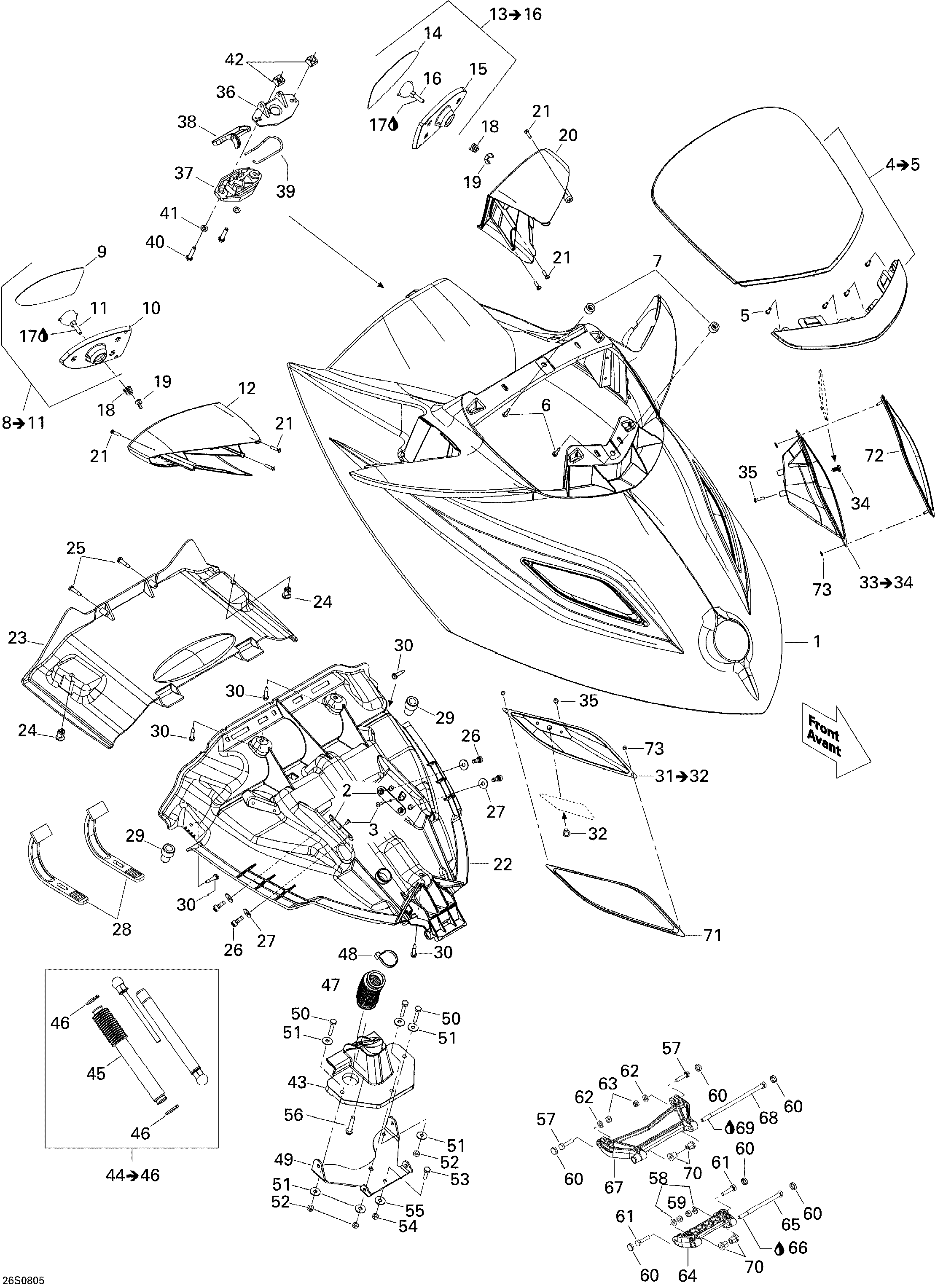

09- Front Storage Compartment для BRP GTX Limited 215 - 2008
-
№АртикулНазвание
-
1269501534 Storage CoverStorage Cover
-
2277001479 PlatePlate
-
3293150006 Pop Rivet 1/8''Pop Rivet 1/8''
-
4269501611 Deflector. Includes 4 to 5Deflector. Includes 4 to 5
-
5241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
6243041660 Hex. Plastite Screw M4.8 X 16Hex. Plastite Screw M4.8 X 16
-
7291001203 SpacerSpacer
-
8269501602 RH Mirror Ass'y. Includes 8 to 11RH Mirror Ass'y. Includes 8 to 11
-
9269501328 RH MirrorRH Mirror
-
10269501330 Mirror FrameMirror Frame
-
11269501333 Mirror Ball JointMirror Ball Joint
-
12269501535 RH Mirror HousingRH Mirror Housing
-
13269501603 LH Mirror Ass'y. Includes 13 to 16LH Mirror Ass'y. Includes 13 to 16
-
14269501634 LH MirrorLH Mirror
-
15269501330 Mirror FrameMirror Frame
-
16269501333 Mirror Ball JointMirror Ball Joint
-
17293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
18269500453 Mirror SpringMirror Spring
-
19232661600 Wing Nut M6Wing Nut M6
-
20269501536 LH Mirror HousingLH Mirror Housing
-
21250000287 Allen Flanged Screw K40x16Allen Flanged Screw K40x16
-
22269501552 Storage Cover Sub-Ass'yStorage Cover Sub-Ass'y
-
23269501610 Access BoardAccess Board
-
24293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
25211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
26205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
27234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
28269500408 StrapStrap
-
29293830119 Rubber BufferRubber Buffer
-
30211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
31269501635 RH Grill Ass'y. Includes 31 to 32RH Grill Ass'y. Includes 31 to 32
-
32293730016 Dart, BlackDart, Black
-
33269501636 LH Grill Ass'y. Includes 33 to 34LH Grill Ass'y. Includes 33 to 34
-
34293730016 Dart, BlackDart, Black
-
35250000287 Allen Flanged Screw K40x16Allen Flanged Screw K40x16
-
36269700076 Latch CoverLatch Cover
-
37269000015 Latch BaseLatch Base
-
38269700077 Latch LeverLatch Lever
-
39269700017 Latch SpringLatch Spring
-
40207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
41234061600 Flat Washer M6Flat Washer M6
-
42269501166 Nut Housing Ass'yNut Housing Ass'y
-
43269501553 Shock BaseShock Base
-
44269501555 Shock Ass'y. Includes 44 to 46Shock Ass'y. Includes 44 to 46
-
45269501557 BellowBellow
-
46293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
47293720078 GrommetGrommet
-
48414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
49269501639 Pivot SupportPivot Support
-
50207163060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
51234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
52232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
53207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
54232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
55234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
56243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
57211000022 Hex. Special Screw M6 X 25Hex. Special Screw M6 X 25
-
58234061600 Flat Washer M6Flat Washer M6
-
59232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
60414436900 Snap Cap, BlackSnap Cap, Black
-
61211000022 Hex. Special Screw M6 X 25Hex. Special Screw M6 X 25
-
62234061600 Flat Washer M6Flat Washer M6
-
63232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
64269501482 Front ArmFront Arm
-
65230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
66293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
67269501481 Rear ArmRear Arm
-
68230065060 Hex. Screw M6 X 150Hex. Screw M6 X 150
-
69293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
70269500706 SleeveSleeve
-
71269501547 RH Chrome CapRH Chrome Cap
-
72269501551 LH Chrome CapLH Chrome Cap
-
73211100002 Push NutPush Nut
