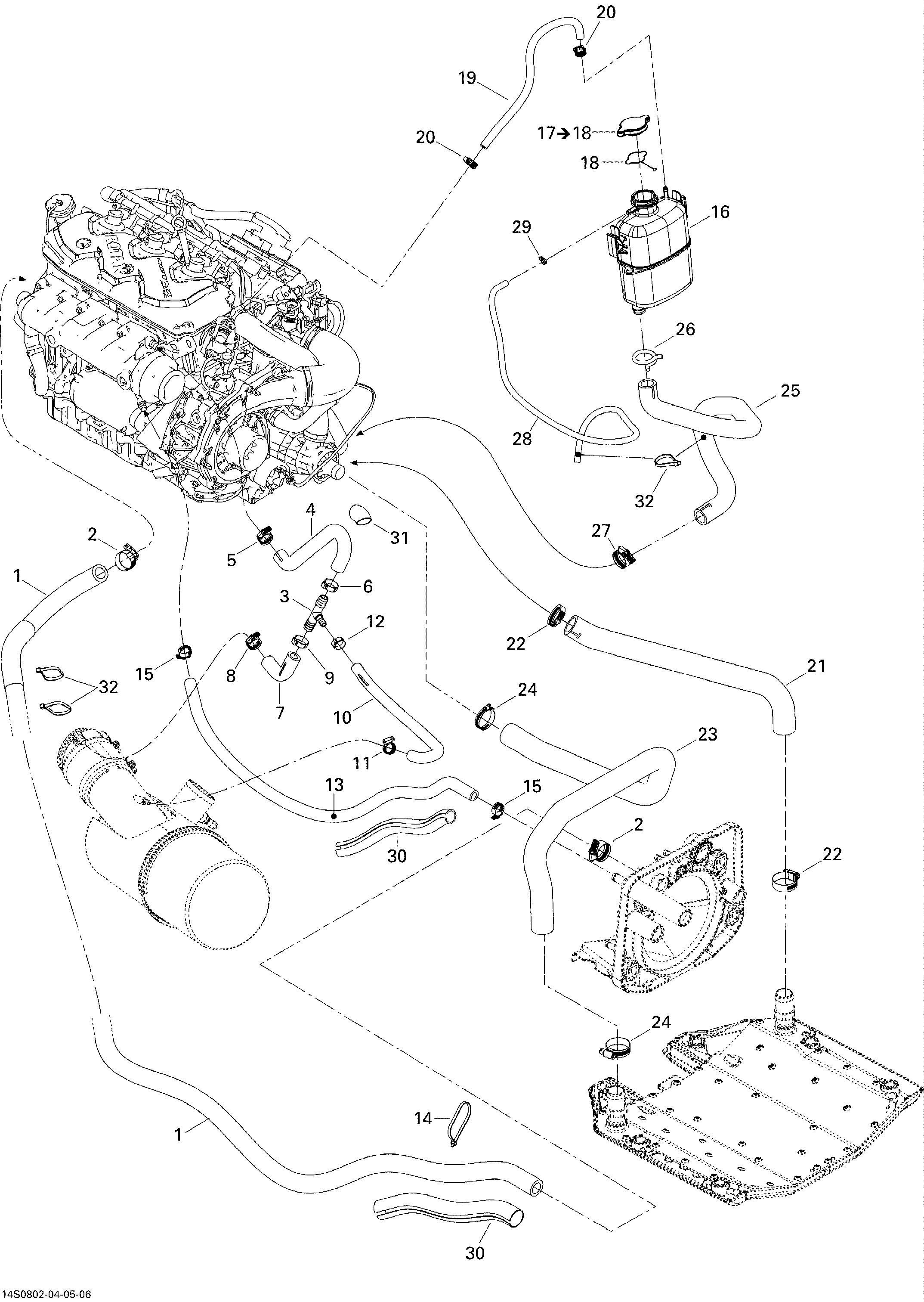

01- Cooling System для BRP WAKE 215 - 2008
-
№АртикулНазвание
-
1276000138 Formed HoseFormed Hose
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3293710116 T-FittingT-Fitting
-
4276000191 Formed HoseFormed Hose
-
5293650172 Tridon ClampTridon Clamp
-
6293650012 Oetiker ClampOetiker Clamp
-
7276000137 Lower Formed HoseLower Formed Hose
-
8293650172 Tridon ClampTridon Clamp
-
9293650012 Oetiker ClampOetiker Clamp
-
10276000209 Formed HoseFormed Hose
-
11293650171 Tridon Hose ClampTridon Hose Clamp
-
12293650030 Oetiker ClampOetiker Clamp
-
13276000151 Hose 12.5 mmHose 12.5 mm
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
15293650172 Tridon ClampTridon Clamp
-
16276000086 Coolant TankCoolant Tank
-
17276000100 Pressure Cap Ass'y. Includes 17 to 18Pressure Cap Ass'y. Includes 17 to 18
-
18276000127 LatchLatch
-
19275500549 Hose 1/4''Hose 1/4''
-
20293650170 Hose ClampHose Clamp
-
21276000153 RH Radiator HoseRH Radiator Hose
-
22293650045 Tridon Gear ClampTridon Gear Clamp
-
23276000154 LH Radiator HoseLH Radiator Hose
-
24293650045 Tridon Gear ClampTridon Gear Clamp
-
25276000144 Formed Return HoseFormed Return Hose
-
26293650115 Spring ClampSpring Clamp
-
27293650019 Tridon ClampTridon Clamp
-
28415080200 Polyurethane HosePolyurethane Hose
-
29293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
30409902200 Tubing 25 mmTubing 25 mm
-
31276000162 Shrink TubingShrink Tubing
-
32414115200 Tie-Rap 180 mmTie-Rap 180 mm
