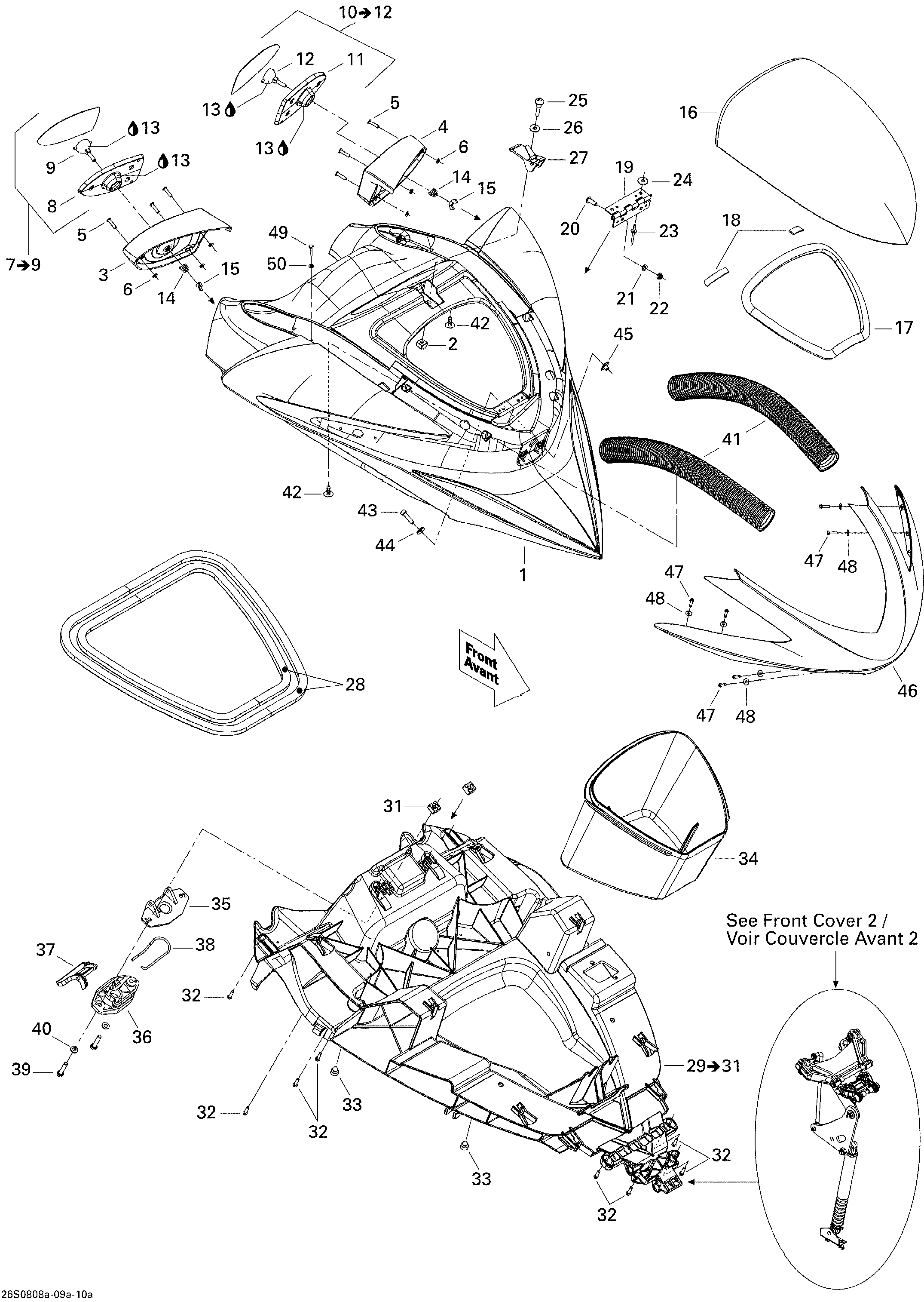

09- Front Storage Compartment 1 для BRP RXP 215 - 2008
-
№АртикулНазвание
-
1269501592 Upper Storage CoverUpper Storage Cover
-
2269501166 Nut Housing Ass'yNut Housing Ass'y
-
3269501593 RH Mirror HousingRH Mirror Housing
-
4269501594 LH Mirror HousingLH Mirror Housing
-
5293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
6213200016 Flat Washer, EmhartFlat Washer, Emhart
-
7269501328 RH Mirror. Includes 7 to 9RH Mirror. Includes 7 to 9
-
8269500697 Frame MirrorFrame Mirror
-
9269500079 Mirror Ball JointMirror Ball Joint
-
10269501634 LH Mirror. Includes 10 to 12LH Mirror. Includes 10 to 12
-
11269500697 Frame MirrorFrame Mirror
-
12269500079 Mirror Ball JointMirror Ball Joint
-
13293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
14269500453 Mirror SpringMirror Spring
-
15232661600 Wing Nut M6Wing Nut M6
-
16269501629 Access CoverAccess Cover
-
17293250087 GasketGasket
-
18293200020 Seal, MeterSeal, Meter
-
19269500338 HingeHinge
-
20205451660 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
21234051600 Flat Washer M5Flat Washer M5
-
22232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
23204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
24234052600 Flat Washer 5 mmFlat Washer 5 mm
-
25291001242 Anchoring StudAnchoring Stud
-
26234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27269501487 LatchLatch
-
28293200093 Neoprene SealNeoprene Seal
-
29269501379 Lower Storage Cover. Includes 29 to 31Lower Storage Cover. Includes 29 to 31
-
31269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
32241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
33293830005 Rubber Plug, BlackRubber Plug, Black
-
34269501133 Storage BoxStorage Box
-
35269700076 Latch CoverLatch Cover
-
36269000015 Latch BaseLatch Base
-
37269700077 Latch LeverLatch Lever
-
38269700017 Latch SpringLatch Spring
-
39207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
40234061600 Flat Washer M6Flat Washer M6
-
41291002489 Ventilaltion Hose (Black)Ventilaltion Hose (Black)
-
42293730011 Dart, BlackDart, Black
-
43205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
44234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
45293100003 Nut M6Nut M6
-
46269501597 Front GrillFront Grill
-
47241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
48234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
49243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
50234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
