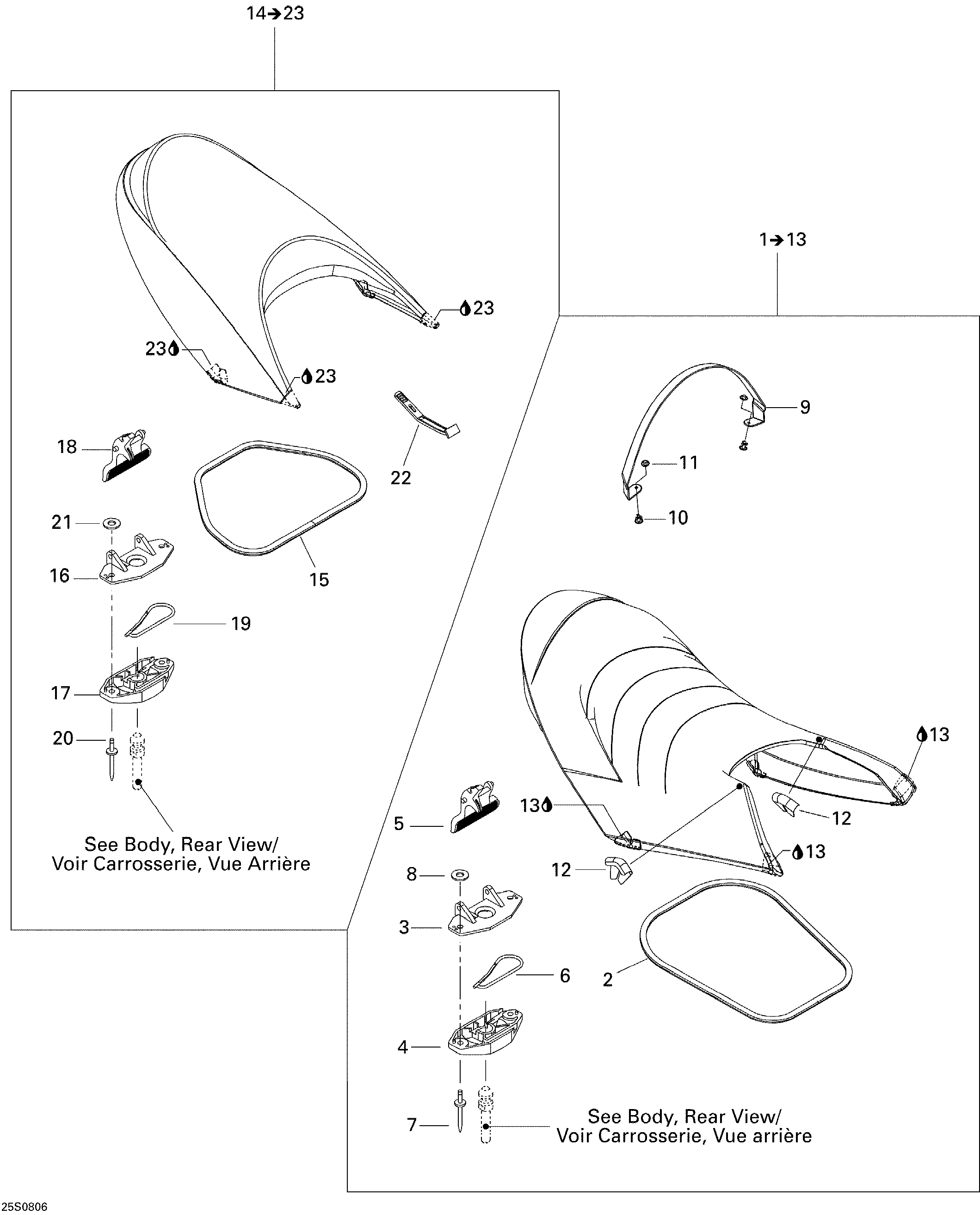

09- Seat для BRP RXT 215 - 2008
-
№АртикулНазвание
-
1269001441 Front Seat Ass'y, Black/Silver. Includes 1 to 13, Deep BlackFront Seat Ass'y, Black/Silver. Includes 1 to 13, Deep Black
-
1269001443 Front Seat Ass'y, Red/White. Includes 1 to 13, Viper RedFront Seat Ass'y, Red/White. Includes 1 to 13, Viper Red
-
2293200107 Seal, MeterSeal, Meter
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150151 Rivet 1/4''Rivet 1/4''
-
8234061600 Flat Washer M6Flat Washer M6
-
9269001335 Seat Strap. Deep BlackSeat Strap. Deep Black
-
9269001445 Seat Strap. Viper RedSeat Strap. Viper Red
-
10293150067 RivetRivet
-
11293720067 GrommetGrommet
-
12269001088 Seat Corner, Silver. Deep BlackSeat Corner, Silver. Deep Black
-
13413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
14269001434 Rear Seat Ass'y, Red. Includes 14 to 23, Viper RedRear Seat Ass'y, Red. Includes 14 to 23, Viper Red
-
14269001453 Rear Seat Ass'y, Silver. Includes 14 to 23, Deep BlackRear Seat Ass'y, Silver. Includes 14 to 23, Deep Black
-
15293200107 Seal, MeterSeal, Meter
-
16269700076 Latch CoverLatch Cover
-
17269000015 Latch BaseLatch Base
-
18269700077 Latch LeverLatch Lever
-
19269700017 Latch SpringLatch Spring
-
20293150151 Rivet 1/4''Rivet 1/4''
-
21234061600 Flat Washer M6Flat Washer M6
-
22269500408 StrapStrap
-
23413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
