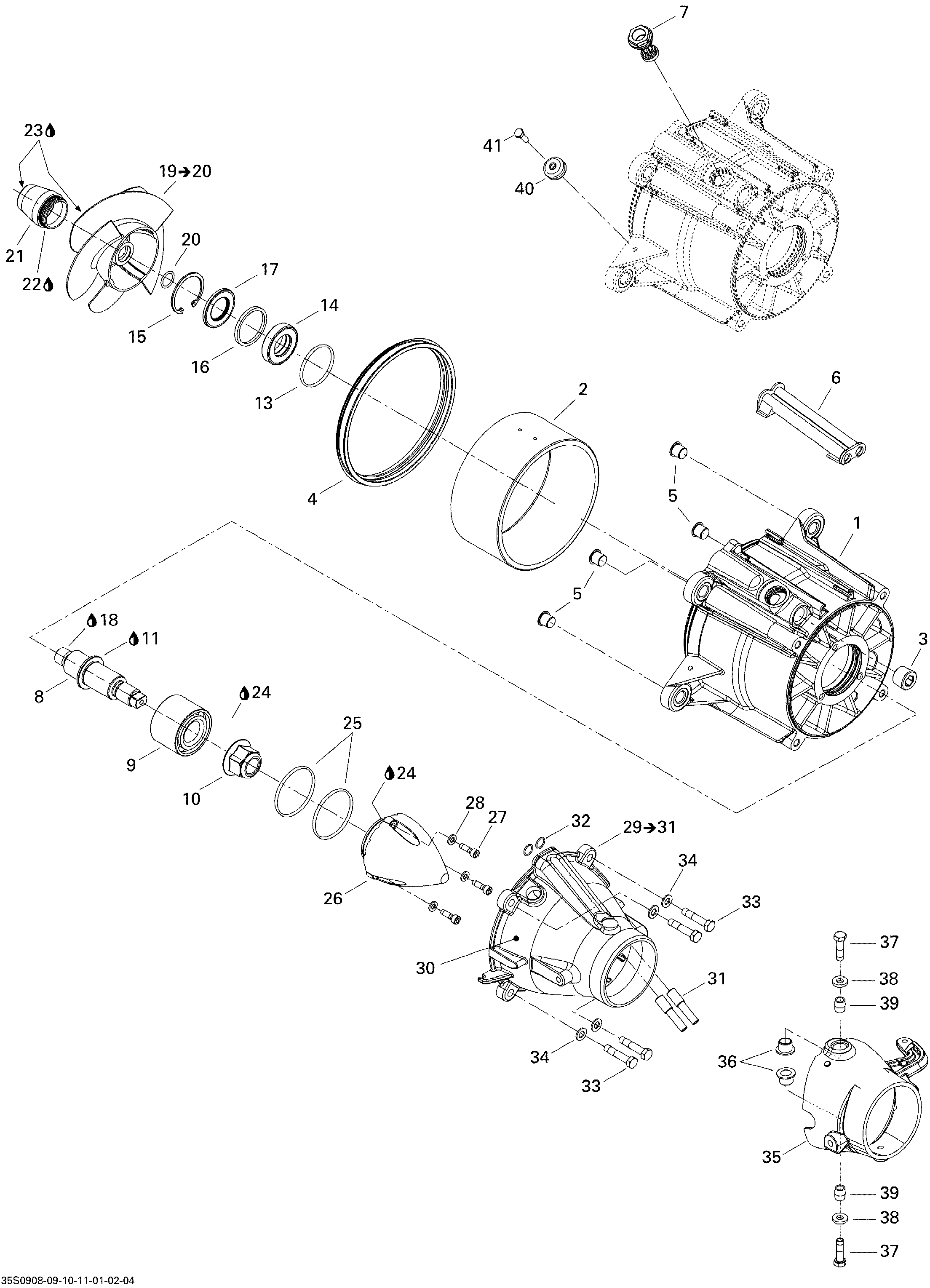

05- Pump для BRP GTI SE 130 - 2009
![](/wa-data/public/shop/sheme/bombardier/watercraft/eae28f7f-1492-4d03-8699-c026748380da.png)
-
№АртикулНазвание
-
1267000417 Impeller HousingImpeller Housing
-
2267000419 Wear RingWear Ring
-
3267000469 PlugPlug
-
4293200087 Neoprene SealNeoprene Seal
-
5267000093 BushingBushing
-
6271000785 Water OutletWater Outlet
-
7267000282 PlugPlug
-
8267000388 Impeller ShaftImpeller Shaft
-
9267000030 Angled BearingAngled Bearing
-
10250100104 Elastic Flange NutElastic Flange Nut
-
11293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
13293300090 O-RingO-Ring
-
14293200086 Oil SealOil Seal
-
15293370038 CirclipCirclip
-
16271001393 SpacerSpacer
-
17293200089 Oil SealOil Seal
-
18293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
19267000431 Stainless Steel Impeller. Includes 19 to 20Stainless Steel Impeller. Includes 19 to 20
-
20293300114 O-RingO-Ring
-
21267000206 Impeller BootImpeller Boot
-
22293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
23293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
24293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
25293300086 O-RingO-Ring
-
26267000428 Impeller CoverImpeller Cover
-
27205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
28234061600 Flat Washer M6Flat Washer M6
-
30267000289 VenturiVenturi
-
31271001133 Siphon TubeSiphon Tube
-
32293300013 O-RingO-Ring
-
33207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
34234081600 Flat Washer 8 mmFlat Washer 8 mm
-
35267000140 Steering Nozzle, BlackSteering Nozzle, Black
-
36293900001 Venturi BushingVenturi Bushing
-
37207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
38293050001 Flat WasherFlat Washer
-
39271000122 Steering Nozzle SleeveSteering Nozzle Sleeve
-
40271001487 Anode ZincAnode Zinc
-
41207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
