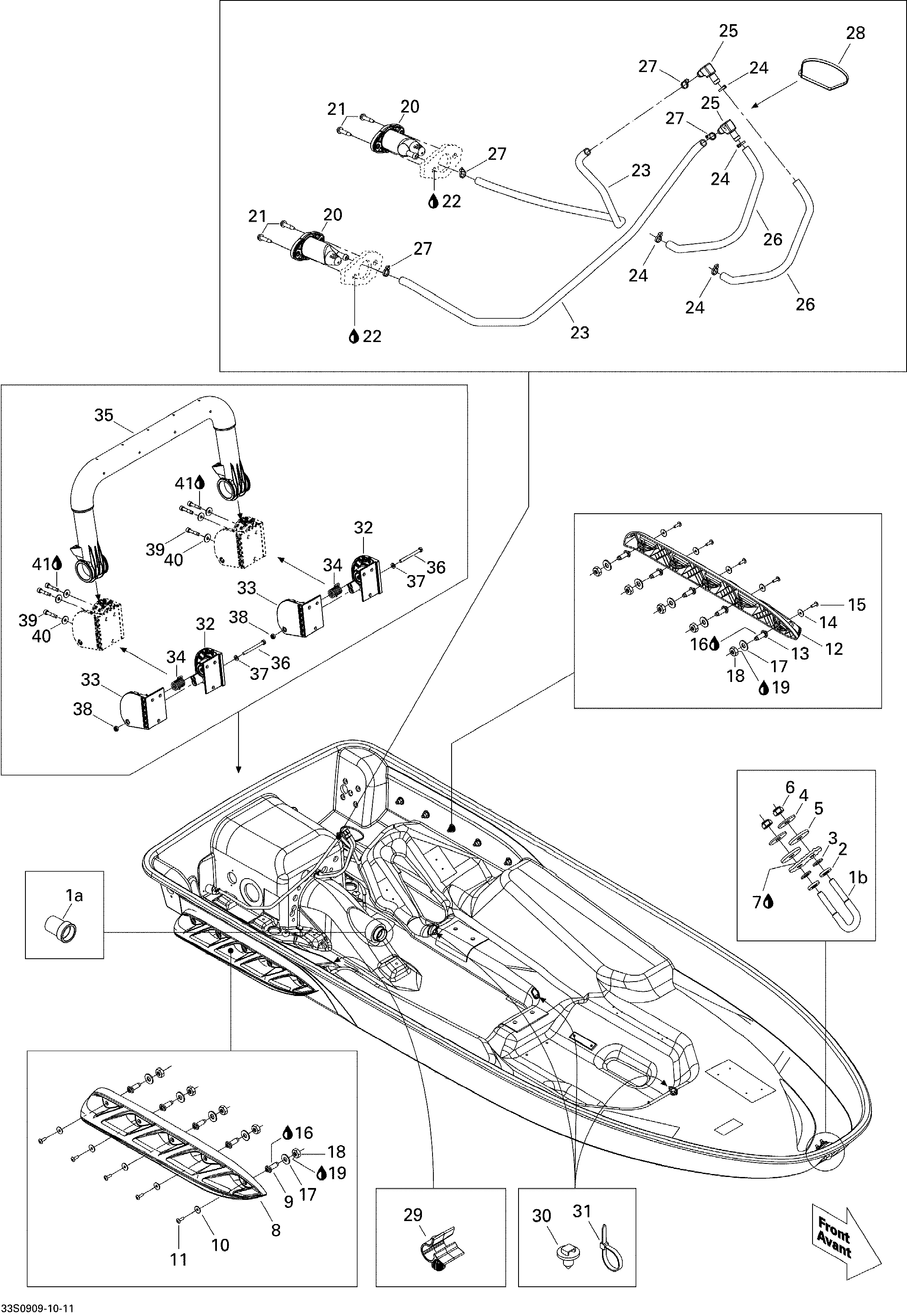

09- Hull для BRP GTI SE 155 - 2009
-
№АртикулНазвание
-
1a292000975 Hull Insert, 41 mmHull Insert, 41 mm
-
1b292000933 U-ClampU-Clamp
-
2293050001 Flat WasherFlat Washer
-
3234081100 Flat Washer 8 mmFlat Washer 8 mm
-
4250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
5293830037 Rubber WasherRubber Washer
-
6232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8292001174 RH SponsonRH Sponson
-
9292001046 Sponson AdapterSponson Adapter
-
10250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
11250000299 Torx Screw M6.6 x 20, StainlessTorx Screw M6.6 x 20, Stainless
-
12292001175 LH SponsonLH Sponson
-
13292001046 Sponson AdapterSponson Adapter
-
14250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
15250000299 Torx Screw M6.6 x 20, StainlessTorx Screw M6.6 x 20, Stainless
-
16296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
17250200053 Flat Washer M12Flat Washer M12
-
18250100078 Elastic Stop Nut M12Elastic Stop Nut M12
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20292001252 Drain PlugDrain Plug
-
21211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
22296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
23275000007 Hose 8 mmHose 8 mm
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293710117 Elbow Fitting 90°Elbow Fitting 90°
-
26415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
27293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
28293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
29275500528 Hose RetainerHose Retainer
-
30293730040 Mount DartMount Dart
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32292001201 Support ASupport A
-
33292001202 Support BSupport B
-
34292001259 SpringSpring
-
35292001204 Overmolded BarOvermolded Bar
-
36207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
37234061600 Flat Washer M6Flat Washer M6
-
38232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
39250000386 Socket Screw M6 X 30, Scotch GripSocket Screw M6 X 30, Scotch Grip
-
40234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
41293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
