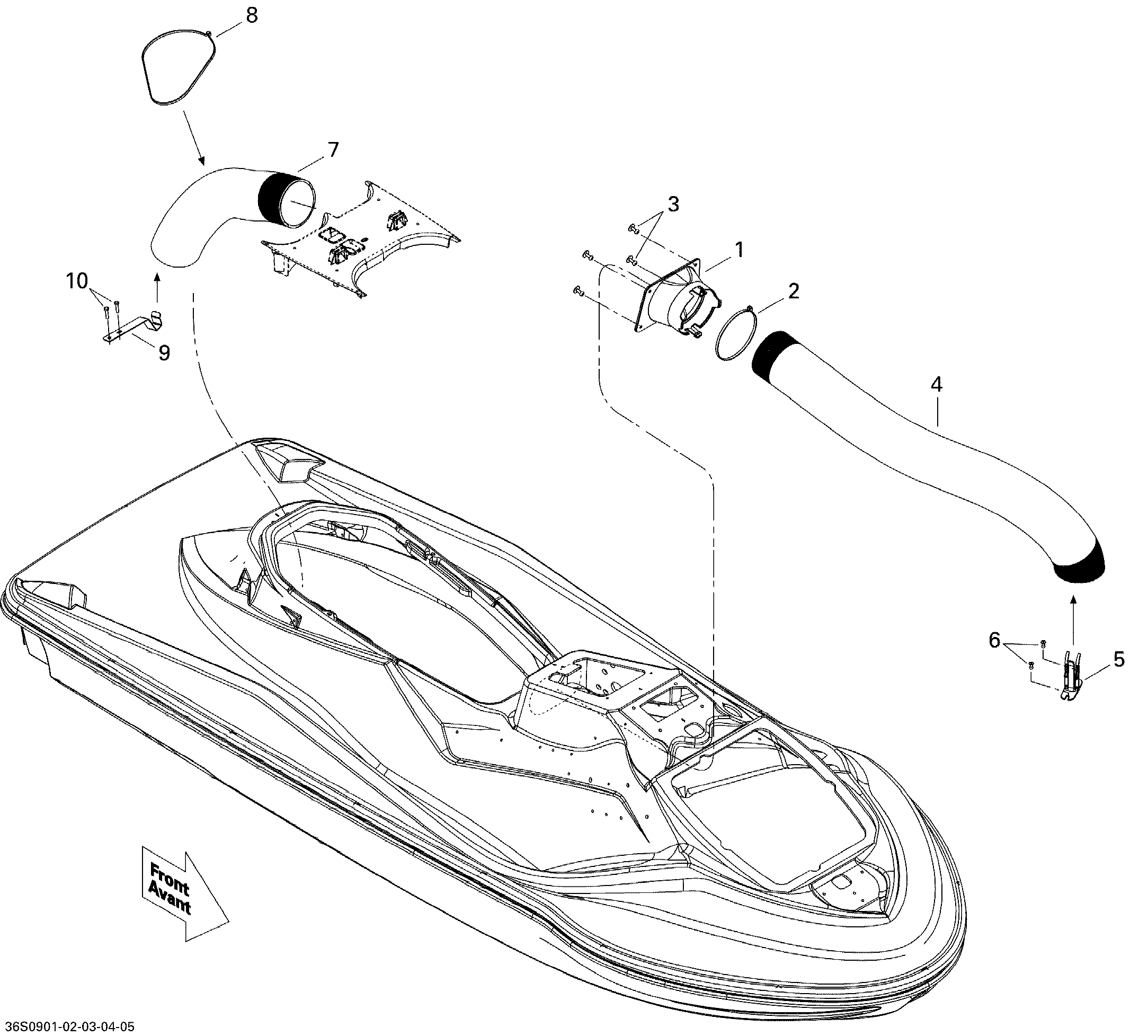

09- Ventilation для BRP GTX 215 - 2009
-
№АртикулНазвание
-
1291002547 Front Air Collector Ass'yFront Air Collector Ass'y
-
2293750047 Tie Rap, 533MMTie Rap, 533MM
-
3293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
4291002549 Flexible HoseFlexible Hose
-
5291002527 Hose ClipHose Clip
-
6293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
7291002528 Flexible HoseFlexible Hose
-
8293750047 Tie Rap, 533MMTie Rap, 533MM
-
9291002627 Hose SupportHose Support
-
10243042060 Hex. Plastite Screw M4, 8 X 20Hex. Plastite Screw M4, 8 X 20
