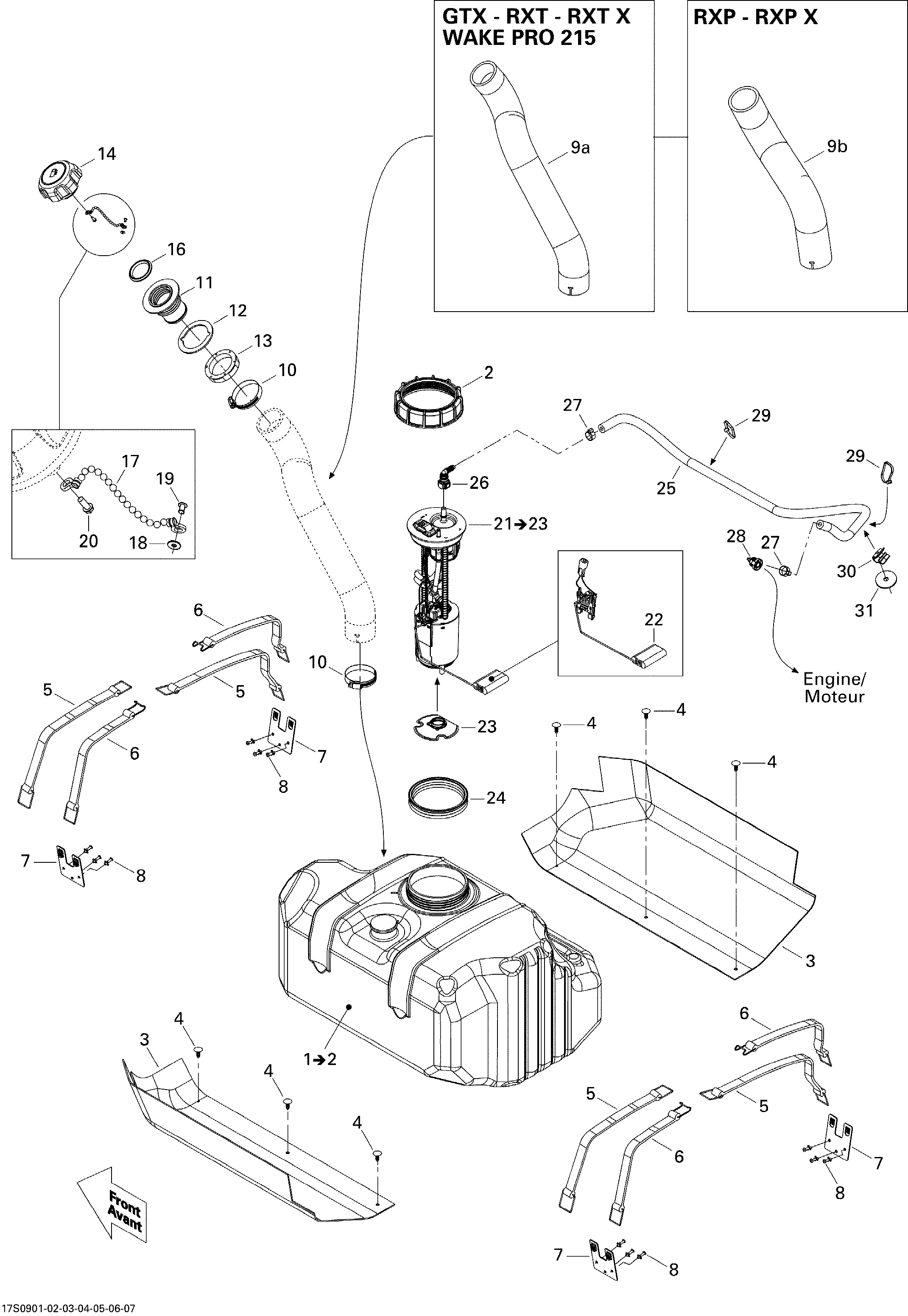

02- Fuel System для BRP RXP 215 - 2009
-
№АртикулНазвание
-
1275500742 Fuel Tank. Includes 1 to 2Fuel Tank. Includes 1 to 2
-
2250100062 Special Nut M130Special Nut M130
-
3293830094 Rubber PadRubber Pad
-
4293730011 Dart, BlackDart, Black
-
5293850067 StrapStrap
-
6293850038 Fuel Tank StrapFuel Tank Strap
-
7293850066 Strap ClipStrap Clip
-
8293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
9b275500605 Fuel Filler Neck HoseFuel Filler Neck Hose
-
10293650081 Norma ClampNorma Clamp
-
11275500231 Filler Neck, FuelFiller Neck, Fuel
-
12293250029 GasketGasket
-
13211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
14275500710 Fuel tank CapFuel tank Cap
-
16293250211 GasketGasket
-
17275500507 Fuel Cap ChainFuel Cap Chain
-
18234032600 Flat Washer 3 mmFlat Washer 3 mm
-
19390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
20241140060 Screw K40 X 10Screw K40 X 10
-
21275500734 Fuel Pump. Includes 21 to 23Fuel Pump. Includes 21 to 23
-
22270600103 Sensor LeverSensor Lever
-
23270600108 Fuel FilterFuel Filter
-
24293250173 GasketGasket
-
25275500768 HoseHose
-
26275500700 Quick Attach 90°Quick Attach 90°
-
27293650140 Oetiker ClampOetiker Clamp
-
28293710105 Elbow Fitting 90°Elbow Fitting 90°
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
