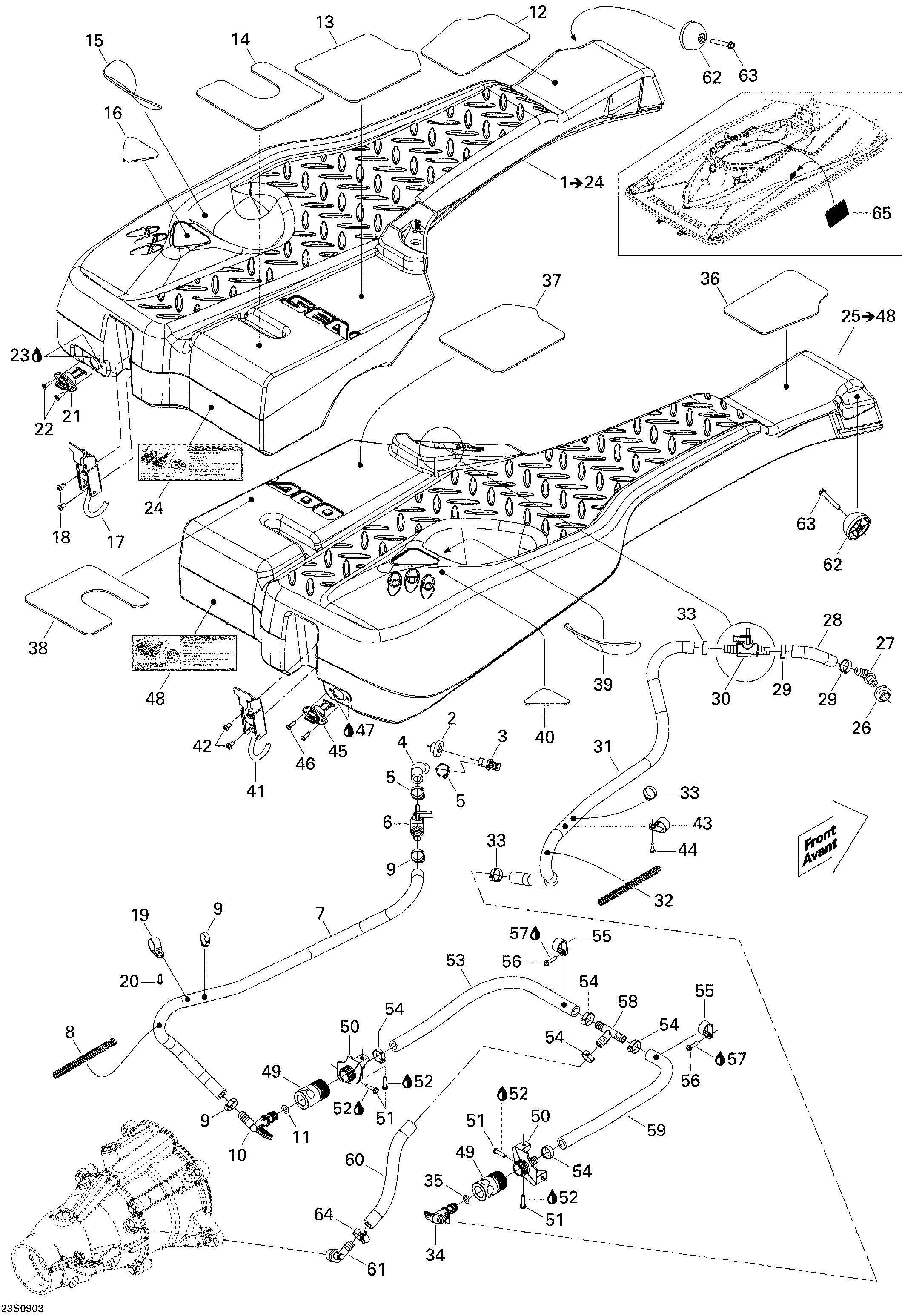

09- Ballast Tank для BRP Wake PRO 215 - 2009
-
№АртикулНазвание
-
1291002637 LH Ballast Ass'y. Includes 1 to 24LH Ballast Ass'y. Includes 1 to 24
-
2570273900 GrommetGrommet
-
3414523600 Elbow FittingElbow Fitting
-
4276000151 Hose 12.5 mmHose 12.5 mm
-
5293650012 Oetiker ClampOetiker Clamp
-
6293710126 Ball ValveBall Valve
-
7276000151 Hose 12.5 mmHose 12.5 mm
-
8293450280 Hose InsertHose Insert
-
9293650012 Oetiker ClampOetiker Clamp
-
10293710127 Fitting CouplingFitting Coupling
-
11293300137 O-RingO-Ring
-
12291002649 LH Front CarpetLH Front Carpet
-
13291002650 LH Center CarpetLH Center Carpet
-
14291002651 LH Rear CarpetLH Rear Carpet
-
15291002663 LH Footrest CarpetLH Footrest Carpet
-
16291002664 LH WAKE CarpetLH WAKE Carpet
-
17293650189 Toggle ClampToggle Clamp
-
18205461060 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
19293650188 Cable ClipCable Clip
-
20211000021 Pan Head Phillips Screw 10 X 7/8''Pan Head Phillips Screw 10 X 7/8''
-
21292000187 Drain PlugDrain Plug
-
22205451060 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
23296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
24219902984 Warning Decal, Ballast Tanks. English VersionWarning Decal, Ballast Tanks. English Version
-
25291002638 RH Ballast Ass'y. Includes 25 to 48RH Ballast Ass'y. Includes 25 to 48
-
26570273900 GrommetGrommet
-
27414523600 Elbow FittingElbow Fitting
-
28276000151 Hose 12.5 mmHose 12.5 mm
-
29293650012 Oetiker ClampOetiker Clamp
-
30293710126 Ball ValveBall Valve
-
31276000151 Hose 12.5 mmHose 12.5 mm
-
32293450280 Hose InsertHose Insert
-
33293650012 Oetiker ClampOetiker Clamp
-
34293710127 Fitting CouplingFitting Coupling
-
35293300137 O-RingO-Ring
-
36291002652 RH Front CarpetRH Front Carpet
-
37291002653 RH Center CarpetRH Center Carpet
-
38291002662 RH Rear CarpetRH Rear Carpet
-
39291002665 RH Footrest CarpetRH Footrest Carpet
-
40291002666 RH WAKE CarpetRH WAKE Carpet
-
41293650189 Toggle ClampToggle Clamp
-
42205461060 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
43293650188 Cable ClipCable Clip
-
44211000021 Pan Head Phillips Screw 10 X 7/8''Pan Head Phillips Screw 10 X 7/8''
-
45292000187 Drain PlugDrain Plug
-
46205451060 Socket Head ScrewSocket Head Screw
-
47296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
48219902984 Warning Decal, Ballast Tanks. English VersionWarning Decal, Ballast Tanks. English Version
-
49293710077 Quick FittingQuick Fitting
-
50293730046 Coupling SupportCoupling Support
-
51211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
52296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
53276000151 Hose 12.5 mmHose 12.5 mm
-
54293650012 Oetiker ClampOetiker Clamp
-
55293650188 Cable ClipCable Clip
-
56211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
57296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
58293710122 T-FittingT-Fitting
-
59276000151 Hose 12.5 mmHose 12.5 mm
-
60276000151 Hose 12.5 mmHose 12.5 mm
-
61293710093 Elbow Fitting 90°Elbow Fitting 90°
-
62269700106 Half SphereHalf Sphere
-
63243164560 Plastite Screw Hex. M6.81 x 45Plastite Screw Hex. M6.81 x 45
-
64293650149 Norma ClampNorma Clamp
-
65291002806 Protection PadProtection Pad
