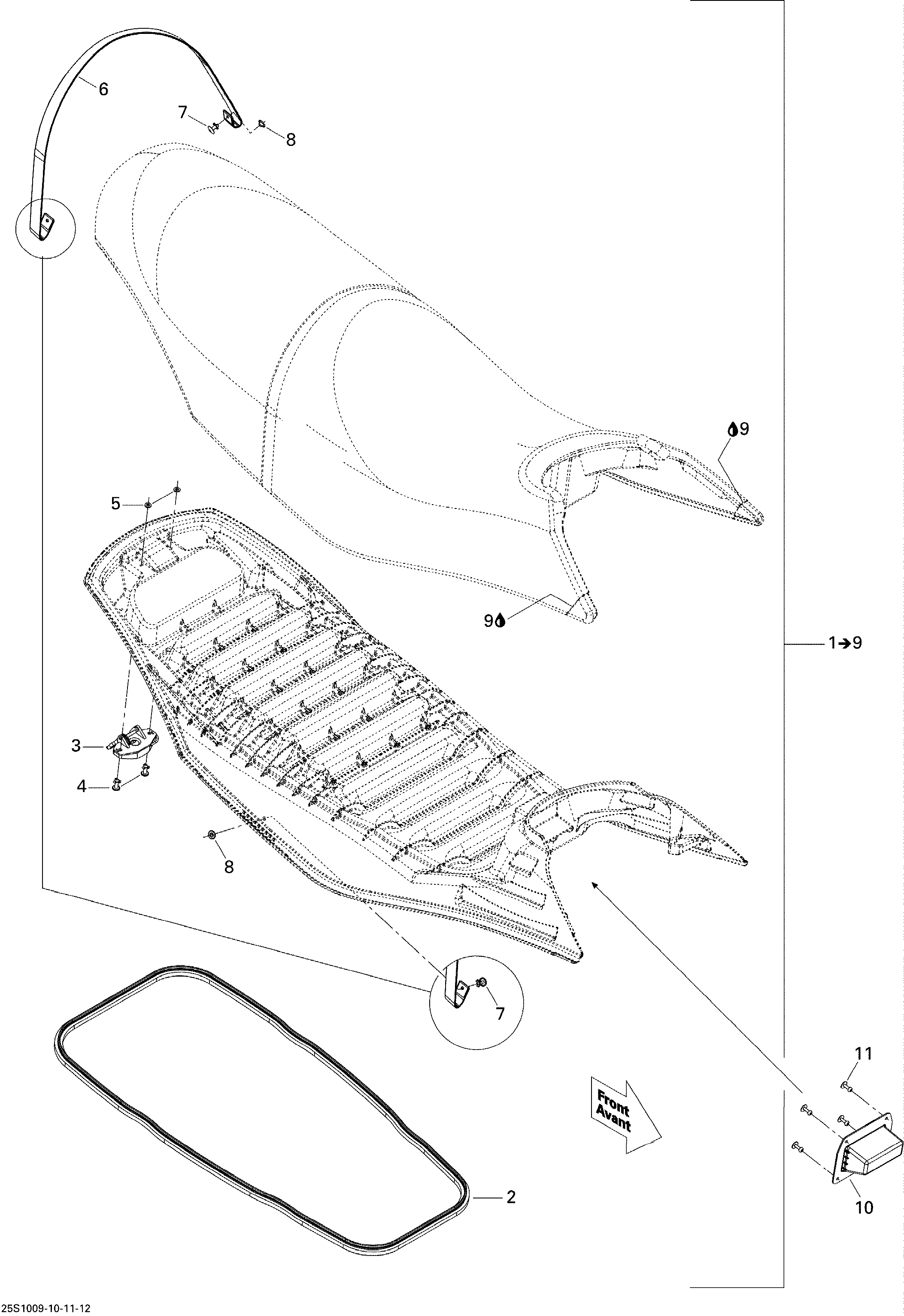

09- Seat для BRP GTI SE 130 - 2010
-
№АртикулНазвание
-
1269001900 Seat Ass'y. Includes 1 to 9Seat Ass'y. Includes 1 to 9
-
2293200124 SealSeal
-
3269700109 Latch Ass'yLatch Ass'y
-
4293150151 Rivet 1/4''Rivet 1/4''
-
5234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6269001555 Seat StrapSeat Strap
-
7293150067 RivetRivet
-
8293720067 GrommetGrommet
-
9413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
10269001389 Seat ReceptacleSeat Receptacle
-
11293150123 Pop Rivet 3/16''Pop Rivet 3/16''
