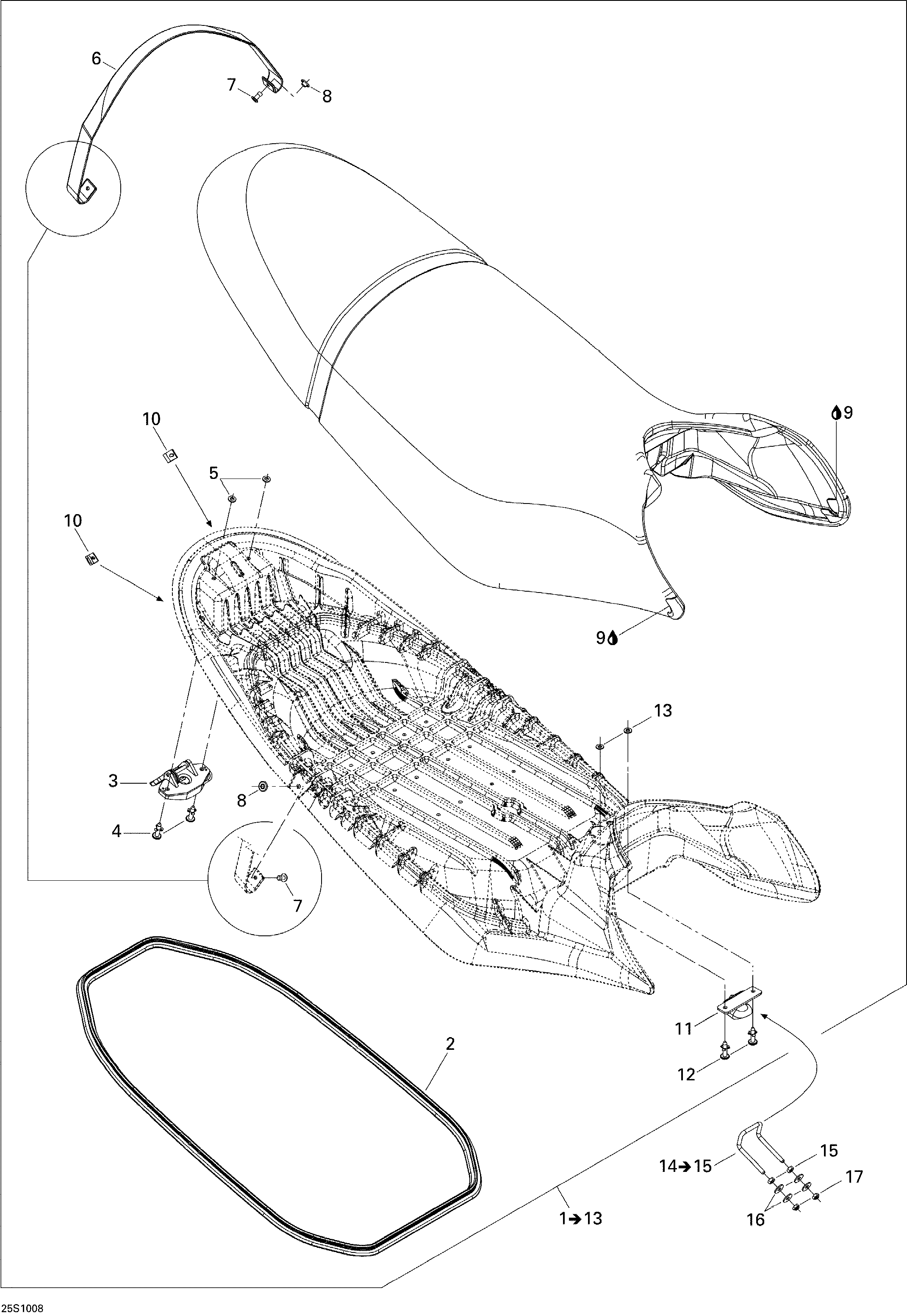

09- Seat для BRP RXP-X 255 and 255 RS - 2010
-
№АртикулНазвание
-
1269001655 Seat Ass'y. Includes 1 to 13Seat Ass'y. Includes 1 to 13
-
2293200124 SealSeal
-
3269700109 Latch Ass'yLatch Ass'y
-
4293150151 Rivet 1/4''Rivet 1/4''
-
5234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6269001688 Seat Strap, RXPSeat Strap, RXP
-
7293150067 RivetRivet
-
8293720067 GrommetGrommet
-
9413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
10250100032 NutNut
-
11291002012 Seat HookSeat Hook
-
12293150151 Rivet 1/4''Rivet 1/4''
-
13234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
14291001937 U-Clamp Rod. Includes 14 to 15U-Clamp Rod. Includes 14 to 15
-
15232061600 Hex. Nut M6Hex. Nut M6
-
16234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
17232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
