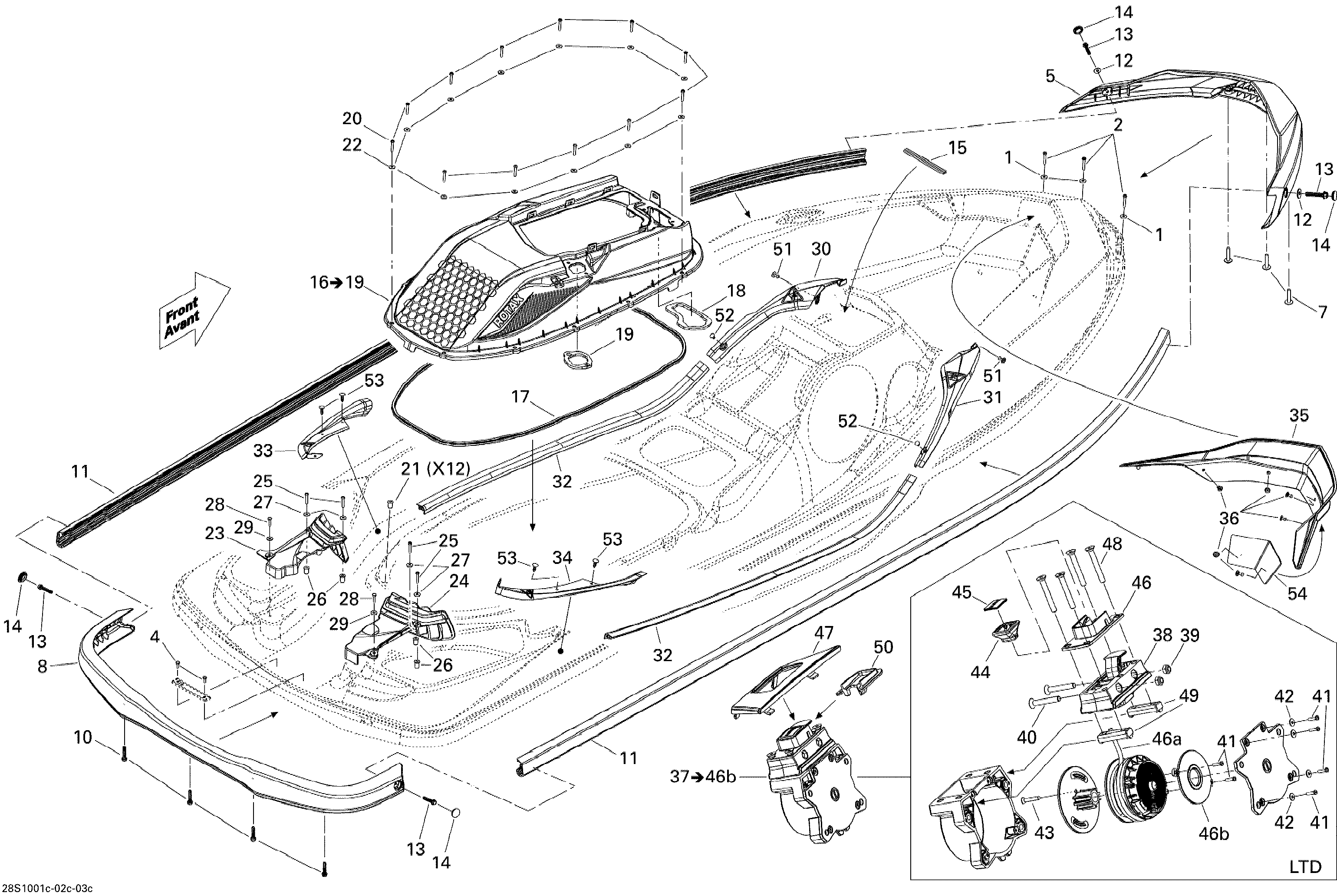

09- Body, Rear View 3 для BRP RXT iS 260 - 2010
-
№АртикулНазвание
-
1234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
2241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
4211000106 Hex. Forming Screw M6 X 16Hex. Forming Screw M6 X 16
-
5291002588 Front BumberFront Bumber
-
7250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
8291002592 Rear BumberRear Bumber
-
10250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
11291003050 Lateral BumperLateral Bumper
-
13250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
14291002744 Bumber CapBumber Cap
-
15271000110 Protection TrimProtection Trim
-
16291002797 Deck Extension Ass'y, Yellow. Includes 16 to 19Deck Extension Ass'y, Yellow. Includes 16 to 19
-
17293250185 Lip SealLip Seal
-
18293250205 Lip SealLip Seal
-
19293250209 Lip SealLip Seal
-
20205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
21250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
22234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23291002658 LH Rear GrillLH Rear Grill
-
24291002698 RH Rear GrillRH Rear Grill
-
25205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
26250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
27234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
28207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
29234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
30291002837 LH Front Scraper JointLH Front Scraper Joint
-
31291002838 RH Front Scraper JointRH Front Scraper Joint
-
32291002839 Midle Sraper JointMidle Sraper Joint
-
33291002696 LH Rear Scraper JointLH Rear Scraper Joint
-
34291002697 RH Rear Scraper JointRH Rear Scraper Joint
-
35291003081 Body DeflectorBody Deflector
-
36293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
47291002756 Front Rewinder CapFront Rewinder Cap
-
51293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
52293730010 Dart, BlackDart, Black
-
53293730006 Dart, BlackDart, Black
-
54293250231 GasketGasket
