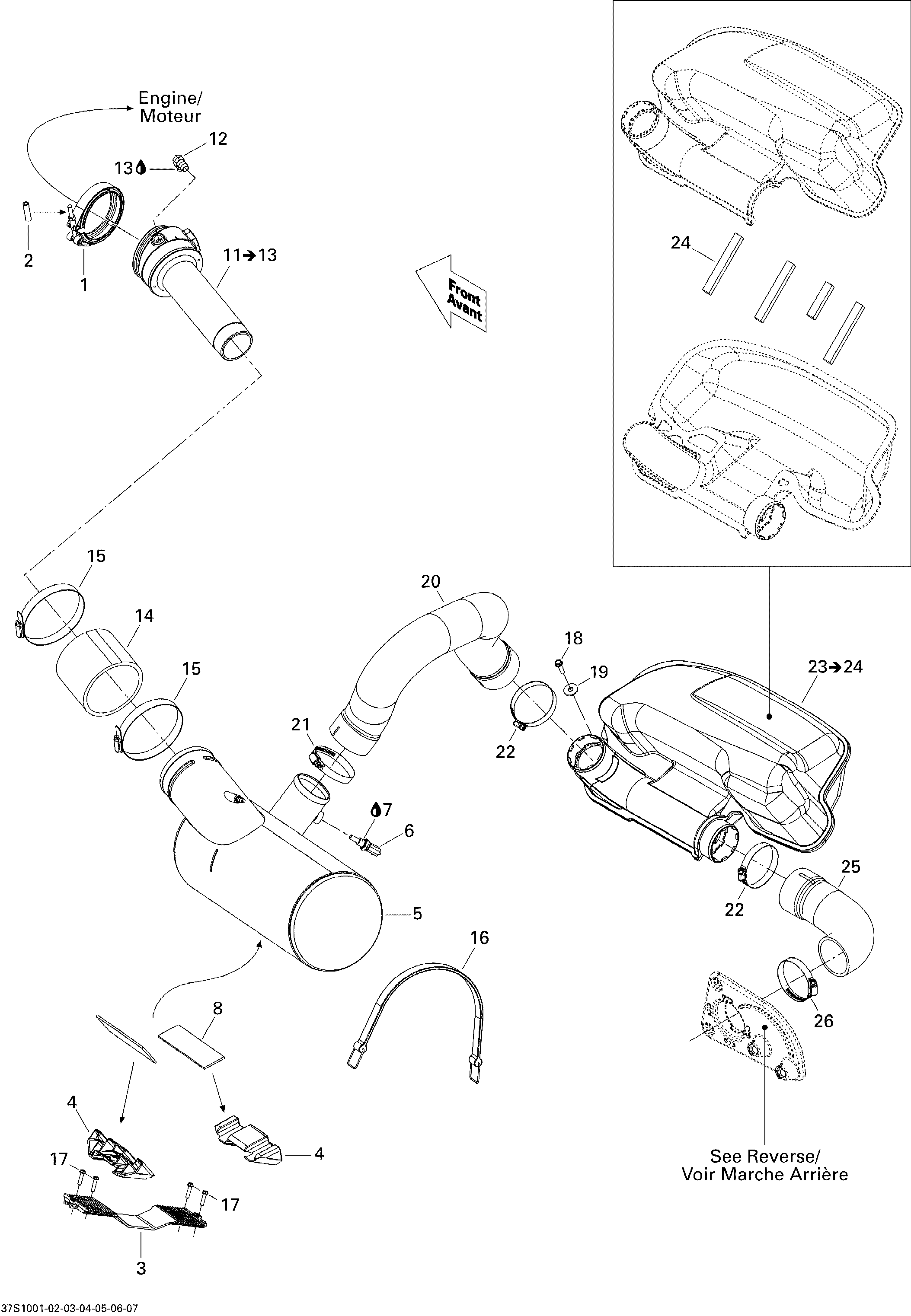

01- Exhaust System для BRP Wake PRO 215 - 2010
-
№АртикулНазвание
-
1274001417 Exhaust ClampExhaust Clamp
-
2415080200 Hose, PolyurethaneHose, Polyurethane
-
3274001357 Exhaust SupportExhaust Support
-
4274001358 StopperStopper
-
5274001384 MufflerMuffler
-
6278001016 Temperature SensorTemperature Sensor
-
7293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
8293830126 Rubber PadRubber Pad
-
11274001354 Head Pipe Ass'y. Includes 11 to 13Head Pipe Ass'y. Includes 11 to 13
-
12293700023 Elbow Fitting 90°Elbow Fitting 90°
-
13293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
14274001348 Exhaust HoseExhaust Hose
-
15293650202 Gear ClampGear Clamp
-
16293850093 StrapStrap
-
17293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
18243162560 Hex. Flanged Screw M6.3 X 25, PlastiteHex. Flanged Screw M6.3 X 25, Plastite
-
19234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
20274001422 Exhaust Hose, FrontExhaust Hose, Front
-
21293650179 Tridon Gear ClampTridon Gear Clamp
-
22293650179 Tridon Gear ClampTridon Gear Clamp
-
23274001366 Resonator. Includes 23 to 24Resonator. Includes 23 to 24
-
24293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
25274001423 Exhaust Hose, RearExhaust Hose, Rear
-
26293650179 Tridon Gear ClampTridon Gear Clamp
