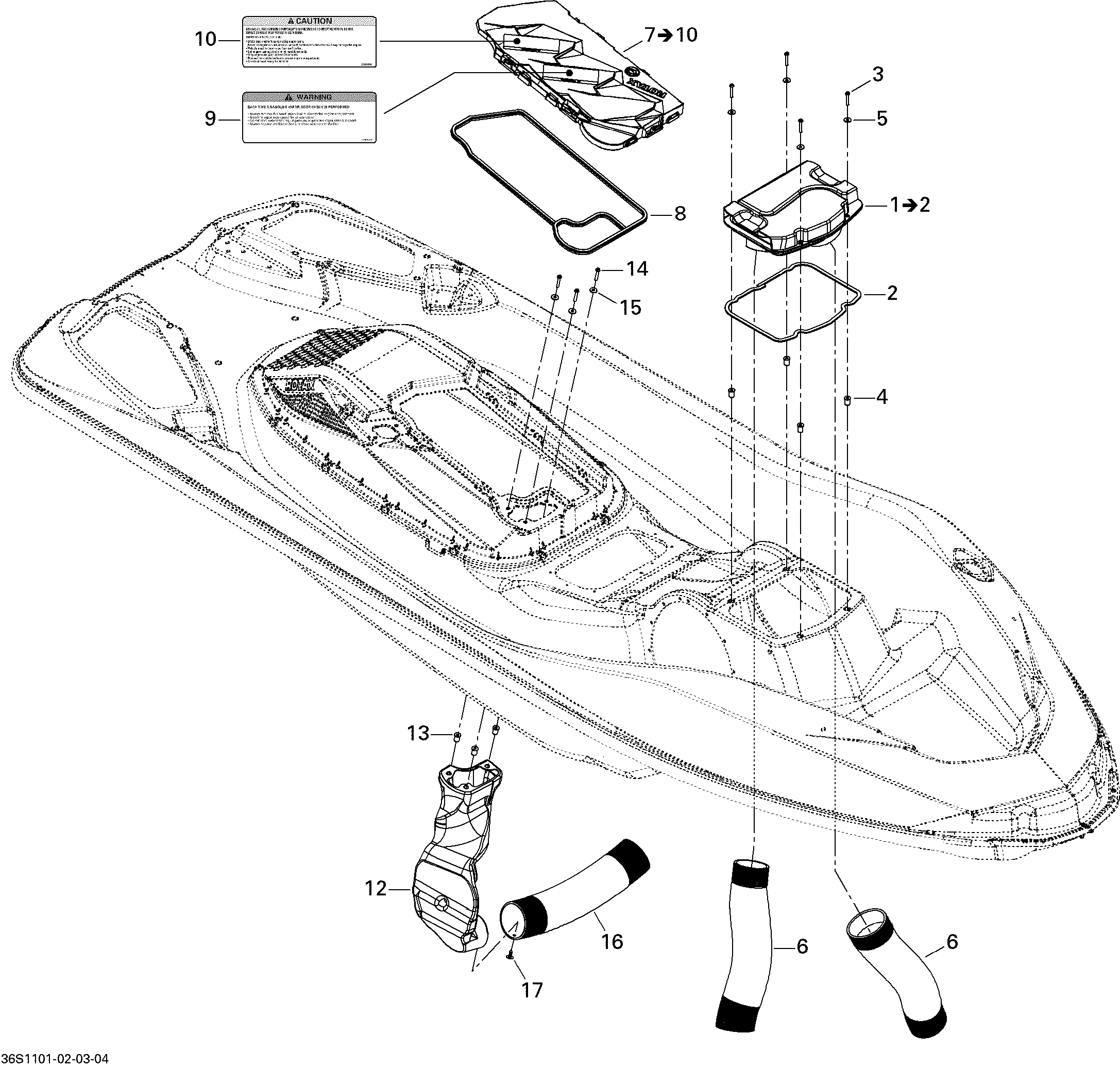

09- Ventilation для BRP GTX LTD iS 260 - 2011
-
№АртикулНазвание
-
1237000036 Front Ventilation Box Ass'y. Includes 1 to 2Front Ventilation Box Ass'y. Includes 1 to 2
-
2293250214 GasketGasket
-
3205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
4250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
5234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6237000030 Vent Hose 3.5''Vent Hose 3.5''
-
7237000028 Rear Ventilation Box Ass'y. Includes 7 to 10Rear Ventilation Box Ass'y. Includes 7 to 10
-
8293250213 GasketGasket
-
9219903090 Warning Decal, Gasoline VaporWarning Decal, Gasoline Vapor
-
10219903084 Caution Decal, Engine OilCaution Decal, Engine Oil
-
12237000034 Rear Vent DuctRear Vent Duct
-
13250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
14205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
15234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
16237000031 Vent Hose 3.5''Vent Hose 3.5''
-
17293730011 Dart, BlackDart, Black
