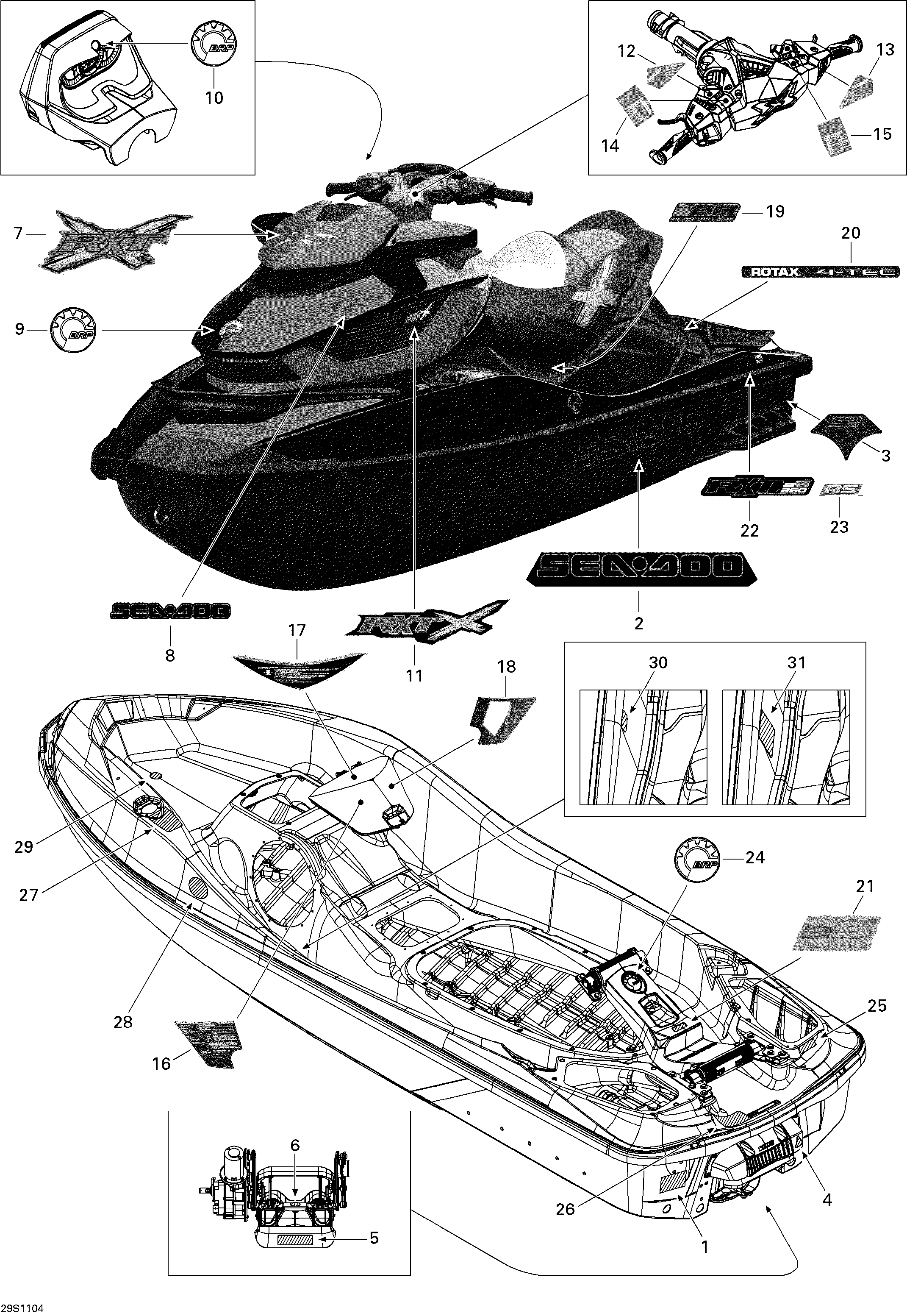

09- Decals для BRP RXT aS X & aS XRS 260 - 2011
-
№АртикулНазвание
-
1219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
2219903164 Hull Decal, Sea-DooHull Decal, Sea-Doo
-
3219903052 Decal, S3 HULLDecal, S3 HULL
-
4219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
5219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
6219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
7219903165 Decal, RXTDecal, RXT
-
8219903166 Decal, Sea-DooDecal, Sea-Doo
-
9219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
10219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
11219903167 Front Side Decal, RXT XFront Side Decal, RXT X
-
12219903221 LH Decal, A.E.SLH Decal, A.E.S
-
13219903222 RH Decal, A.E.SRH Decal, A.E.S
-
14219903219 LH Decal, Wrist PositionLH Decal, Wrist Position
-
15219903220 RH Decal, Wrist PositionRH Decal, Wrist Position
-
16219903442 LH Warning Decal, PrincipalLH Warning Decal, Principal
-
17219903443 Warning Decal, PrincipalWarning Decal, Principal
-
18219903441 RH Decal, RXT aS 260RH Decal, RXT aS 260
-
19219903055 Decal, IBRDecal, IBR
-
20219903056 Decal, ROTAX 4-TECDecal, ROTAX 4-TEC
-
21219903460 Decal, aSDecal, aS
-
22219903461 Decal, RXT aS 260Decal, RXT aS 260
-
23219903171 RS Decal. InternationalRS Decal. International
-
24219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
25219903082 Warning Decal, BatteryWarning Decal, Battery
-
26219903509 Decal, ExemptionDecal, Exemption
-
27219903495 Warning Decal, Gasoline/OctaneWarning Decal, Gasoline/Octane
-
28219902679 Decal, Emission ControlDecal, Emission Control
-
29219903079 Decal, No ObjectsDecal, No Objects
-
30219903075 Comformity Decal. InternationalComformity Decal. International
