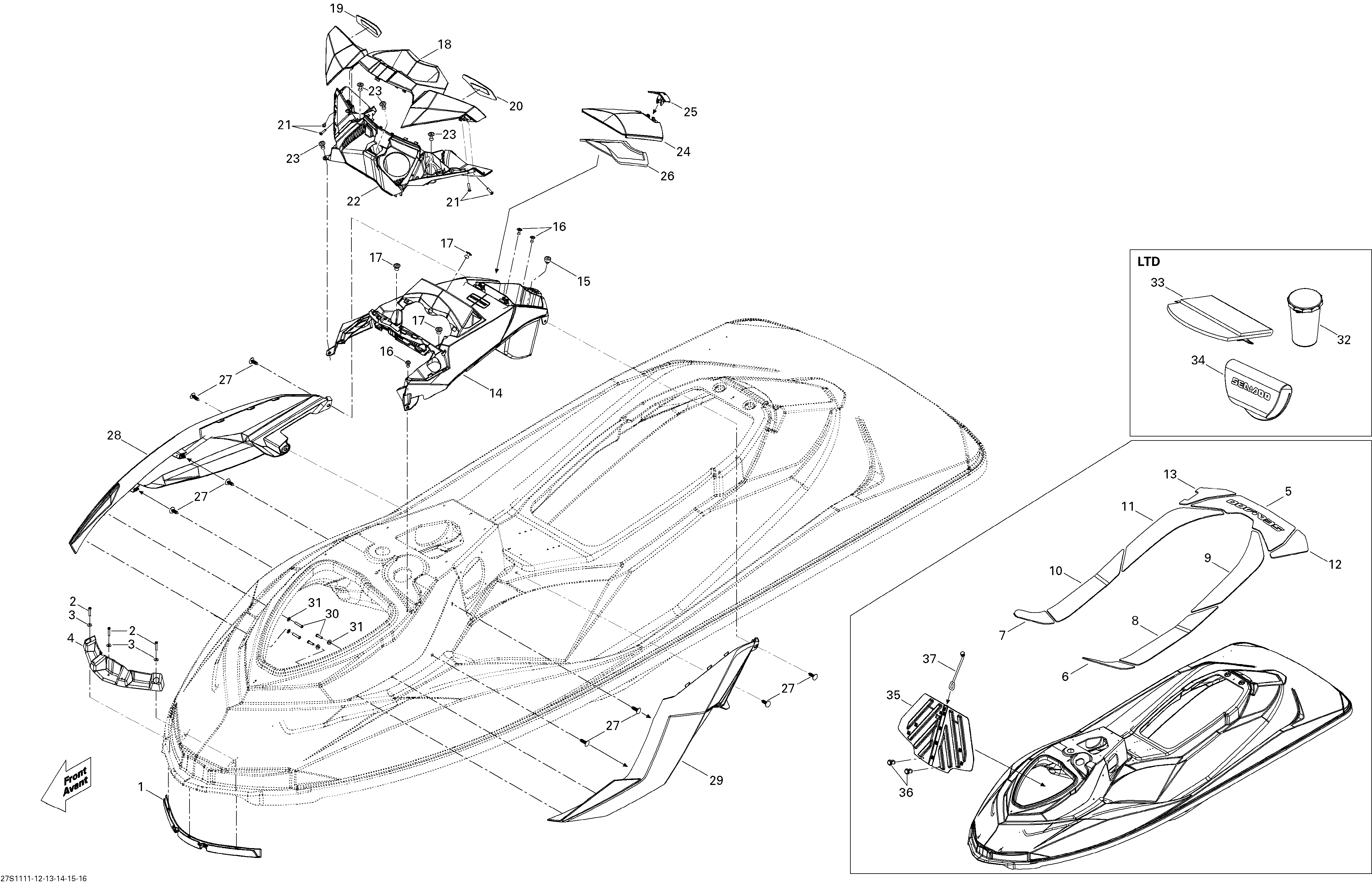

09- Body, Front View для BRP WAKE 155 - 2011
-
№АртикулНазвание
-
1291003277 Deck NoseDeck Nose
-
2241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
3234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
4291003278 Bumper SupportBumper Support
-
5291003096 Swim Platform CarpetSwim Platform Carpet
-
6291003058 LH Front CarpetLH Front Carpet
-
7291003059 RH Front CarpetRH Front Carpet
-
8291003060 LH Front Center CarpetLH Front Center Carpet
-
9291003329 LH Rear Center CarpetLH Rear Center Carpet
-
10291003061 RH Front Center CarpetRH Front Center Carpet
-
11291003330 RH Rear Center CarpetRH Rear Center Carpet
-
12291003062 LH Rear CarpetLH Rear Carpet
-
13291003063 RH Rear CarpetRH Rear Carpet
-
14291003071 ConsoleConsole
-
15293830005 Rubber PlugRubber Plug
-
16293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293150186 Pop Rivet 3/16Pop Rivet 3/16
-
18291003072 Info Gauge BezelInfo Gauge Bezel
-
19291003090 RH MirrorRH Mirror
-
20291003091 LH MirrorLH Mirror
-
21250000287 Allen Flanged Screw K40x16Allen Flanged Screw K40x16
-
22291003100 Mirror SupportMirror Support
-
23293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
24264000059 Glovebox Access DoorGlovebox Access Door
-
25264000019 Latch, BlackLatch, Black
-
26293250236 GasketGasket
-
27293730006 Dart, BlackDart, Black
-
28269501827 RH Cosmetic Panel, Viper RedRH Cosmetic Panel, Viper Red
-
29269501828 LH Cosmetic Panel, Viper RedLH Cosmetic Panel, Viper Red
-
30250000207 Plastite Torx Screw #10 X 7/8''Plastite Torx Screw #10 X 7/8''
-
31234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
35291003391 Divider Ass'yDivider Ass'y
-
36293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
37269501743 StrapStrap
