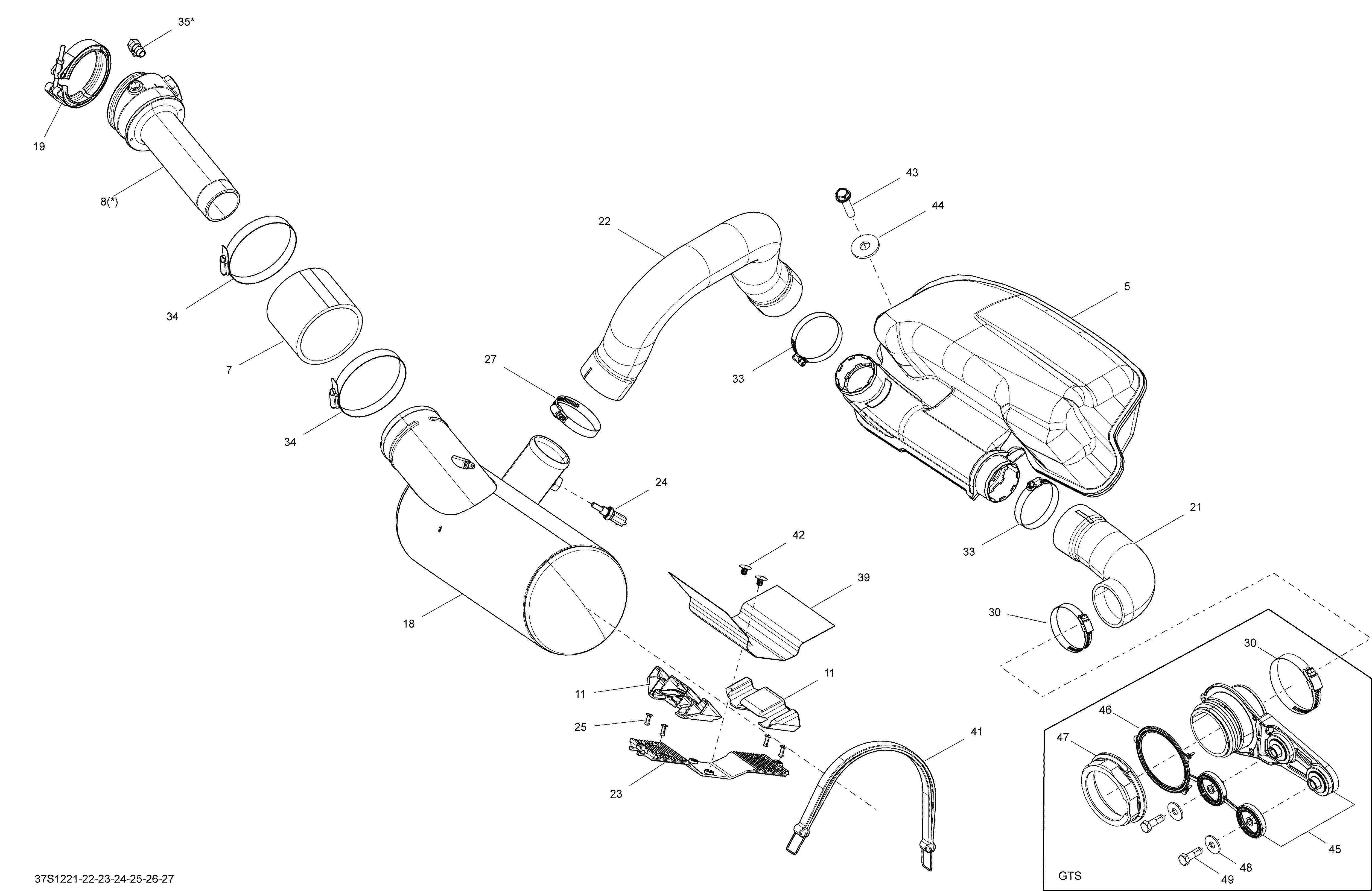

01- Exhaust System для BRP GTI 130 (23CA, 23CB) - 2012
-
№АртикулНазвание
-
5274001366 ResonatorResonator
-
7274001348 HoseHose
-
8274001489 Head Pipe Ass'yHead Pipe Ass'y
-
11274001358 StopperStopper
-
18274001384 MufflerMuffler
-
19274001417 Exhaust ClampExhaust Clamp
-
21274001423 Exhaust Hose, RearExhaust Hose, Rear
-
22274001458 Front Formed Exhaust HoseFront Formed Exhaust Hose
-
23274001479 Exhaust Muffler SupportExhaust Muffler Support
-
24278001016 Temperature SensorTemperature Sensor
-
25293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
27293650179 Tridon ClampTridon Clamp
-
30293650179 Tridon ClampTridon Clamp
-
33293650179 Tridon ClampTridon Clamp
-
34293650202 Gear ClampGear Clamp
-
35293700023 Elbow Fitting 90°Elbow Fitting 90°
-
39293830150 Rubber PadRubber Pad
-
41293850093 Fuel Tank StrapFuel Tank Strap
-
42414939500 DartDart
-
43243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
44234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
45268000103 RH Fixing Plate Ass'y. GTSRH Fixing Plate Ass'y. GTS
-
46268000105 RH Formed Seal. GTSRH Formed Seal. GTS
-
47274000224 Nut 72 mm. GTSNut 72 mm. GTS
-
48234082600 Flat Washer 8 mm, Stainless. GTSFlat Washer 8 mm, Stainless. GTS
-
49207382560 Hex. Screw M8 X 25, Scotch Grip. GTSHex. Screw M8 X 25, Scotch Grip. GTS
