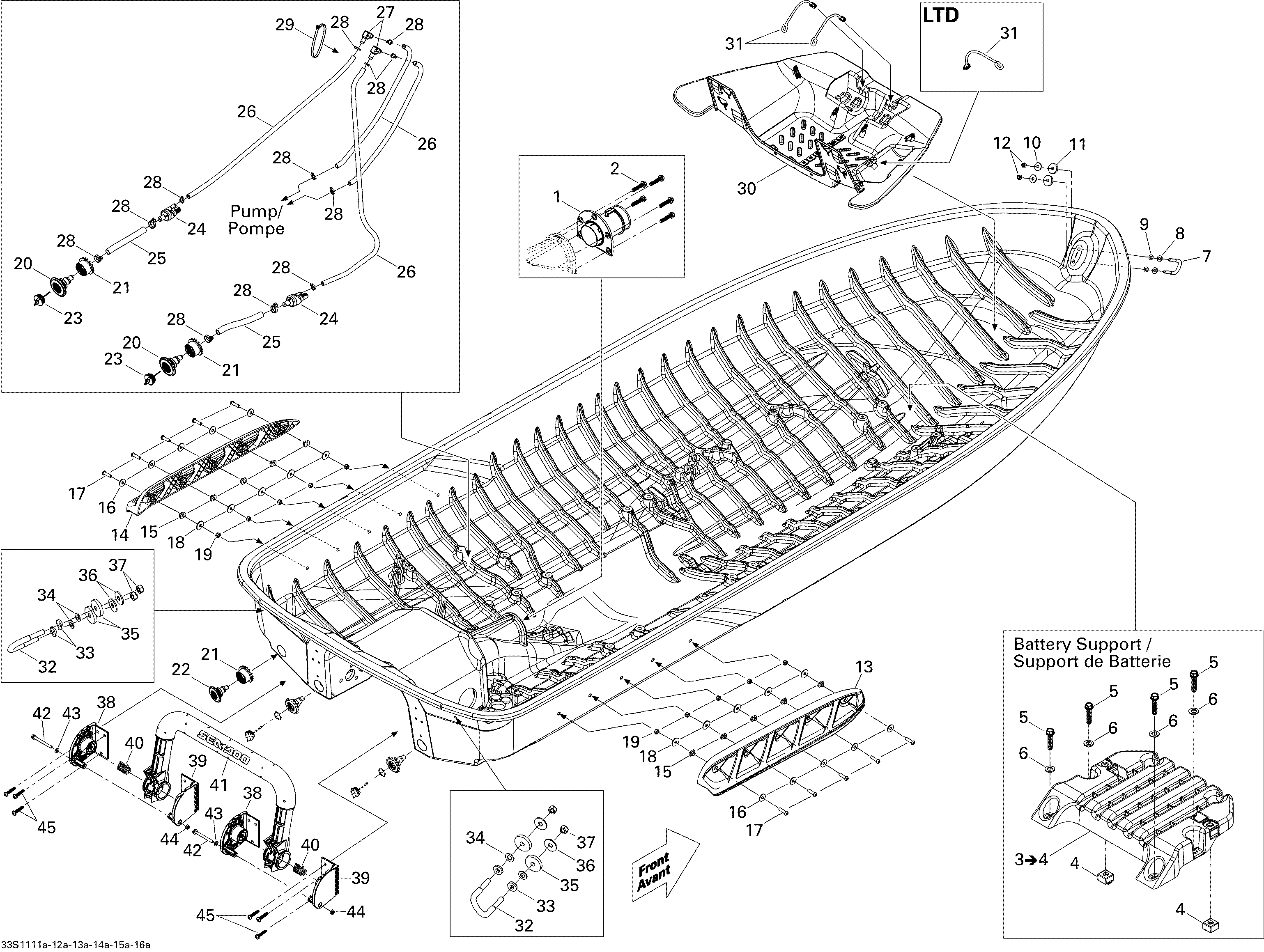

09- Hull 1 для BRP GTI LTD 155 (39CS) - 2012
-
№АртикулНазвание
-
1293450304 Hull InsertHull Insert
-
2243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
3278002621 Battery Base Ass'y. Includes 3 to 4Battery Base Ass'y. Includes 3 to 4
-
4269501387 Nut Housing Ass'yNut Housing Ass'y
-
5243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
-
6234080600 Flat Washer 8 mmFlat Washer 8 mm
-
7292000933 U-ClampU-Clamp
-
8293050001 Flat WasherFlat Washer
-
9234081100 Flat Washer 8 mmFlat Washer 8 mm
-
10250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11293830037 Rubber WasherRubber Washer
-
12232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
13292001378 RH SponsonRH Sponson
-
14292001377 LH SponsonLH Sponson
-
15292001349 Spacer SponsonSpacer Sponson
-
16234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
17250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
18250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
20292001315 Drain Neck Ass'yDrain Neck Ass'y
-
21292001371 BushingBushing
-
22292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
23292001352 Plug Drain Ass'yPlug Drain Ass'y
-
24292001310 Bailer Ass'yBailer Ass'y
-
25275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
26415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
27293710117 Elbow Fitting 90°Elbow Fitting 90°
-
28293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31273000261 Rubber LatchRubber Latch
-
32292000933 U-ClampU-Clamp
-
33293050001 Flat WasherFlat Washer
-
34234081100 Flat Washer 8 mmFlat Washer 8 mm
-
35293830037 Rubber WasherRubber Washer
-
36250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
37232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
38292001201 Support ASupport A
-
39292001202 Support BSupport B
-
40292001259 SpringSpring
-
41292001204 Overmolded BarOvermolded Bar
-
42207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
43234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
44232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45250000468 Torx ScrewTorx Screw
