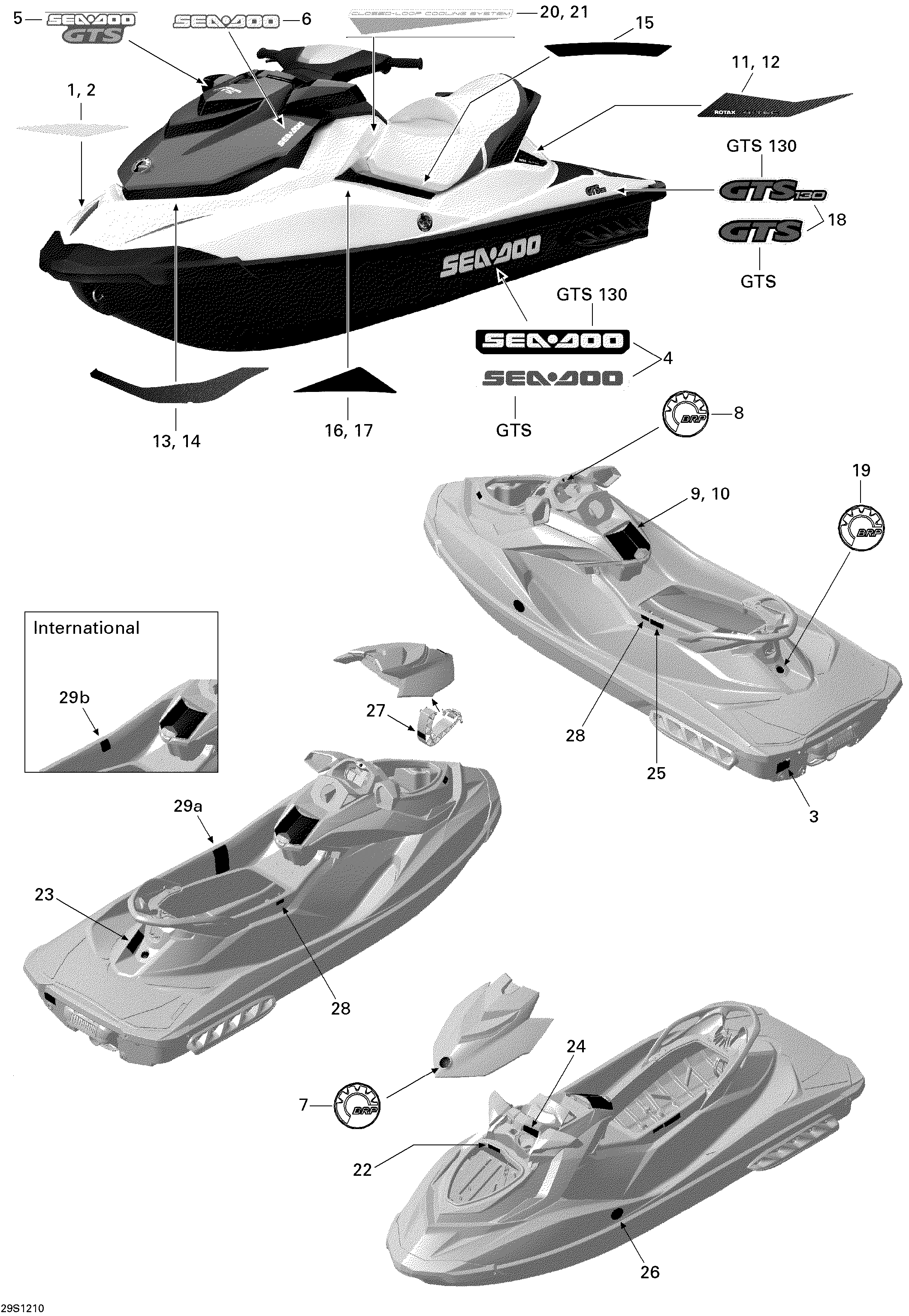

09- Decals GTS Rental для BRP GTS 130 & Rental 99 (25CS, 43CS) - 2012
-
№АртикулНазвание
-
1219903429 LH Front Side DecalLH Front Side Decal
-
2219903430 RH Front Side DecalRH Front Side Decal
-
3219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
4219903254 Sea-Doo Hull DecalSea-Doo Hull Decal
-
5219903463 Decal DeflectorDecal Deflector
-
6219903265 Front Sea-Doo LogoFront Sea-Doo Logo
-
7219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
8219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
9219903451 LH Warning Decal, SecurityLH Warning Decal, Security
-
10219903448 RH Warning Decal, SecurityRH Warning Decal, Security
-
11219903310 LH Rear DecalLH Rear Decal
-
12219903311 RH Rear DecalRH Rear Decal
-
13219903570 LH Front Side DecalLH Front Side Decal
-
14219903571 RH Front Side DecalRH Front Side Decal
-
15219903288 Center DecalCenter Decal
-
16219903416 LH Center DecalLH Center Decal
-
17219903417 RH Center DecalRH Center Decal
-
18219903349 Decal, GTSDecal, GTS
-
19219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
20219903468 LH Center DecalLH Center Decal
-
21219903469 RH Center DecalRH Center Decal
-
22219903082 Warning Decal, BatteryWarning Decal, Battery
-
23219903510 Decal, ExemptionDecal, Exemption
-
24219903501 Warning Decal, FuelWarning Decal, Fuel
-
25219903135 Caution Decal, Engine Oil LevelCaution Decal, Engine Oil Level
-
26219902679 Decal, Emission ControlDecal, Emission Control
-
27219903502 Warning Decal, StorageWarning Decal, Storage
-
28219903132 Caution Decal, SecurityCaution Decal, Security
-
29b219904016 Comformity Decal, CE. InternationalComformity Decal, CE. International
