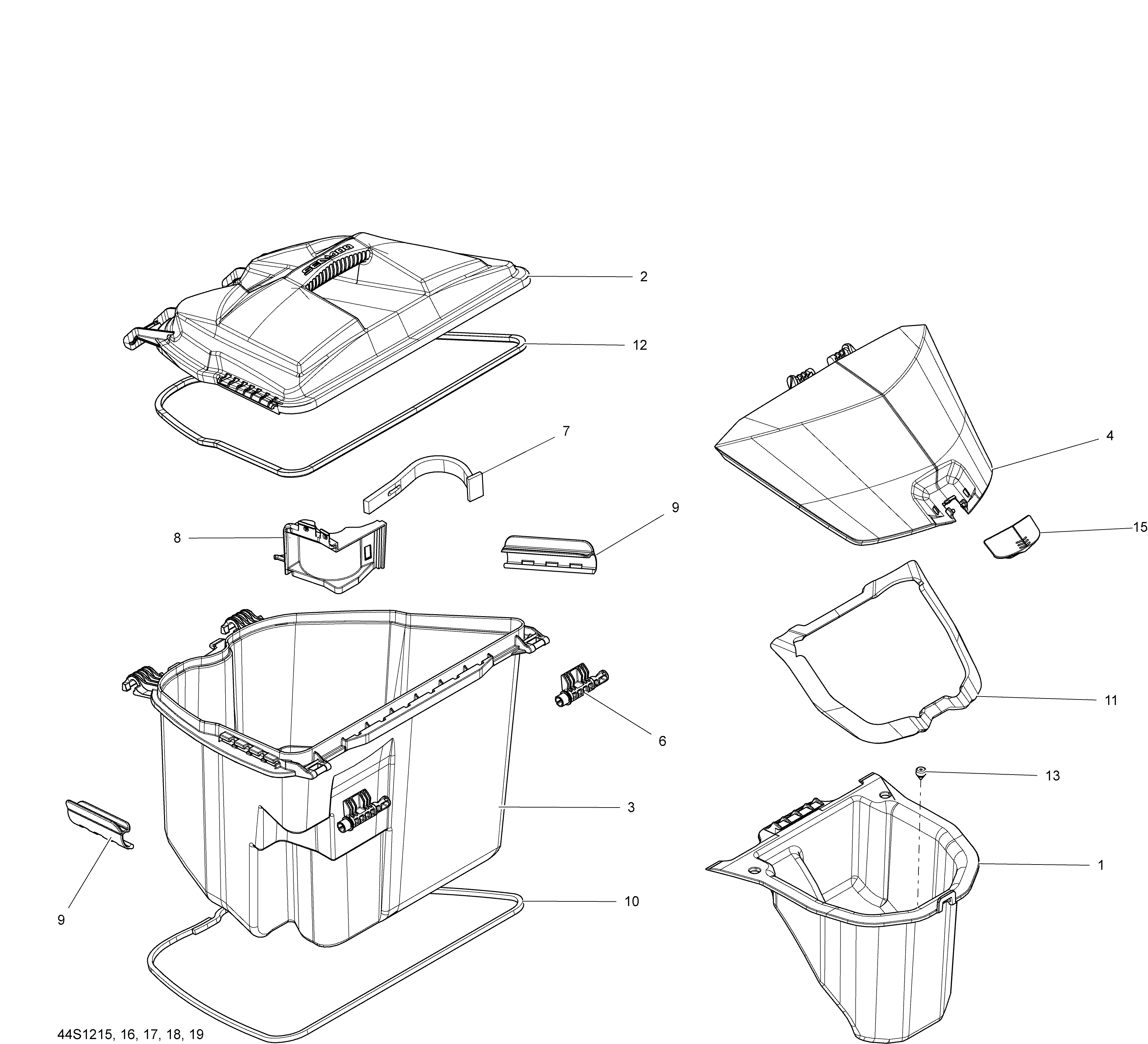

09- Storage Compartments для BRP GTX 155 (38CA, 38CB) - 2012
-
№АртикулНазвание
-
1264000031 Glove Box Ass'yGlove Box Ass'y
-
2264000009 Storage Bin Cover Ass'yStorage Bin Cover Ass'y
-
3264000089 Storage Tray Ass'yStorage Tray Ass'y
-
4264000081 Glove Door, WhiteGlove Door, White
-
6264000024 LatchLatch
-
7269500408 StrapStrap
-
8269501501 Extinguisher SupportExtinguisher Support
-
9269501609 ClipClip
-
10293250161 GasketGasket
-
11293250204 GasketGasket
-
12293250210 Neoprene SealNeoprene Seal
-
13293830005 Rubber PlugRubber Plug
-
15264000019 Latch, BlackLatch, Black
