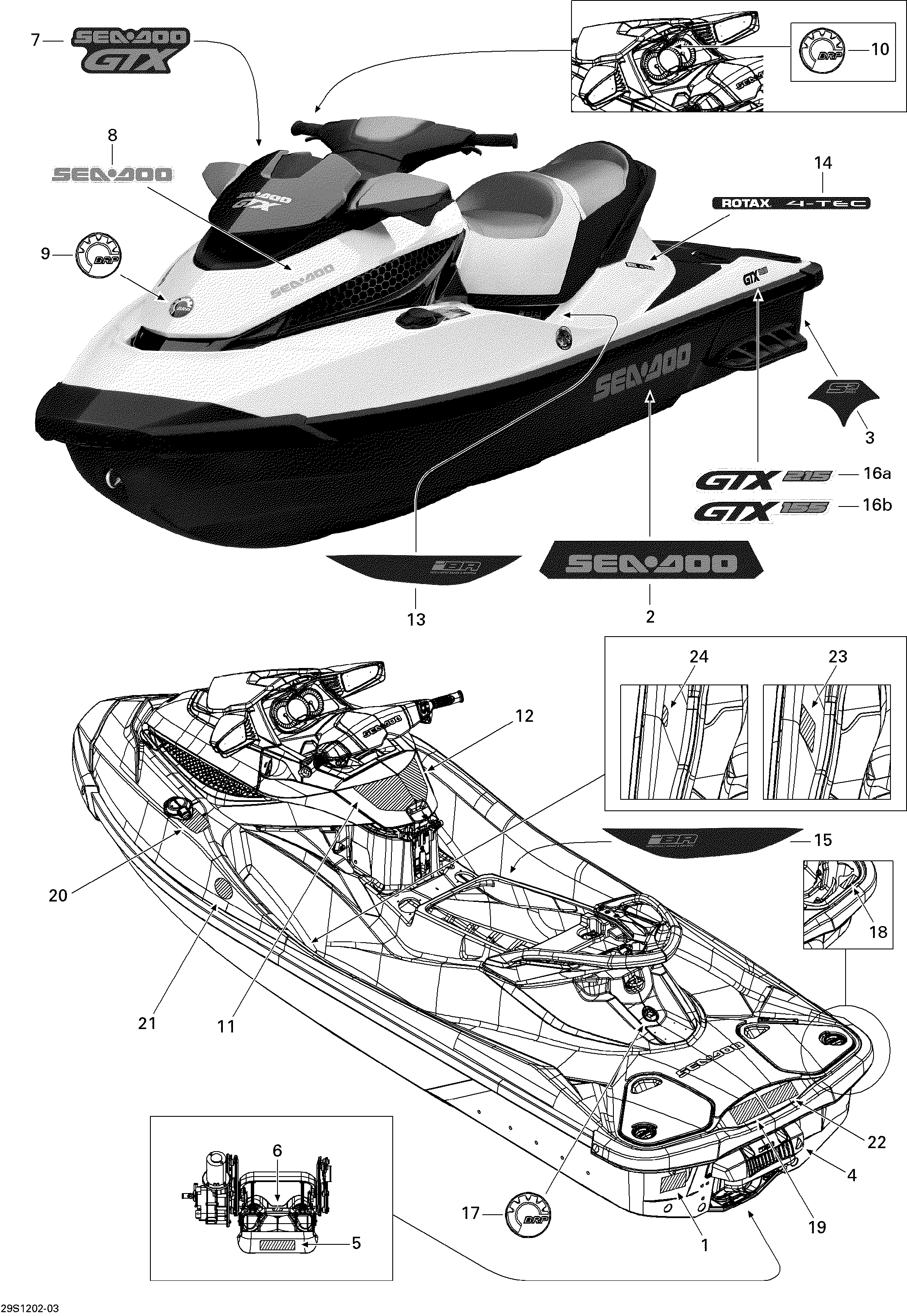

09- Decals для BRP GTX 215 (42CS) - 2012
-
№АртикулНазвание
-
1219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
2219903337 Decal, Sea-DooDecal, Sea-Doo
-
3219903052 Decal, S3 HULLDecal, S3 HULL
-
4219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
5219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
6219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
7219903516 Decal, Sea-Doo GTXDecal, Sea-Doo GTX
-
8219903519 Decal, Sea-DooDecal, Sea-Doo
-
9219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
10219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
11219903316 LH Warning Decal, PrincipalLH Warning Decal, Principal
-
12219903198 RH Warning Decal, PrincipalRH Warning Decal, Principal
-
13219903118 LH Decal, IBRLH Decal, IBR
-
14219903056 Decal, ROTAX 4-TECDecal, ROTAX 4-TEC
-
15219903119 RH Decal, IBRRH Decal, IBR
-
16a219903526 Decal, GTX 215Decal, GTX 215
-
17219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
18219903082 Warning Decal, BatteryWarning Decal, Battery
-
19219903510 Decal, ExemptionDecal, Exemption
-
20219903495 Warning Decal, Gasoline/OctaneWarning Decal, Gasoline/Octane
-
21219902679 Decal, Emission ControlDecal, Emission Control
-
22219903088 Warning Decal, Boarding StepWarning Decal, Boarding Step
-
24219904016 Comformity Decal, CEComformity Decal, CE
