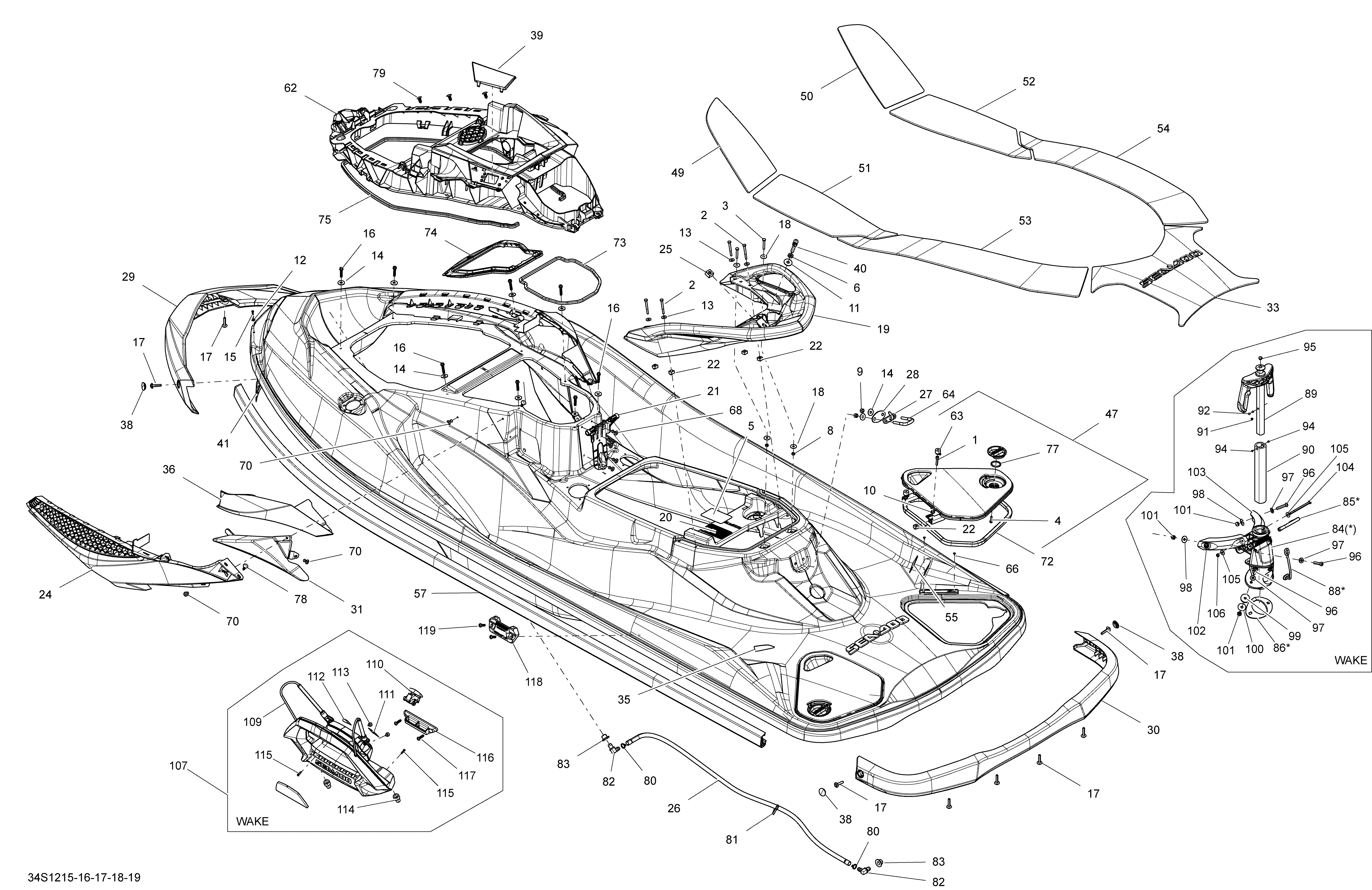

09- Body для BRP RXT 260 (RS) (17CA, 17CB) - 2012
-
№АртикулНазвание
-
1205063060 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
2207065560 Hex. Screw M6 x 55Hex. Screw M6 x 55
-
3207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
5219903184 Caution Engine OilCaution Engine Oil
-
6232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
8232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10233161600 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
11234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
12234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
16243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
17250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
18250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
19291004622 Black Rear HandleBlack Rear Handle
-
20291002947 Lower Deck Ass'yLower Deck Ass'y
-
21269002162 Mounting Case AbsorberMounting Case Absorber
-
22269501166 Nut Housing Ass'yNut Housing Ass'y
-
24291003509 RH Front Cover Ass'yRH Front Cover Ass'y
-
24291003512 LH Front Cover Ass'yLH Front Cover Ass'y
-
25271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
26275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
27291002351 HookHook
-
28291001386 Finition Plate, BlackFinition Plate, Black
-
29291002588 Front BumberFront Bumber
-
30291002592 Rear BumberRear Bumber
-
31291003192 RH Seat Pad, BlackRH Seat Pad, Black
-
31291003193 LH Seat Pad, BlackLH Seat Pad, Black
-
33291002625 Rear Plat-Form CarpetRear Plat-Form Carpet
-
35291002626 LH NonskidLH Nonskid
-
36291003515 LH Upper Body Cap CoverLH Upper Body Cap Cover
-
36291003516 RH Upper Body Cap CoverRH Upper Body Cap Cover
-
38291002744 Bumber CapBumber Cap
-
39291002756 Front Rewinder CapFront Rewinder Cap
-
40291002784 Seat StudSeat Stud
-
41291002818 Deck NoseDeck Nose
-
47291003686 LH Access CoverLH Access Cover
-
47291003687 RH Access CoverRH Access Cover
-
49291003580 LH Front CarpetLH Front Carpet
-
50291003581 RH Front CarpetRH Front Carpet
-
51291003458 LH Center CarpetLH Center Carpet
-
52291003459 RH Center CarpetRH Center Carpet
-
53291003460 LH Rear CarpetLH Rear Carpet
-
54291003461 RH Rear CarpetRH Rear Carpet
-
55291002937 RH NonskidRH Nonskid
-
57291003050 Lateral BumperLateral Bumper
-
62291003680 Front ModuleFront Module
-
63291003688 Rubber BumperRubber Bumper
-
64292000933 U-ClampU-Clamp
-
66293000014 Snap Cap, BlackSnap Cap, Black
-
68293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
70293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
72293200133 Neoprene SealNeoprene Seal
-
73293250200 Neoprene SealNeoprene Seal
-
74293250220 SealSeal
-
75296000342 SealSeal
-
77293300121 O-RingO-Ring
-
78293730006 Dart, BlackDart, Black
-
79293730010 Dart, BlackDart, Black
-
80293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
81414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
82414523600 Elbow FittingElbow Fitting
-
83513033435 GrommetGrommet
