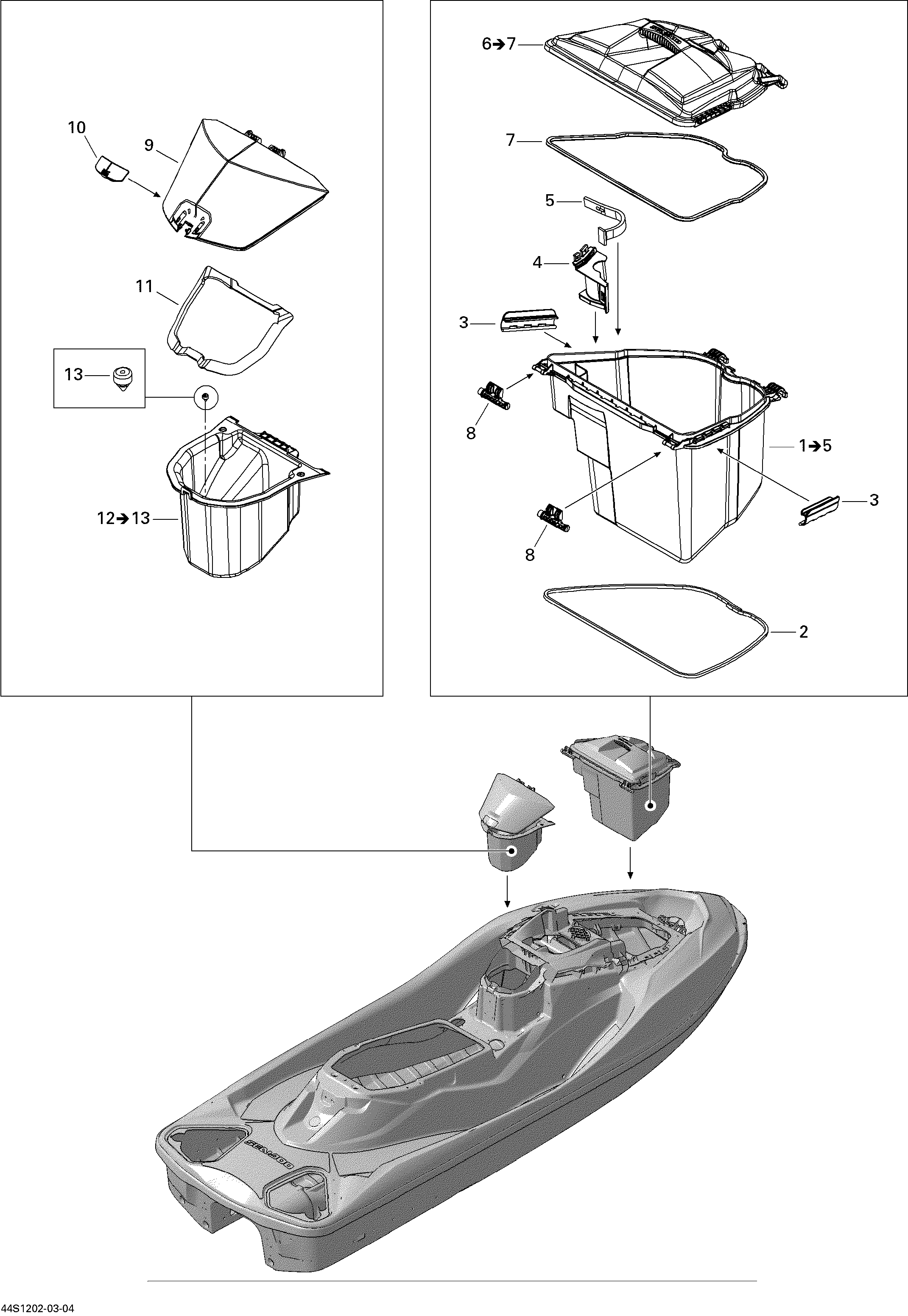

09- Storage Compartments для BRP RXT 260 (RS) (17CS) - 2012
-
№АртикулНазвание
-
1264000089 Storage Tray Ass'y. Includes 1 to 5Storage Tray Ass'y. Includes 1 to 5
-
2293250161 GasketGasket
-
3269501609 ClipClip
-
4269501501 Extinguisher SupportExtinguisher Support
-
5269500408 StrapStrap
-
6264000009 Storage Bin Cover Ass'y. Includes 6 to 7Storage Bin Cover Ass'y. Includes 6 to 7
-
7293250210 Neoprene SealNeoprene Seal
-
8264000024 LatchLatch
-
9264000081 Glove Door, White. Includes 9 to 11Glove Door, White. Includes 9 to 11
-
10264000019 Latch, BlackLatch, Black
-
11293250204 GasketGasket
-
12264000031 Glove Box Ass'y. Includes 12 to 13Glove Box Ass'y. Includes 12 to 13
-
13293830005 Rubber PlugRubber Plug
