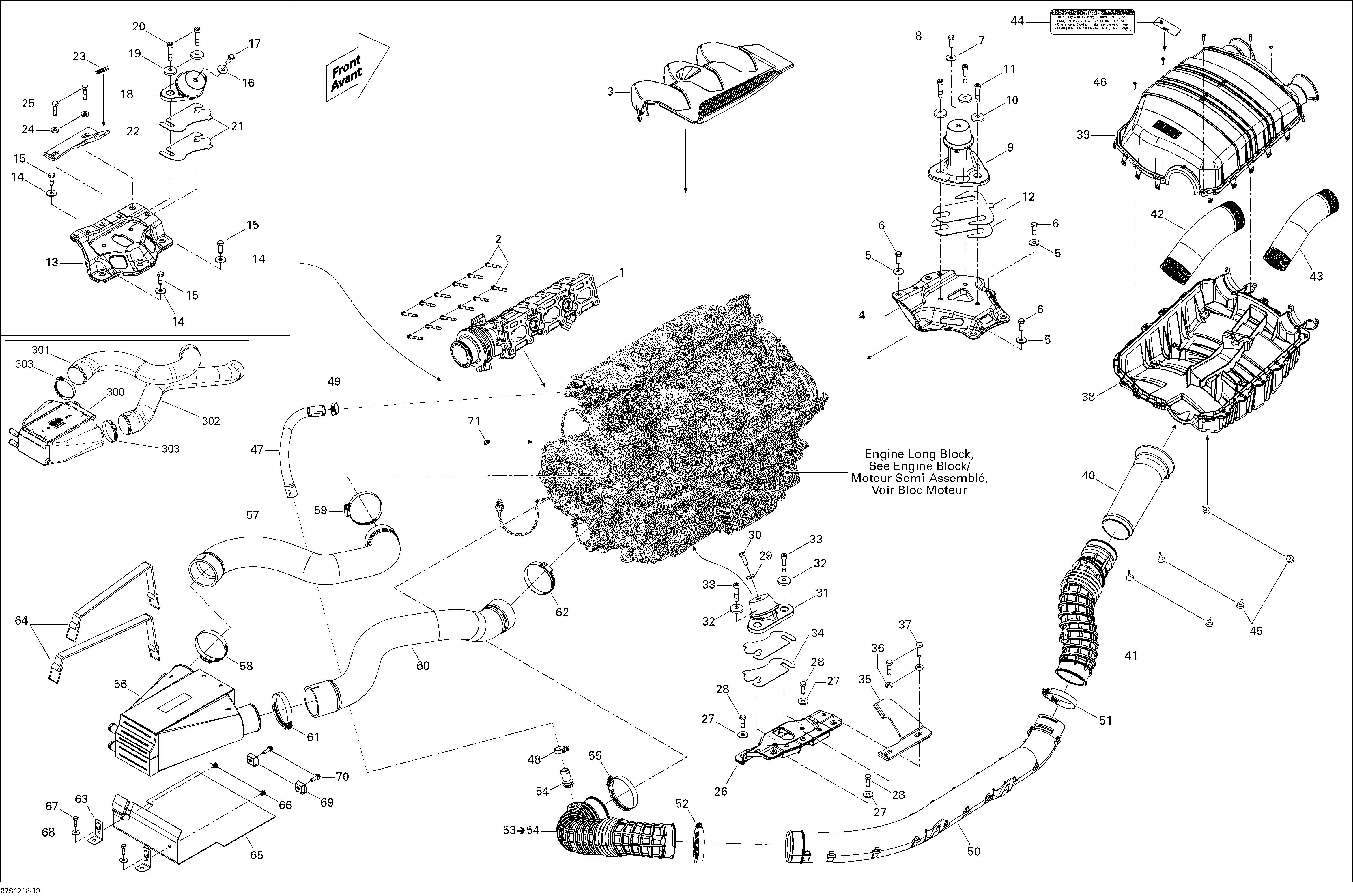

01- Engine And Air Intake Silencer для BRP RXT-X 260 & RS. 2012 - 2012
-
№АртикулНазвание
-
1274001434 Exhaust ManifoldExhaust Manifold
-
2420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
3270000804 Engine CoverEngine Cover
-
4270000767 SpacerSpacer
-
5234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
9270000886 Rubber MountRubber Mount
-
10250200018 Cone WasherCone Washer
-
11250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
12270000770 Shim 1.3 mmShim 1.3 mm
-
13270000763 SpacerSpacer
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
16234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
17207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
18270000882 Rubber MountRubber Mount
-
19250200018 Cone WasherCone Washer
-
20250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
21270000762 Shim 1.3 mmShim 1.3 mm
-
22270000796 LH StopperLH Stopper
-
23204610371 Trim, BlackTrim, Black
-
24293050001 Flat WasherFlat Washer
-
25250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
26270000766 SpacerSpacer
-
27234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
28250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
29234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
30207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
31270000882 Rubber MountRubber Mount
-
32250200018 Cone WasherCone Washer
-
33250000334 Socket Head Screw M8 X 40, Scotch GripSocket Head Screw M8 X 40, Scotch Grip
-
34270000762 Shim 1.3 mmShim 1.3 mm
-
35270000799 RH StopperRH Stopper
-
36293050001 Flat WasherFlat Washer
-
37250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
38273000289 Air Silencer LowAir Silencer Low
-
39273000288 Air Silencer UpperAir Silencer Upper
-
40273000301 Intake HoseIntake Hose
-
41273000322 Hose ConnectorHose Connector
-
42273000290 Air Silencer HoseAir Silencer Hose
-
43273000299 Air Silencer TubeAir Silencer Tube
-
44219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
45708000759 Rubber StopperRubber Stopper
-
46250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
47270000864 Formed HoseFormed Hose
-
48293650051 Tridon Gear ClampTridon Gear Clamp
-
49293650051 Tridon Gear ClampTridon Gear Clamp
-
50273000233 Hose IntakeHose Intake
-
51293650179 Tridon ClampTridon Clamp
-
52293650179 Tridon ClampTridon Clamp
-
53273000317 Rear Hose Intake. Includes 53 to 54Rear Hose Intake. Includes 53 to 54
-
54273000234 BreatherBreather
-
55293650179 Tridon ClampTridon Clamp
-
56276000273 IntercoolerIntercooler
-
57273000282 Inlet Hose CoolerInlet Hose Cooler
-
58293650179 Tridon ClampTridon Clamp
-
59293650179 Tridon ClampTridon Clamp
-
60273000300 Outlet Hose CoolerOutlet Hose Cooler
-
61293650179 Tridon ClampTridon Clamp
-
62293650179 Tridon ClampTridon Clamp
-
63275500743 Strap Clip 90°Strap Clip 90°
-
64293850093 StrapStrap
-
65293830146 Rubber PadRubber Pad
-
66293730016 Dart, BlackDart, Black
-
67243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
68234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
69270000854 Strap AnchorStrap Anchor
-
70243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
71293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
300276000397 Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942Intercooler. Ref Service Bulletin 2015-7. Zinc Anode: 271001942
-
301273000361 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
302273000362 Formed Hose. Ref Service Bulletin 2015-7Formed Hose. Ref Service Bulletin 2015-7
-
303293650244 Tridon Gear Clamp. Ref Service Bulletin 2015-7Tridon Gear Clamp. Ref Service Bulletin 2015-7
