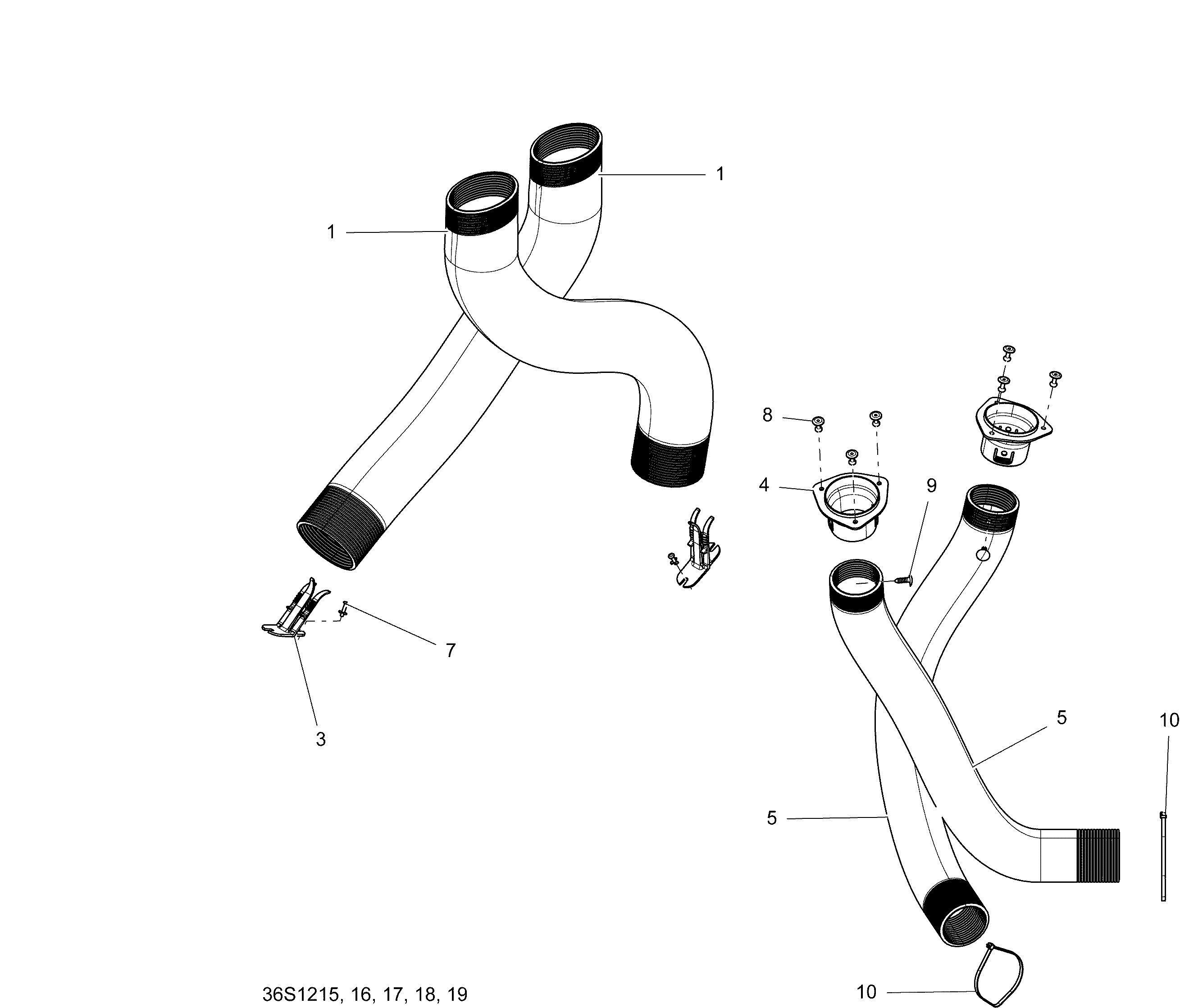

09- Ventilation для BRP WAKE PRO 215 - 2012
-
№АртикулНазвание
-
1237000044 Ventilation Hoses 3.5''Ventilation Hoses 3.5''
-
3237000045 Hose ClipHose Clip
-
4291002299 Ventilation AdaptorVentilation Adaptor
-
5291002515 Ventilation HosesVentilation Hoses
-
7293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
8293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
9293730011 Dart, BlackDart, Black
-
10293750008 Tie-Rap 350 mmTie-Rap 350 mm
