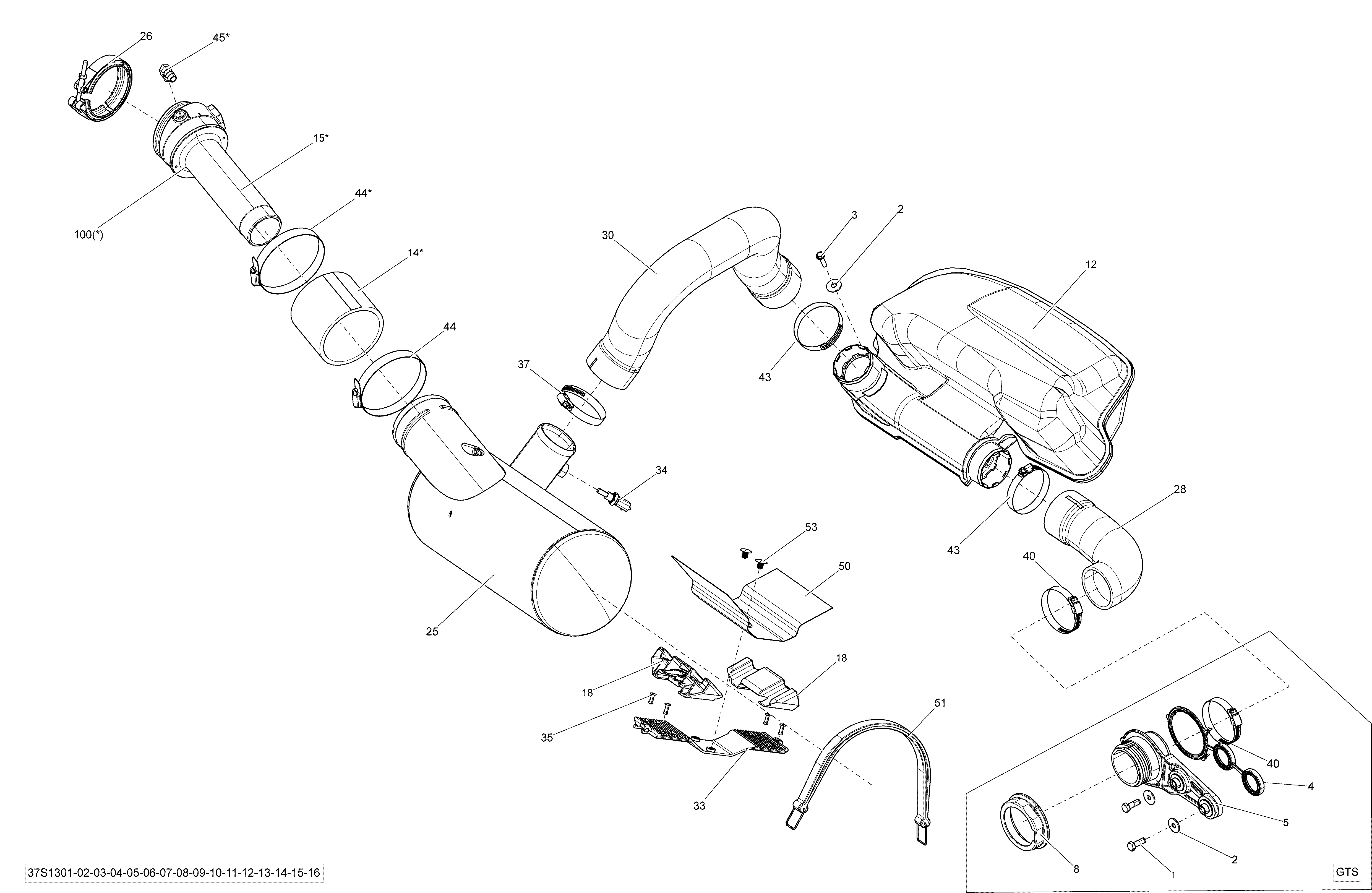

01- Exhaust System для BRP GTI LTD 155 - 2013
-
№АртикулНазвание
-
1207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
2234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
3243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
4268000105 RH Formed SealRH Formed Seal
-
5268000130 RH Fixing Plate Ass'yRH Fixing Plate Ass'y
-
8274000224 Nut 72 mmNut 72 mm
-
12274001366 ResonatorResonator
-
14274001348 HoseHose
-
15274001354 Head Pipe Ass'yHead Pipe Ass'y
-
18274001358 StopperStopper
-
25274001384 MufflerMuffler
-
26274001417 Exhaust ClampExhaust Clamp
-
28274001423 Exhaust Hose, Rear. GTI, GTR, GTS, WAKE 155Exhaust Hose, Rear. GTI, GTR, GTS, WAKE 155
-
30274001458 Front Formed Exhaust HoseFront Formed Exhaust Hose
-
33274001479 Exhaust Muffler SupportExhaust Muffler Support
-
34278002895 Temperature sensorTemperature sensor
-
35293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
37293650179 Tridon ClampTridon Clamp
-
40293650179 Tridon ClampTridon Clamp
-
43293650179 Tridon ClampTridon Clamp
-
44293650202 Gear ClampGear Clamp
-
45293700023 Elbow Fitting 90°Elbow Fitting 90°
-
50293830153 Pad RubberPad Rubber
-
51293850093 StrapStrap
-
53414939500 DartDart
-
100274001489 Head Pipe Ass'yHead Pipe Ass'y
