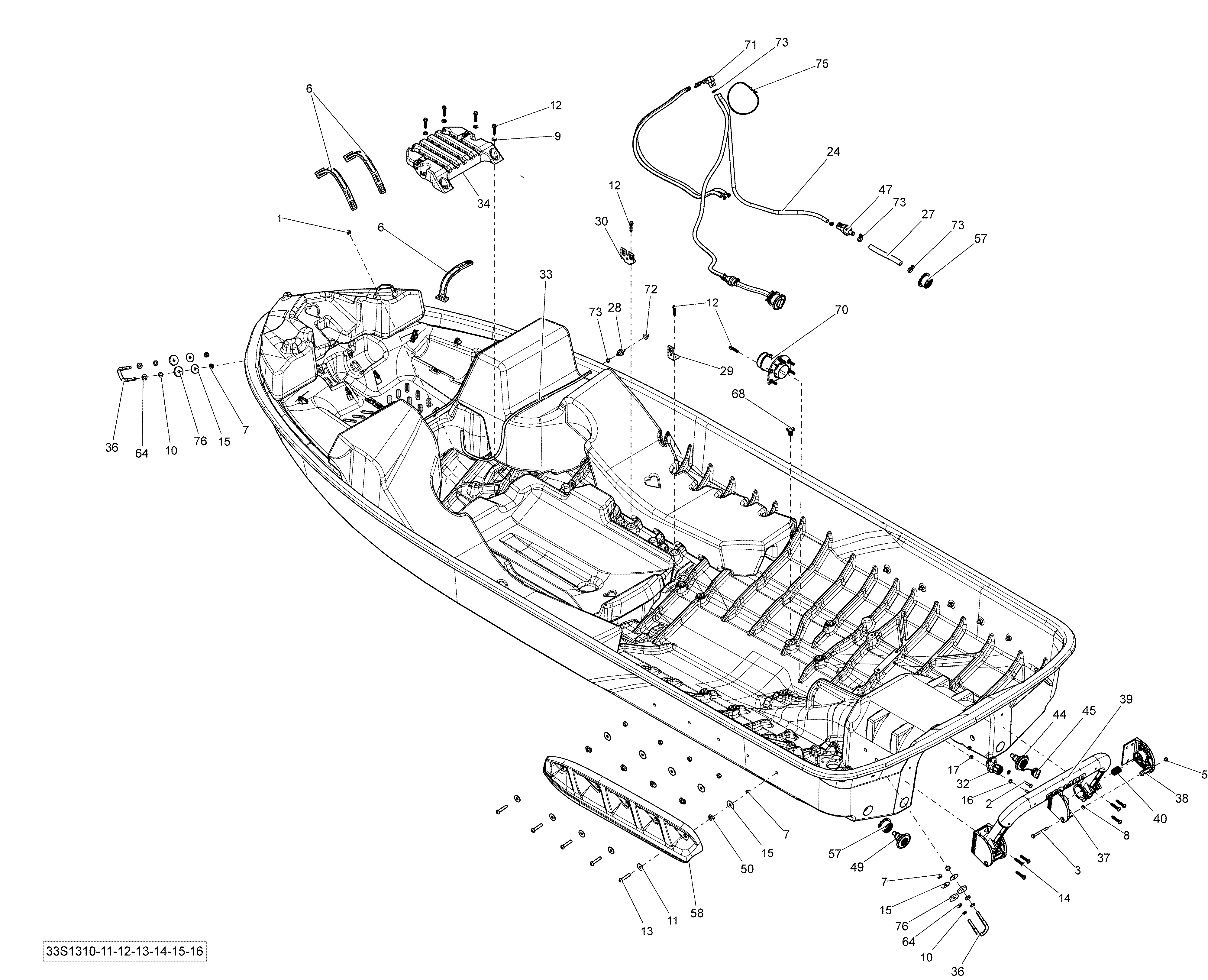

09- Hull для BRP GTR 215 - 2013
-
№АртикулНазвание
-
1293830005 Rubber PlugRubber Plug
-
2207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
3207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6269500408 StrapStrap
-
7232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234080600 Flat Washer 8 mmFlat Washer 8 mm
-
10234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
11234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
-
13250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
14250000468 Torx ScrewTorx Screw
-
15250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
16250200114 Sealing WasherSealing Washer
-
17232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
24415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
27275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
28275500499 Check ValveCheck Valve
-
29275500743 Strap Clip 90°Strap Clip 90°
-
30275500798 Double Strap Clip 90°Double Strap Clip 90°
-
32277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
33275500446 Hose 6 mmHose 6 mm
-
34278002866 Battery Base Ass'yBattery Base Ass'y
-
36292000933 U-ClampU-Clamp
-
37292001509 A Section SupportA Section Support
-
38292001510 B Section SupportB Section Support
-
39292001204 Overmolded BarOvermolded Bar
-
40292001259 SpringSpring
-
44292001315 Drain Neck Ass'yDrain Neck Ass'y
-
45292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
47292001310 Bailer Ass'yBailer Ass'y
-
49292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
50292001349 Spacer SponsonSpacer Sponson
-
57292001371 BushingBushing
-
58292001513 LH SponsonLH Sponson
-
64293050001 Flat WasherFlat Washer
-
68293450290 Insert Capuchon M8Insert Capuchon M8
-
70293450304 Hull InsertHull Insert
-
71293710117 Elbow Fitting 90°Elbow Fitting 90°
-
72293720029 GrommetGrommet
-
73293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
75293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
76293830037 Rubber WasherRubber Washer
