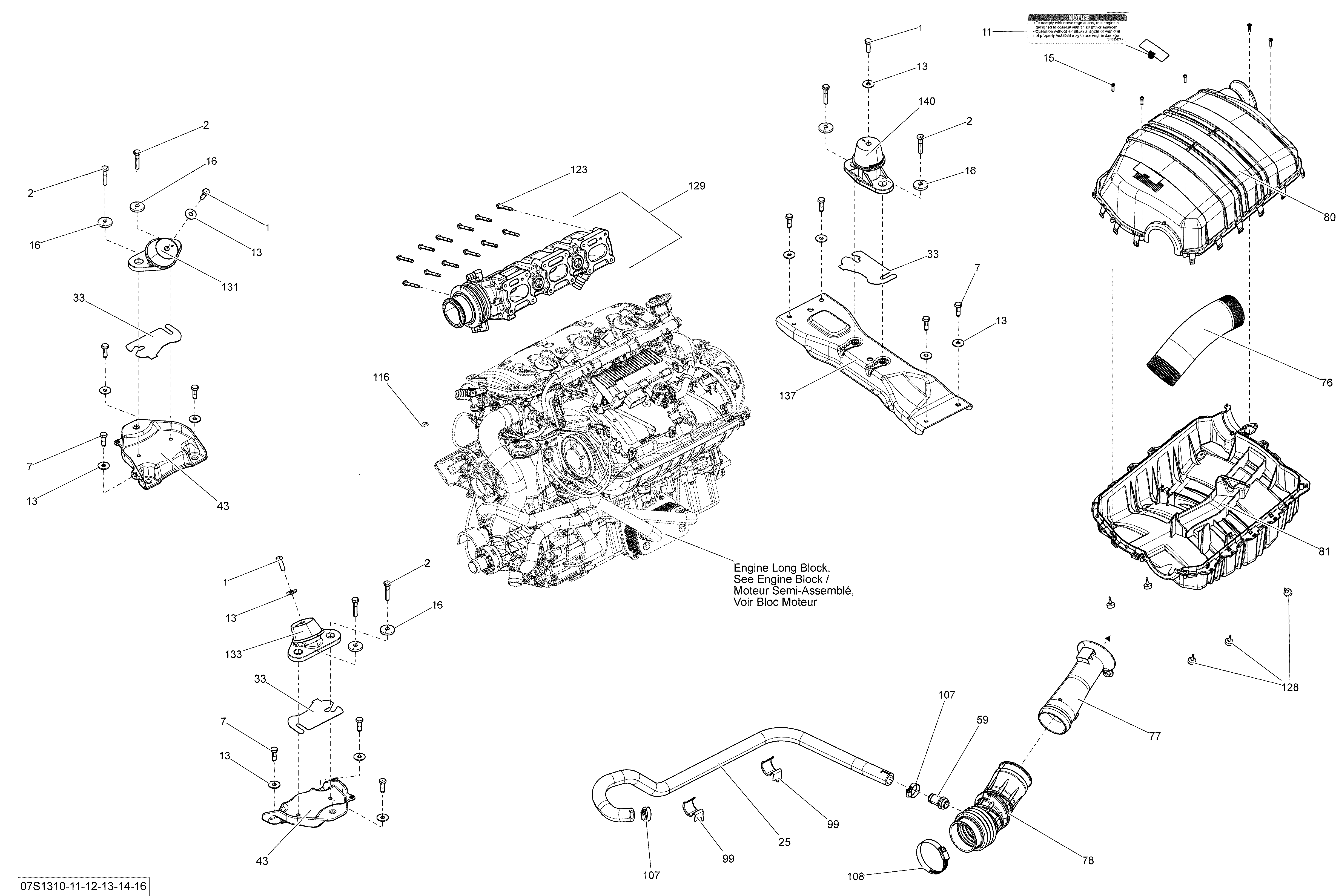

01- Engine And Air Intake Silencer для BRP GTS 130 & Rental - 2013
-
№АртикулНазвание
-
1207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
2207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
11219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
16250200018 Cone WasherCone Washer
-
25270000809 Formed HoseFormed Hose
-
33270000762 Shim 1.3 mmShim 1.3 mm
-
43270000815 Rear SpacerRear Spacer
-
59273000234 BreatherBreather
-
76273000290 Air Silencer HoseAir Silencer Hose
-
77273000291 Intake HoseIntake Hose
-
78273000292 Hose ConnectorHose Connector
-
80273000297 Air Silencer UpperAir Silencer Upper
-
81273000298 Air Silencer LowAir Silencer Low
-
99275500664 RetainerRetainer
-
107293650051 Tridon Gear ClampTridon Gear Clamp
-
108293650179 Tridon ClampTridon Clamp
-
116293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
123420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
128708000759 Rubber StopperRubber Stopper
-
129274001434 Exhaust ManifoldExhaust Manifold
-
131270000882 Rubber MountRubber Mount
-
133270000882 Rubber MountRubber Mount
-
137270000818 Front SpacerFront Spacer
-
140270000885 Rubber MountRubber Mount
