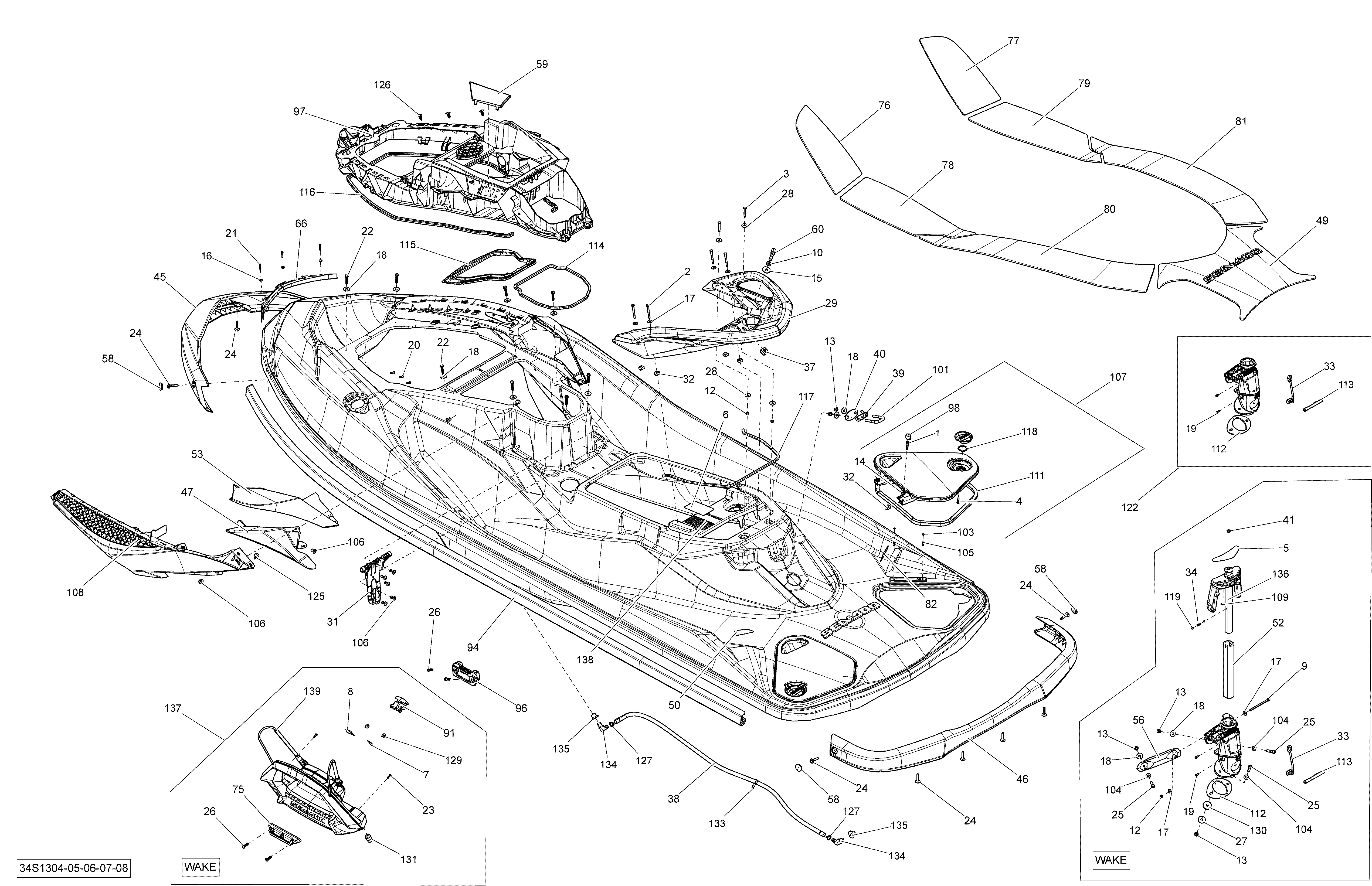

09- Body для BRP GTX 155 - 2013
-
№АртикулНазвание
-
1205063060 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
2207065560 Hex. Screw M6 x 55Hex. Screw M6 x 55
-
3207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
6219903184 Caution Engine OilCaution Engine Oil
-
7219903228 Warning WAKEWarning WAKE
-
8219903240 WAKE-PRO DecalWAKE-PRO Decal
-
9230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
10232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
12232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
13232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
14233161600 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
15234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
16234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
17234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
18234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
20241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
21241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
22243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
23250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
24250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
25250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
26250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
27250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
28250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
29291004622 Black Rear HandleBlack Rear Handle
-
31269002162 Mounting Case AbsorberMounting Case Absorber
-
32269501166 Nut Housing Ass'yNut Housing Ass'y
-
34269501651 Ball SpringBall Spring
-
37271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
38275000267 Hose 11.6mm - 1100mmHose 11.6mm - 1100mm
-
39291002351 HookHook
-
40291001386 Finition Plate, BlackFinition Plate, Black
-
41291001519 Bumper Plug, BlackBumper Plug, Black
-
45291003836 Front BumperFront Bumper
-
46291002592 Rear BumberRear Bumber
-
47291003192 RH Seat Pad, BlackRH Seat Pad, Black
-
47291003193 LH Seat Pad, BlackLH Seat Pad, Black
-
49291002625 Rear Plat-Form CarpetRear Plat-Form Carpet
-
50291002626 LH NonskidLH Nonskid
-
53291003515 LH Upper Body Cap Cover. RXT, GTXLH Upper Body Cap Cover. RXT, GTX
-
53291003516 RH Upper Body Cap Cover. RXT, GTXRH Upper Body Cap Cover. RXT, GTX
-
58291002744 Bumber CapBumber Cap
-
59291002756 Front Rewinder CapFront Rewinder Cap
-
60291002784 Seat StudSeat Stud
-
66291002818 Deck NoseDeck Nose
-
76291003580 LH Front Carpet. RXT, GTX, RXT-XLH Front Carpet. RXT, GTX, RXT-X
-
77291003581 RH Front Carpet. RXT, GTX, RXT-XRH Front Carpet. RXT, GTX, RXT-X
-
78291003458 LH Center Carpet. RXT, GTX, RXT-XLH Center Carpet. RXT, GTX, RXT-X
-
79291003459 RH Center Carpet. RXT, GTX, RXT-XRH Center Carpet. RXT, GTX, RXT-X
-
80291003460 LH Rear Carpet. RXT, GTX, RXT-XLH Rear Carpet. RXT, GTX, RXT-X
-
81291003461 RH Rear Carpet. RXT, GTX, RXT-XRH Rear Carpet. RXT, GTX, RXT-X
-
82291002937 RH NonskidRH Nonskid
-
94291003872 Lateral Bumper, BlackLateral Bumper, Black
-
96291003582 Upper AnchorageUpper Anchorage
-
97291003680 Front ModuleFront Module
-
98291003688 Rubber BumperRubber Bumper
-
101292000933 U-ClampU-Clamp
-
103293000014 Snap Cap, BlackSnap Cap, Black
-
104293050001 Flat WasherFlat Washer
-
105293150016 Rivet 1/8''Rivet 1/8''
-
106293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
107291003686 LH Access CoverLH Access Cover
-
107291003687 RH Access CoverRH Access Cover
-
108291003508 RH Front Cover Ass'y. GTXRH Front Cover Ass'y. GTX
-
108291003511 LH Front Cover Ass'y. GTXLH Front Cover Ass'y. GTX
-
111293200133 Neoprene SealNeoprene Seal
-
114293250200 Neoprene SealNeoprene Seal
-
115293250220 SealSeal
-
116296000342 SealSeal
-
117293250218 GasketGasket
-
118293300121 O-RingO-Ring
-
125293730006 Dart, BlackDart, Black
-
126293730010 Dart, BlackDart, Black
-
127293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
130293830037 Rubber WasherRubber Washer
-
133414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
134414523600 Elbow FittingElbow Fitting
-
135513033435 GrommetGrommet
-
138291002947 Lower Deck Ass'yLower Deck Ass'y
