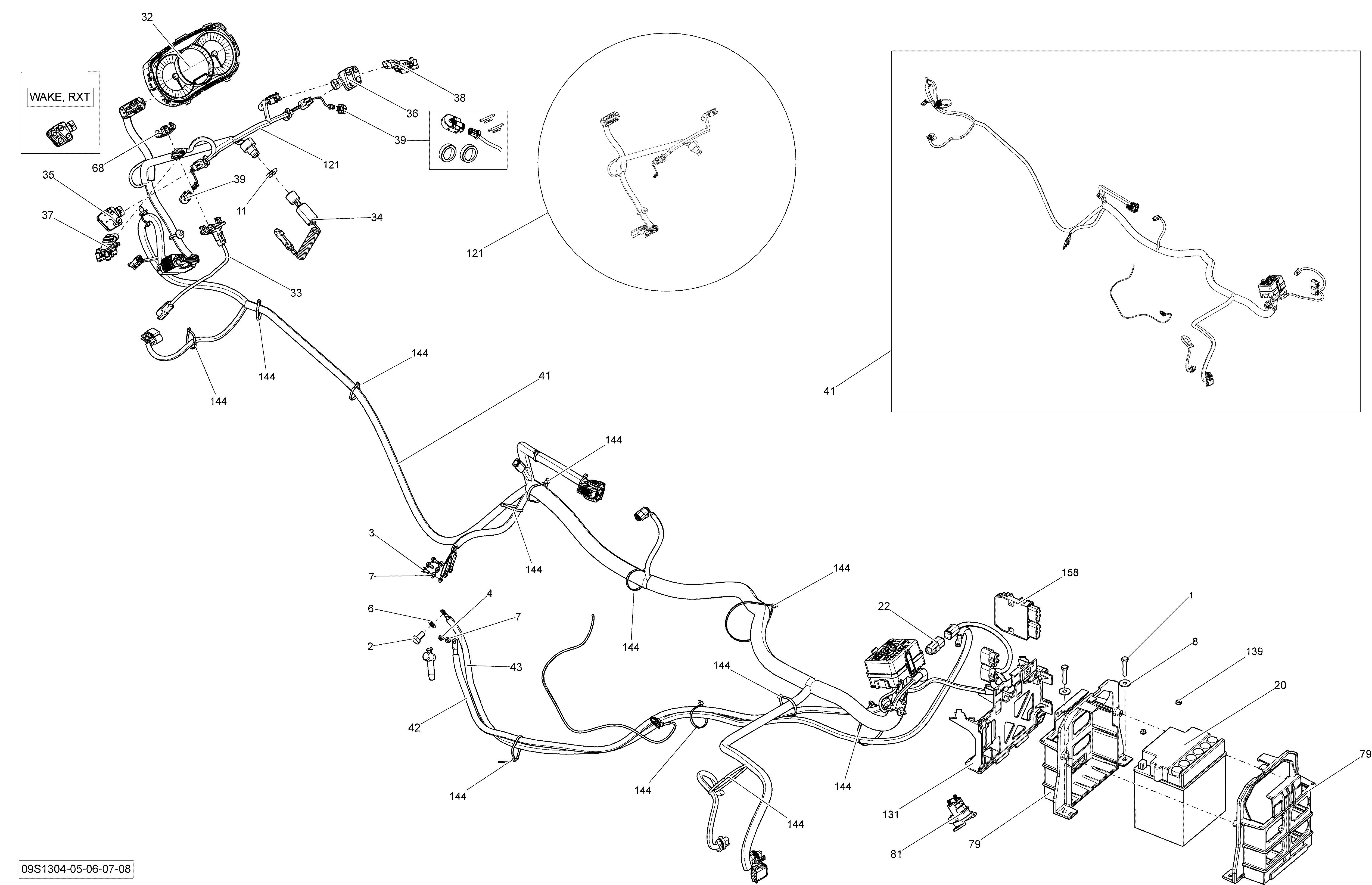

10- Electrical System для BRP RXT 260 & RS - 2013
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
6234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11278000508 Safety Switch NutSafety Switch Nut
-
20278001882 Battery, 30 AmperesBattery, 30 Amperes
-
22278002704 Diagnostic ConnectorDiagnostic Connector
-
32278002997 Central LCD GaugeCentral LCD Gauge
-
33278002908 OTAS Sensor Ass'yOTAS Sensor Ass'y
-
34278002483 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
34278002484 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
-
35278002767 SwitchSwitch
-
36278002602 SwitchSwitch
-
37278002284 LH Throttle SensorLH Throttle Sensor
-
38278002283 RH Throttle SensorRH Throttle Sensor
-
39295501137 Start/Stop Switch KitStart/Stop Switch Kit
-
41278002941 Wiring HarnessWiring Harness
-
42278002279 Starter CableStarter Cable
-
43278002278 Ground CableGround Cable
-
68278003053 O.T.A.S ActuatorO.T.A.S Actuator
-
79278002339 Battery SupportBattery Support
-
81278002347 Starter RelayStarter Relay
-
121278002950 Wiring Harness Ass'y. Includes 39Wiring Harness Ass'y. Includes 39
-
131278002958 Support ModuleSupport Module
-
139250000282 Battery Bolt KitBattery Bolt Kit
-
144293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
144414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
158710001103 Voltage RegulatorVoltage Regulator
