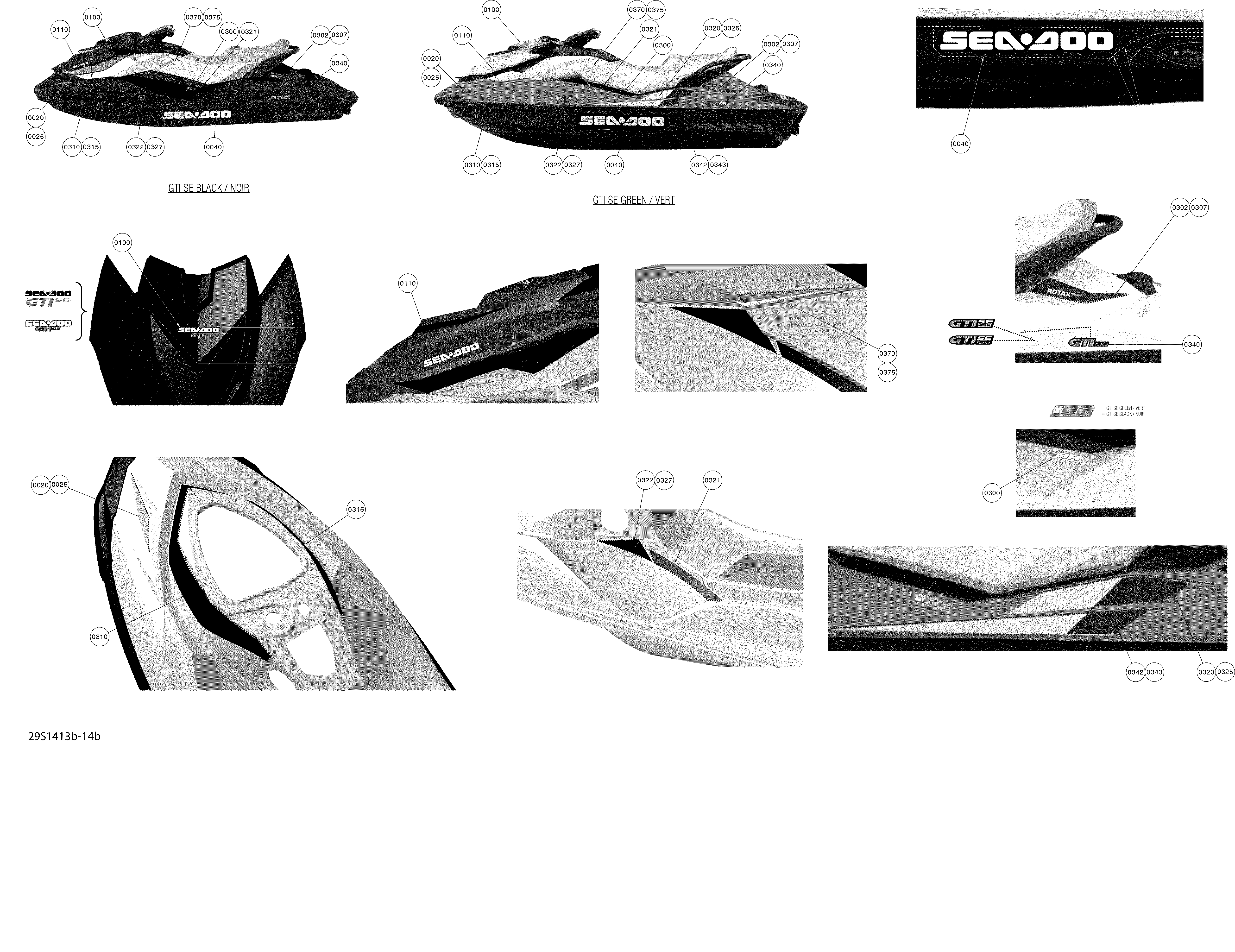

09- Decals _29S1413b для BRP GTI SE 130 - 2014
-
№АртикулНазвание
-
0020219903429 LH Front Side DecalLH Front Side Decal
-
0025219903430 RH Front Side DecalRH Front Side Decal
-
0040219903255 Sea-Doo Hull Decal. GTI SE BlackSea-Doo Hull Decal. GTI SE Black
-
0040219904092 Sea-Doo Hull Decal. GTI SE GreenSea-Doo Hull Decal. GTI SE Green
-
0100219903459 Decal Deflector. GTI SE BlackDecal Deflector. GTI SE Black
-
0100219904090 Decal Deflector. GTI SE GreenDecal Deflector. GTI SE Green
-
0110219903266 Front Sea-Doo Logo. GTI SE BlackFront Sea-Doo Logo. GTI SE Black
-
0110219904091 Front Sea-Doo Logo. GTI SE GreenFront Sea-Doo Logo. GTI SE Green
-
0300219903055 Decal, IBR. GTI SE BlackDecal, IBR. GTI SE Black
-
0300219904093 Decal, IBR. GTI SE GreenDecal, IBR. GTI SE Green
-
0302219904402 LH Rear DecalLH Rear Decal
-
0307219904403 RH Rear DecalRH Rear Decal
-
0310219903570 LH Front Side Decal. GTI SE GreenLH Front Side Decal. GTI SE Green
-
0310219903572 LH Front Side Decal. GTI SE BlackLH Front Side Decal. GTI SE Black
-
0315219903571 RH Front Side Decal. GTI SE GreenRH Front Side Decal. GTI SE Green
-
0315219903573 RH Front Side Decal. GTI SE BlackRH Front Side Decal. GTI SE Black
-
0320219904095 LH Rear Side DecalLH Rear Side Decal
-
0321219903288 Center DecalCenter Decal
-
0322219903416 LH Center DecalLH Center Decal
-
0325219904096 RH Rear Side DecalRH Rear Side Decal
-
0327219903417 RH Center DecalRH Center Decal
-
0340219903275 Decal, GTI SE 130. GTI SE 130 BlackDecal, GTI SE 130. GTI SE 130 Black
-
0340219904094 LH Rear Side Decal. GTI SE 130 GreenLH Rear Side Decal. GTI SE 130 Green
-
0342219904097 LH Rear Side DecalLH Rear Side Decal
-
0343219904098 RH Rear Side DecalRH Rear Side Decal
-
0370219903468 LH Center DecalLH Center Decal
-
0375219903469 RH Center DecalRH Center Decal
