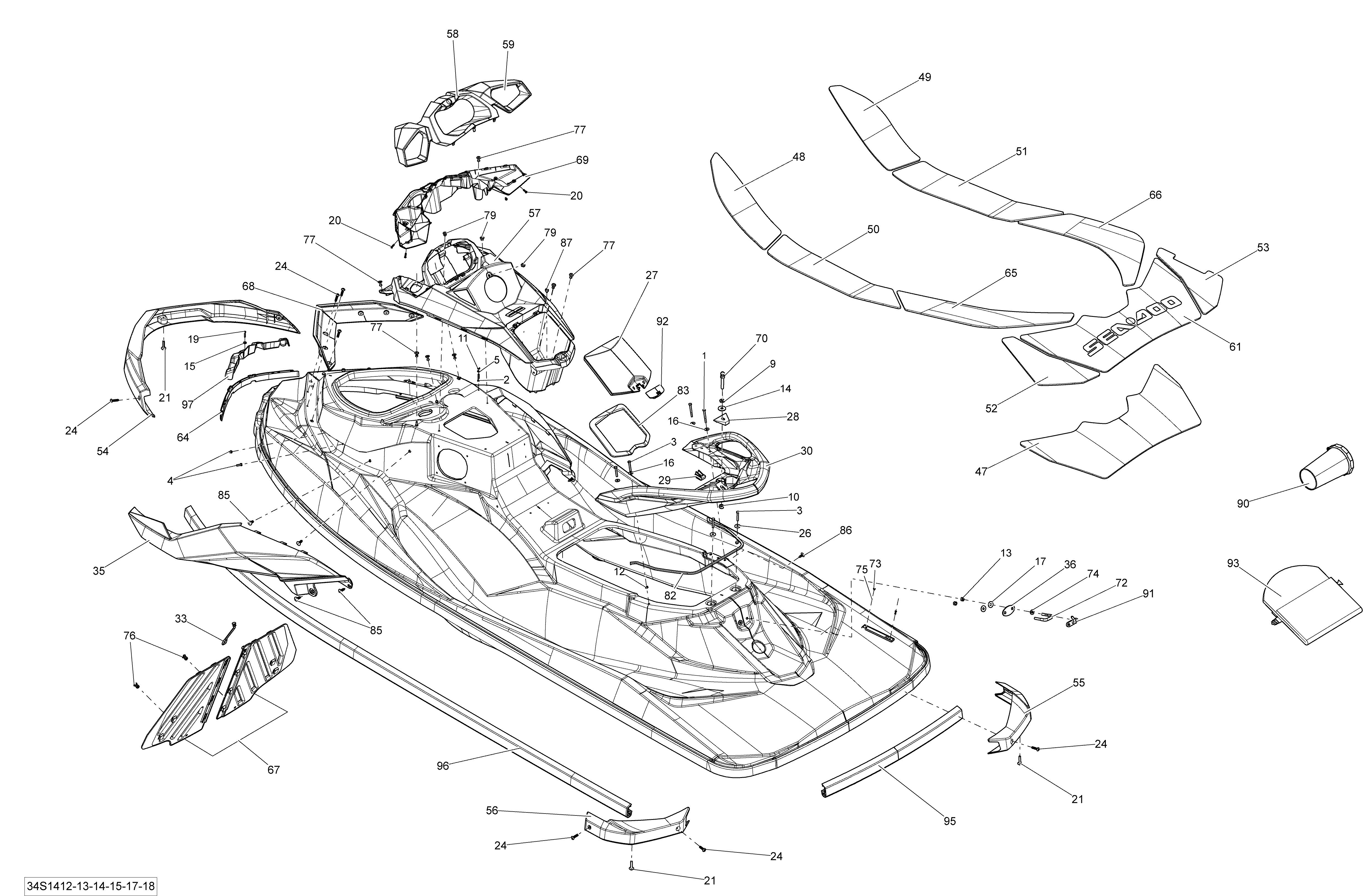

09- Body _34S1414 для BRP GTI SE 155 - 2014
-
№АртикулНазвание
-
1207065560 Hex. Screw M6 x 55Hex. Screw M6 x 55
-
2207153060 Hex. Flanged Screw M5 X 30Hex. Flanged Screw M5 X 30
-
3207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
5211200035 Flat WasherFlat Washer
-
9232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
10232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
11232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
12232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
13232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
14234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
15234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
16234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
17234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
20250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
21250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
24250000626 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
26250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
27264000059 Glovebox Access DoorGlovebox Access Door
-
28269002125 Seat Stud SpacerSeat Stud Spacer
-
29269002126 Seat Stud SupportSeat Stud Support
-
30291004625 Black Rear HandleBlack Rear Handle
-
33269501743 StrapStrap
-
34269501812 White RH Cosmetic PanelWhite RH Cosmetic Panel
-
35269501813 White LH Cosmetic PanelWhite LH Cosmetic Panel
-
36291001386 Finition Plate, BlackFinition Plate, Black
-
48291003058 LH Front CarpetLH Front Carpet
-
49291003059 RH Front CarpetRH Front Carpet
-
50291003060 LH Front Center CarpetLH Front Center Carpet
-
51291003061 RH Front Center CarpetRH Front Center Carpet
-
52291003062 LH Rear CarpetLH Rear Carpet
-
53291003063 RH Rear CarpetRH Rear Carpet
-
54291003064 Front BumperFront Bumper
-
55291004153 RH Bumper CornerRH Bumper Corner
-
56291004152 LH Bumper CornerLH Bumper Corner
-
57291003071 ConsoleConsole
-
58291003072 Info Gauge BezelInfo Gauge Bezel
-
59291003090 RH MirrorRH Mirror
-
60291003091 LH MirrorLH Mirror
-
61291003096 Swim Platform CarpetSwim Platform Carpet
-
64291003277 Deck NoseDeck Nose
-
65291003329 LH Rear Center CarpetLH Rear Center Carpet
-
66291003330 RH Rear Center CarpetRH Rear Center Carpet
-
67291003391 Divider Ass'yDivider Ass'y
-
68291003738 Body DeflectorBody Deflector
-
69291003741 Mirror SupportMirror Support
-
70291003877 Stud SeatStud Seat
-
72292000933 U-ClampU-Clamp
-
73293000014 Black Snap CapBlack Snap Cap
-
74293050001 Flat WasherFlat Washer
-
75293150016 Rivet 1/8''Rivet 1/8''
-
76293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
77293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
79293150186 Pop Rivet 3/16Pop Rivet 3/16
-
82293250218 GasketGasket
-
83293250236 GasketGasket
-
85293730006 Black DartBlack Dart
-
86293730011 Dart, BlackDart, Black
-
87293830005 Rubber BumperRubber Bumper
-
92264000091 Latch, BlackLatch, Black
-
95291003872 Lateral BumperLateral Bumper
-
96291003872 Lateral BumperLateral Bumper
-
97291003704 Bumper SupportBumper Support
