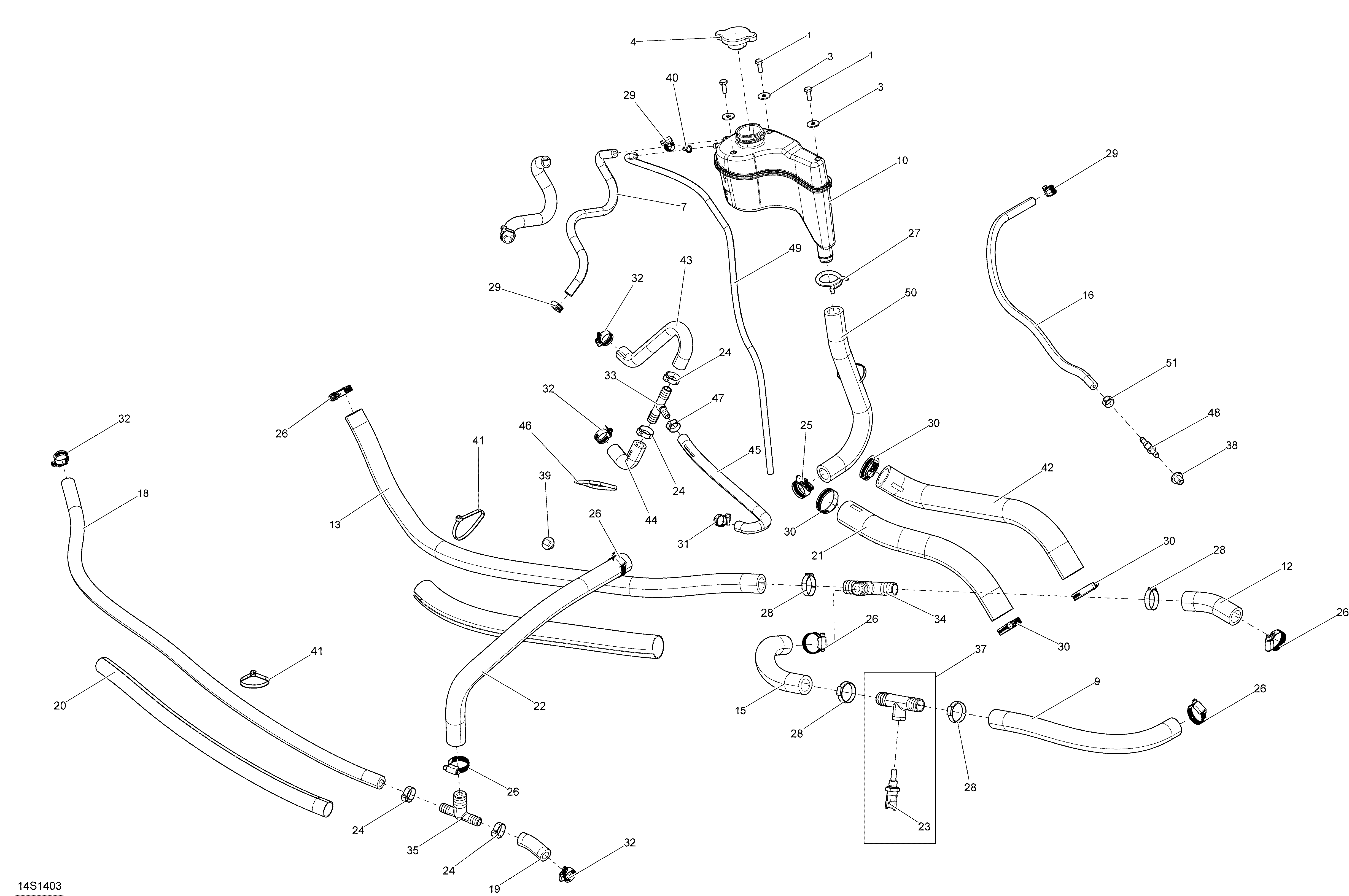

01- Cooling System _14S1403 для BRP GTX LTD iS 260 - 2014
-
№АртикулНазвание
-
1207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
3234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
4276000100 Pressure CapPressure Cap
-
7275500549 Hose 1/4''Hose 1/4''
-
9276000099 Hose 19 mmHose 19 mm
-
10276000265 Coolant TankCoolant Tank
-
12276000099 Hose 19 mmHose 19 mm
-
13276000099 Hose 19 mmHose 19 mm
-
15276000099 Hose 19 mmHose 19 mm
-
16275500549 Hose 1/4''Hose 1/4''
-
18276000151 Hose 12.5 mmHose 12.5 mm
-
19276000151 Hose 12.5 mmHose 12.5 mm
-
20409902200 Tubing 25 mmTubing 25 mm
-
21276000241 Radiator HoseRadiator Hose
-
22276000099 Hose 19 mmHose 19 mm
-
23278002895 Temperature SensorTemperature Sensor
-
24293650012 Oetiker ClampOetiker Clamp
-
25293650019 Tridon Gear ClampTridon Gear Clamp
-
26293650051 Tridon Gear ClampTridon Gear Clamp
-
27293650115 Spring ClampSpring Clamp
-
28293650051 Tridon Gear ClampTridon Gear Clamp
-
29293650170 Tridon Gear ClampTridon Gear Clamp
-
30293650185 Tridon Gear ClampTridon Gear Clamp
-
31293650171 Tridon Gear ClampTridon Gear Clamp
-
32293650172 Tridon Gear ClampTridon Gear Clamp
-
33293710116 T-FittingT-Fitting
-
34293710131 T-FittingT-Fitting
-
35293710132 T-FittingT-Fitting
-
37293710143 Sensor AssemblySensor Assembly
-
38293720029 GrommetGrommet
-
39293730040 Mount DartMount Dart
-
40293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
42276000240 Radiator HoseRadiator Hose
-
43276000244 Formed HoseFormed Hose
-
44276000245 Lower Formed HoseLower Formed Hose
-
45276000246 Formed HoseFormed Hose
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
47293650030 Oetiker ClampOetiker Clamp
-
48414518500 Male ConnectorMale Connector
-
49415080200 Hose, PolyurethaneHose, Polyurethane
-
50276000099 Hose 19 mmHose 19 mm
-
51293650025 Oetiker Gear ClampOetiker Gear Clamp
