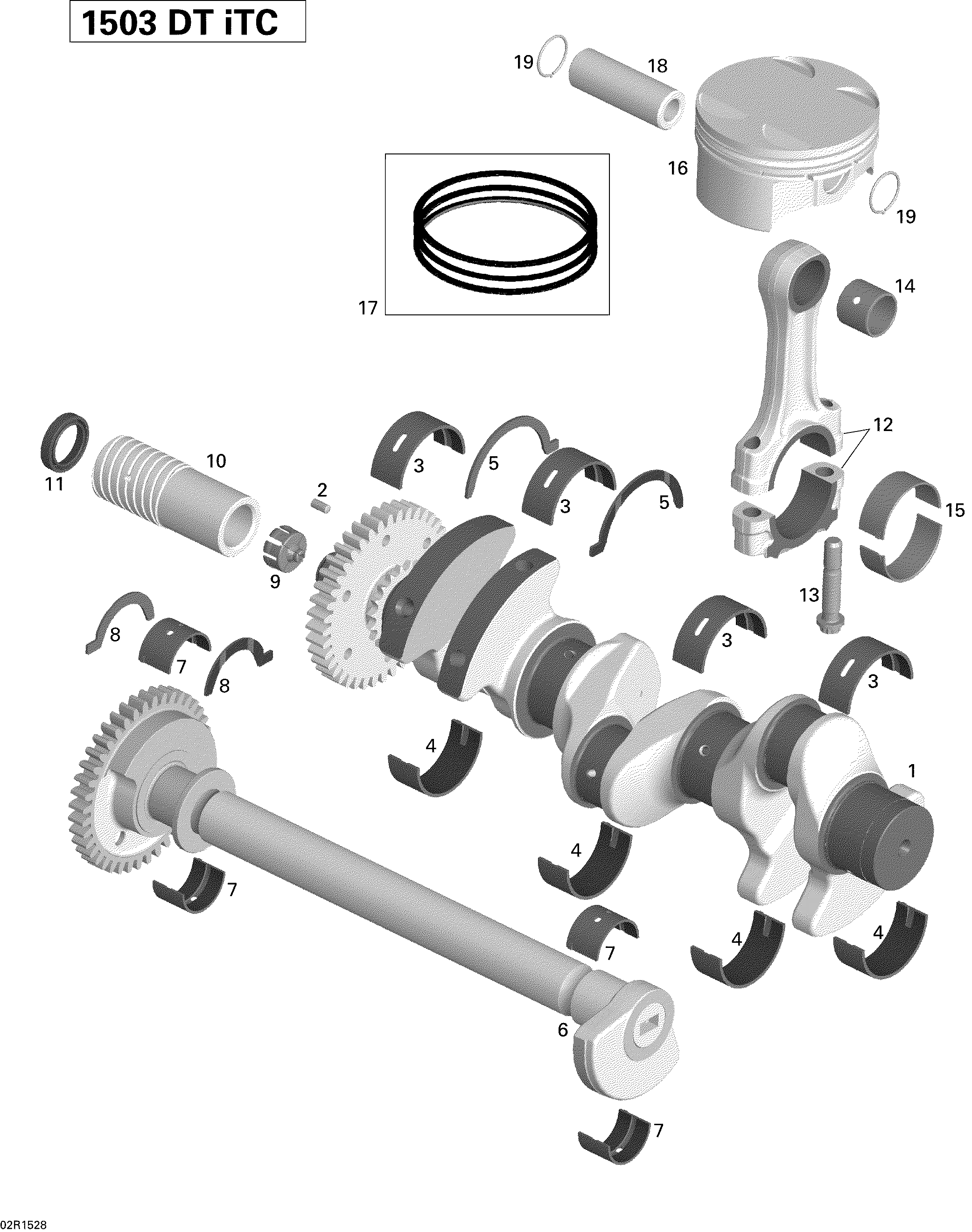

01- Crankshaft, Pistons And Balance Shaft _02R1528 для BRP GTI 130 - 2015

№

Артикул

Название
1

420819348 Crankshaft Ass'y. Includes 1 to 2

Crankshaft Ass'y. Includes 1 to 2

118 570 ₽
2

420929650 Drive Pin 5 X 10

Drive Pin 5 X 10

600 ₽
3

420933456 Plain Half-Bearing

Plain Half-Bearing

2 020 ₽
4

420933466 Plain Half-Bearing

Plain Half-Bearing

2 020 ₽
5

420933475 Half-Ring

Half-Ring

3 990 ₽
6

420837556 Balance Shaft Ass'y

Balance Shaft Ass'y

192 500 ₽
7

420933442 Plain Half-Bearing

Plain Half-Bearing

2 950 ₽
8

420933470 Half-Ring

Half-Ring

2 610 ₽
9

420660280 Stop Sleeve

Stop Sleeve

3 200 ₽
10

420847952 Output Sleeve

Output Sleeve

9 400 ₽
11

420630551 Sealing Ring

Sealing Ring

5 250 ₽
12

420917516 Connecting Rod Ass'y. Includes 12 to 14

Connecting Rod Ass'y. Includes 12 to 14

20 380 ₽
13

420640990 Connecting Rod Screw

Connecting Rod Screw

970 ₽
14

420933510 Bearing Sleeve

Bearing Sleeve

1 180 ₽
15

420933523 Half-Bearing

Half-Bearing

11 060 ₽
16

420296565 Piston Ass'y, Standard, 99.96 mm. Includes 16 to 17

Piston Ass'y, Standard, 99.96 mm. Includes 16 to 17

16 970 ₽
16

420296566 Piston Ass'y, Oversize, 100.21 mm. Includes 16 to 17

Piston Ass'y, Oversize, 100.21 mm. Includes 16 to 17

64 650 ₽
17

420890380 Piston Set Ring, Standard

Piston Set Ring, Standard

40 900 ₽
17

420890381 Piston Set Ring, Oversize

Piston Set Ring, Oversize

27 270 ₽
18

420216250 Piston Pin

Piston Pin

2 730 ₽
19

420845580 Circlip

Circlip

910 ₽
