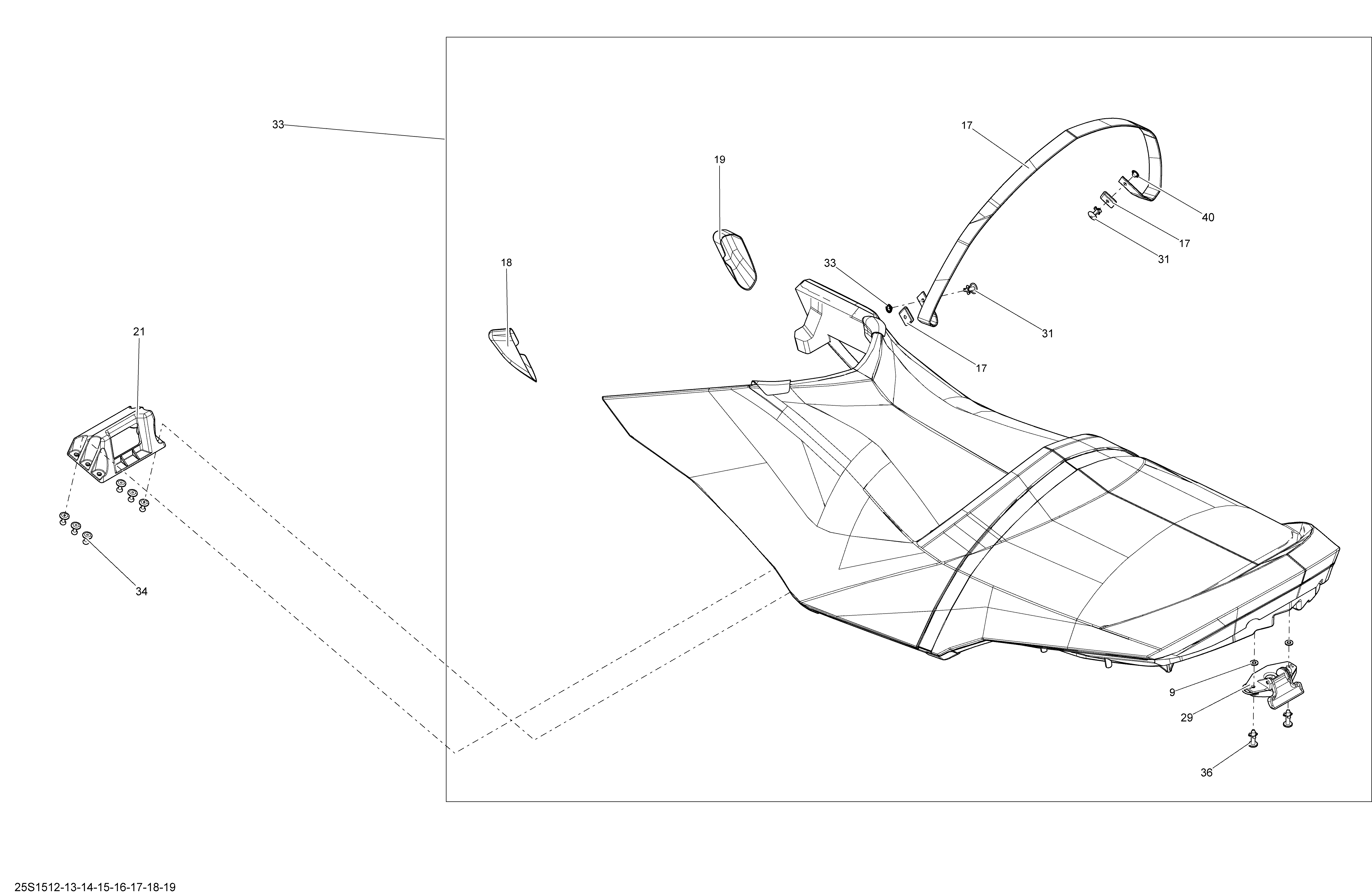

09- Seat _25S1515 для BRP GTI SE 155 - 2015
-
№АртикулНазвание
-
9234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
17269002907 Seat StrapSeat Strap
-
18269002844 LH Seat ProtectorLH Seat Protector
-
19269002845 RH Seat ProtectorRH Seat Protector
-
21269002151 Seat ReceptacleSeat Receptacle
-
29269700109 Latch Ass'yLatch Ass'y
-
31293150067 RivetRivet
-
33269002829 Seat Ass'y. Blue-White ModelSeat Ass'y. Blue-White Model
-
33269002915 Seat Ass'y. Black-Orange ModelSeat Ass'y. Black-Orange Model
-
34293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293150151 Rivet 1/4''Rivet 1/4''
-
40293720067 GrommetGrommet
