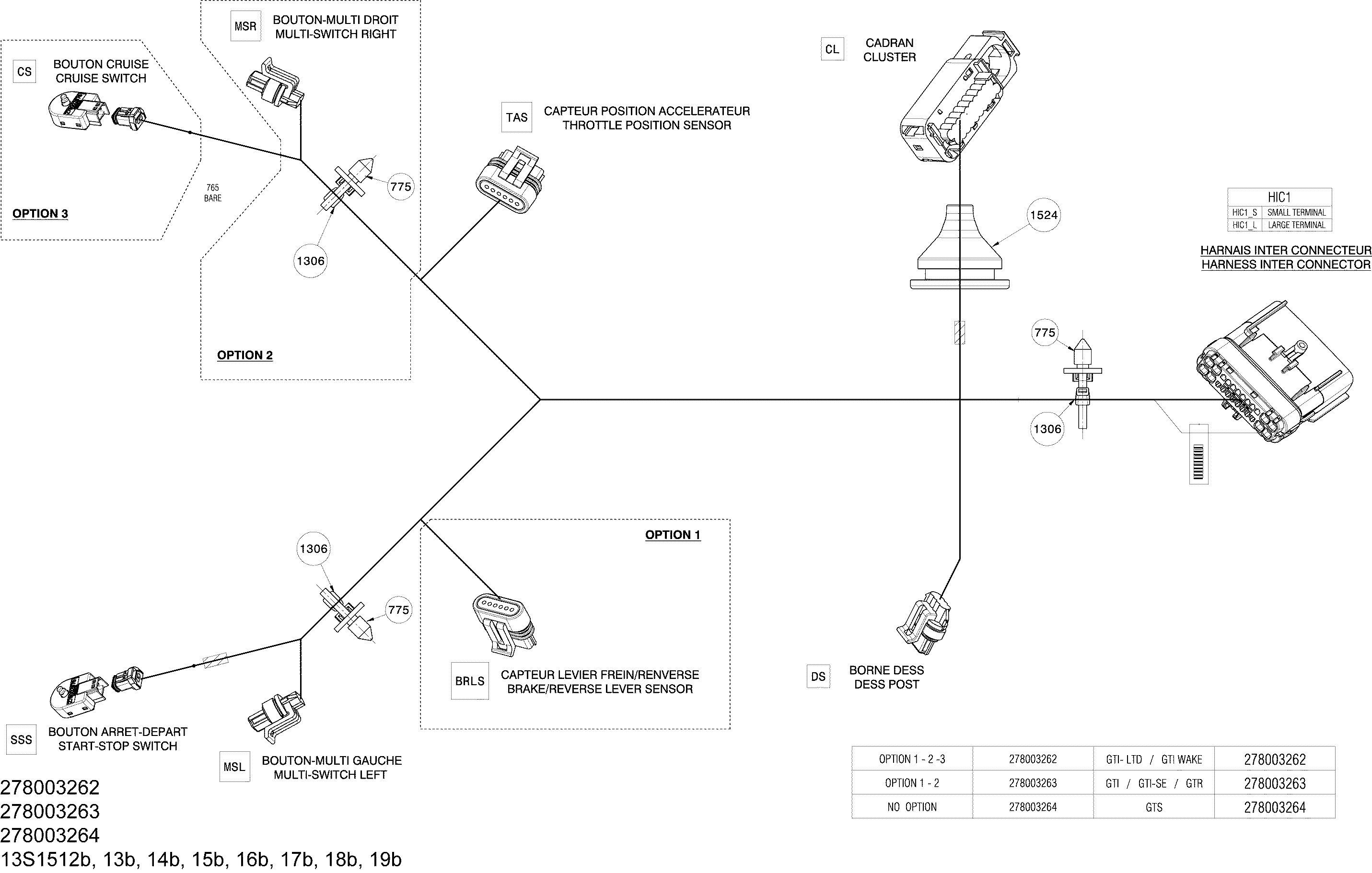

10- Electrical Harness Steering_13S1519b для BRP GTS 130 & Rental - 2015
-
№АртикулНазвание
-
1278003262 Steering Harness Ass'y. GTI LTD, WAKESteering Harness Ass'y. GTI LTD, WAKE
-
1278003263 Steering Harness Ass'y. GTI, GIT SE, GTRSteering Harness Ass'y. GTI, GIT SE, GTR
-
1278003264 Steering Harness Ass'y. GTSSteering Harness Ass'y. GTS
-
BRLS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
BRLS710001119 Female TerminalFemale Terminal
-
CL278002385 Male Terminal Housing, 20 CircuitsMale Terminal Housing, 20 Circuits
-
CL710000925 TerminalTerminal
-
CL710001153 Seal WireSeal Wire
-
CL710001163 Wire SealWire Seal
-
CL710001164 Female TerminalFemale Terminal
-
CL710001225 CapCap
-
CS278002676 Switch Start/StopSwitch Start/Stop
-
CS278002856 Housing JAE, 2 CircuitsHousing JAE, 2 Circuits
-
CS278002857 Female TerminalFemale Terminal
-
DS710000925 TerminalTerminal
-
DS710001153 Seal WireSeal Wire
-
DS710001161 HousingHousing
-
HIC1_L278002456 Male TerminalMale Terminal
-
HIC1_S278002452 HousingHousing
-
HIC1_S278002454 Male TerminalMale Terminal
-
MSL278002387 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
MSL710001163 Wire SealWire Seal
-
MSL710001164 Female TerminalFemale Terminal
-
MSR278002386 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
MSR710001163 Wire SealWire Seal
-
MSR710001164 Female TerminalFemale Terminal
-
SSS278002676 Switch Start/StopSwitch Start/Stop
-
SSS278002856 Housing JAE, 2 CircuitsHousing JAE, 2 Circuits
-
SSS278002857 Female TerminalFemale Terminal
-
TAS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
TAS710001119 Female TerminalFemale Terminal
