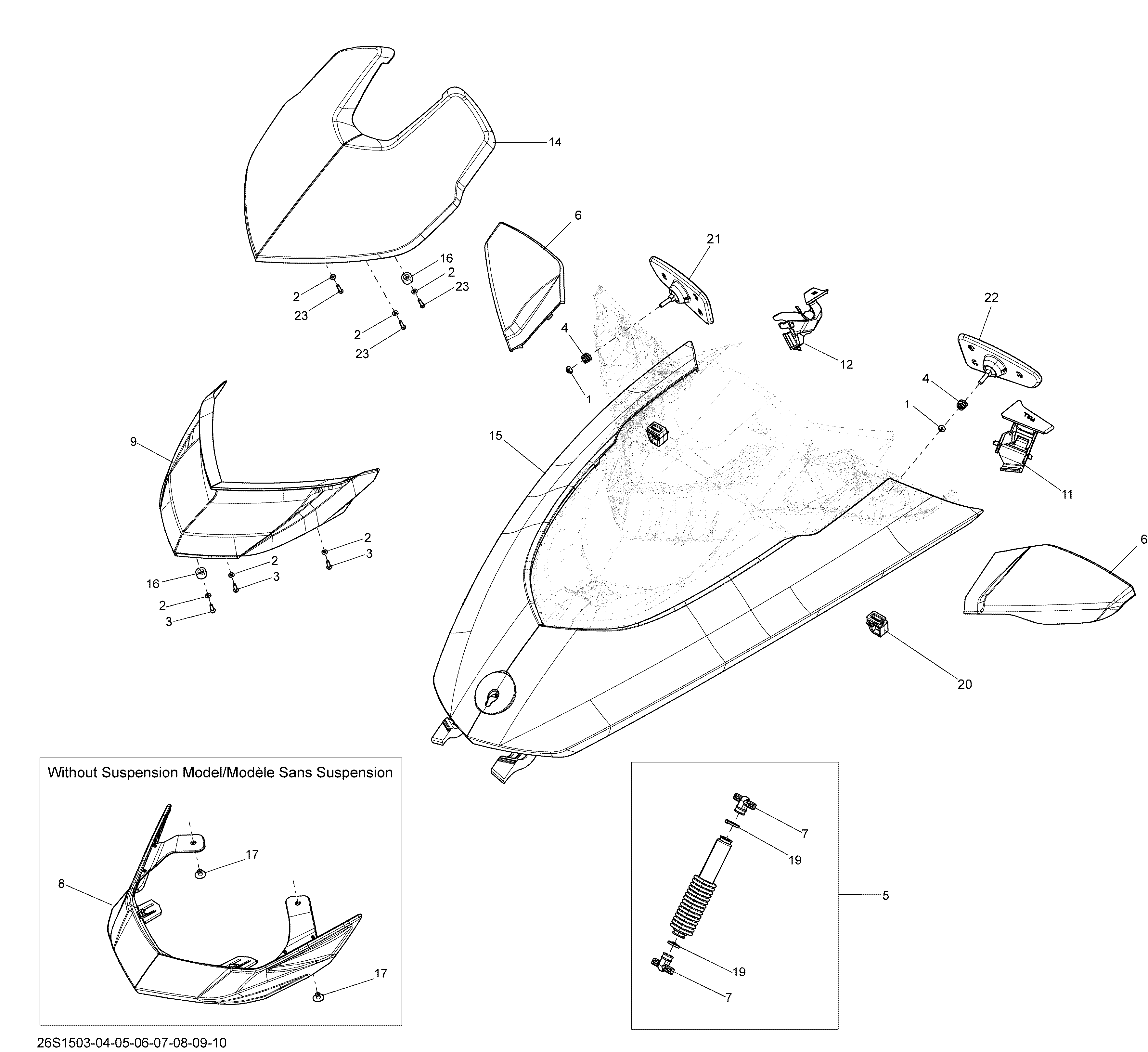

09- Front Cover _26S1508 для BRP GTX LTD 215 - 2015
-
№АртикулНазвание
-
1232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
3241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
4269500453 Mirror SpringMirror Spring
-
5269501664 Shock AbsorberShock Absorber
-
6269501956 Anthracite RH Mirror HousingAnthracite RH Mirror Housing
-
6269501957 Anthracite LH Mirror HousingAnthracite LH Mirror Housing
-
7269501717 Shock End PieceShock End Piece
-
8269501756 Black Front CosmeticBlack Front Cosmetic
-
9269502087 Chrome Front CosmeticChrome Front Cosmetic
-
11269501964 Left LatchLeft Latch
-
12269501965 Right LatchRight Latch
-
14269501983 Anthracite Upper Front DeflectorAnthracite Upper Front Deflector
-
15269502075 Anthracite Hood AssemblyAnthracite Hood Assembly
-
16291001203 SpacerSpacer
-
17293150067 RivetRivet
-
19293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
20293830135 Rubber BumperRubber Bumper
-
21269501920 RH Mirror Ass'yRH Mirror Ass'y
-
22269501918 LH Mirror Ass'yLH Mirror Ass'y
-
23241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
