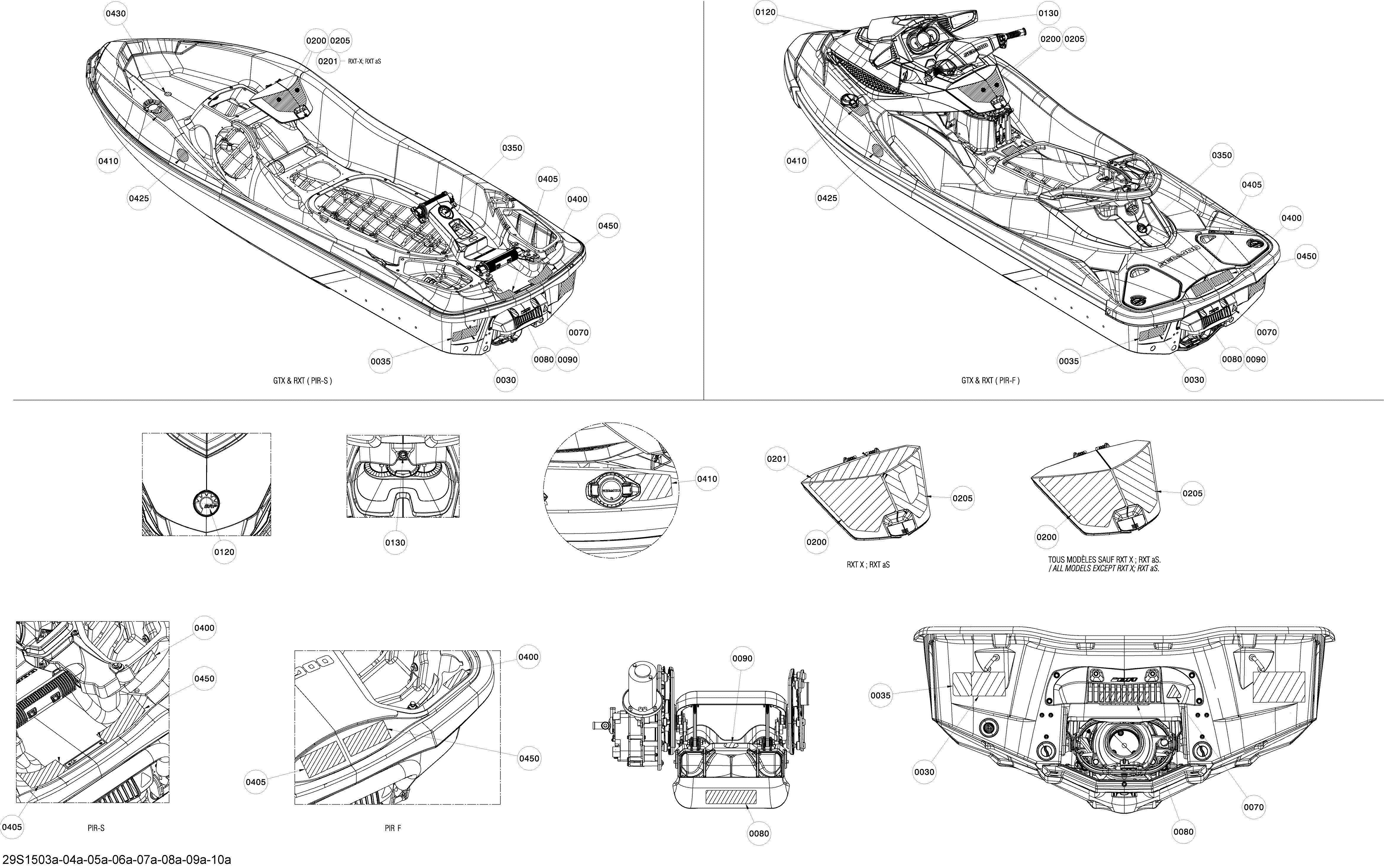

09- Decals _29S1503a для BRP GTX LTD iS 260 - 2015
-
№АртикулНазвание
-
0030219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
0035219904387 Notice Decal, RinceNotice Decal, Rince
-
0070219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
0080219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
0090219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
0120704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
0130704904616 BRP Logo, 20mmBRP Logo, 20mm
-
0200219904548 LH Warning Decal, PrincipalLH Warning Decal, Principal
-
0205219904653 RH Sport Model Label, EnglishRH Sport Model Label, English
-
0350704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
0400219903082 Warning Decal, BatteryWarning Decal, Battery
-
0405219903510 Decal, ExemptionDecal, Exemption
-
0410219903495 Warning Decal, Gasoline/OctaneWarning Decal, Gasoline/Octane
-
0425219902679 Decal, Emission ControlDecal, Emission Control
-
0430219903079 Decal, No ObjectsDecal, No Objects
-
0450219904252 Warning LabelWarning Label
