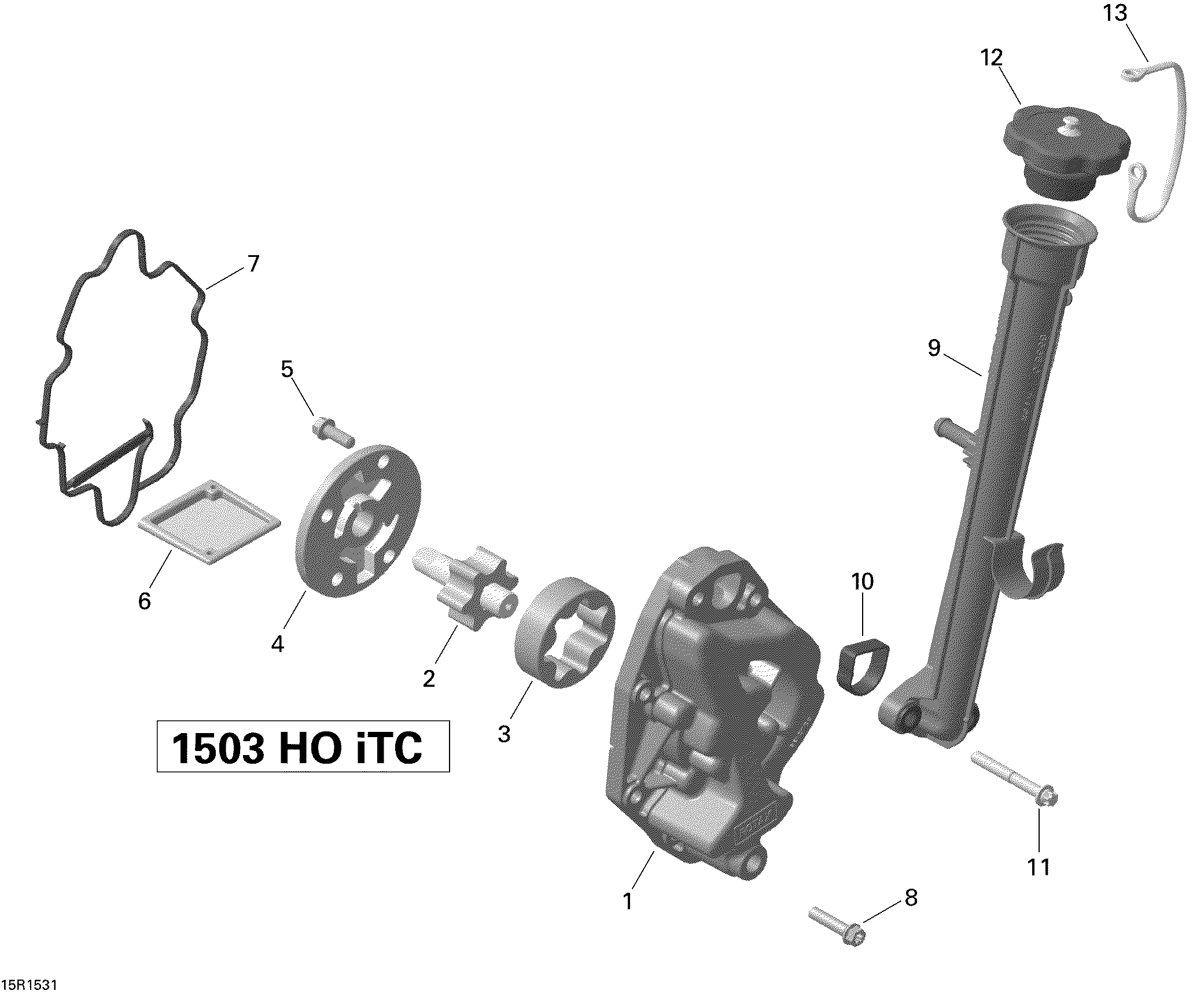

02- Oil Separator _15R1531 для BRP RXT 260 & RS - 2015
-
№АртикулНазвание
-
1420812723 Oil Pump Housing. Includes 1 to 2Oil Pump Housing. Includes 1 to 2
-
2420837543 Oil Pump ShaftOil Pump Shaft
-
3420956675 Oil Pump Rotor 16 mmOil Pump Rotor 16 mm
-
4420811850 Oil Pump CoverOil Pump Cover
-
5420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420856520 Oil SieveOil Sieve
-
7420631486 GasketGasket
-
8420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
9420856511 Oil Filler Tube Ass'y. Includes 9 to 10Oil Filler Tube Ass'y. Includes 9 to 10
-
10420430240 GasketGasket
-
11420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
12420956923 Plug Cover, YellowPlug Cover, Yellow
-
13420660620 Retaining BandRetaining Band
