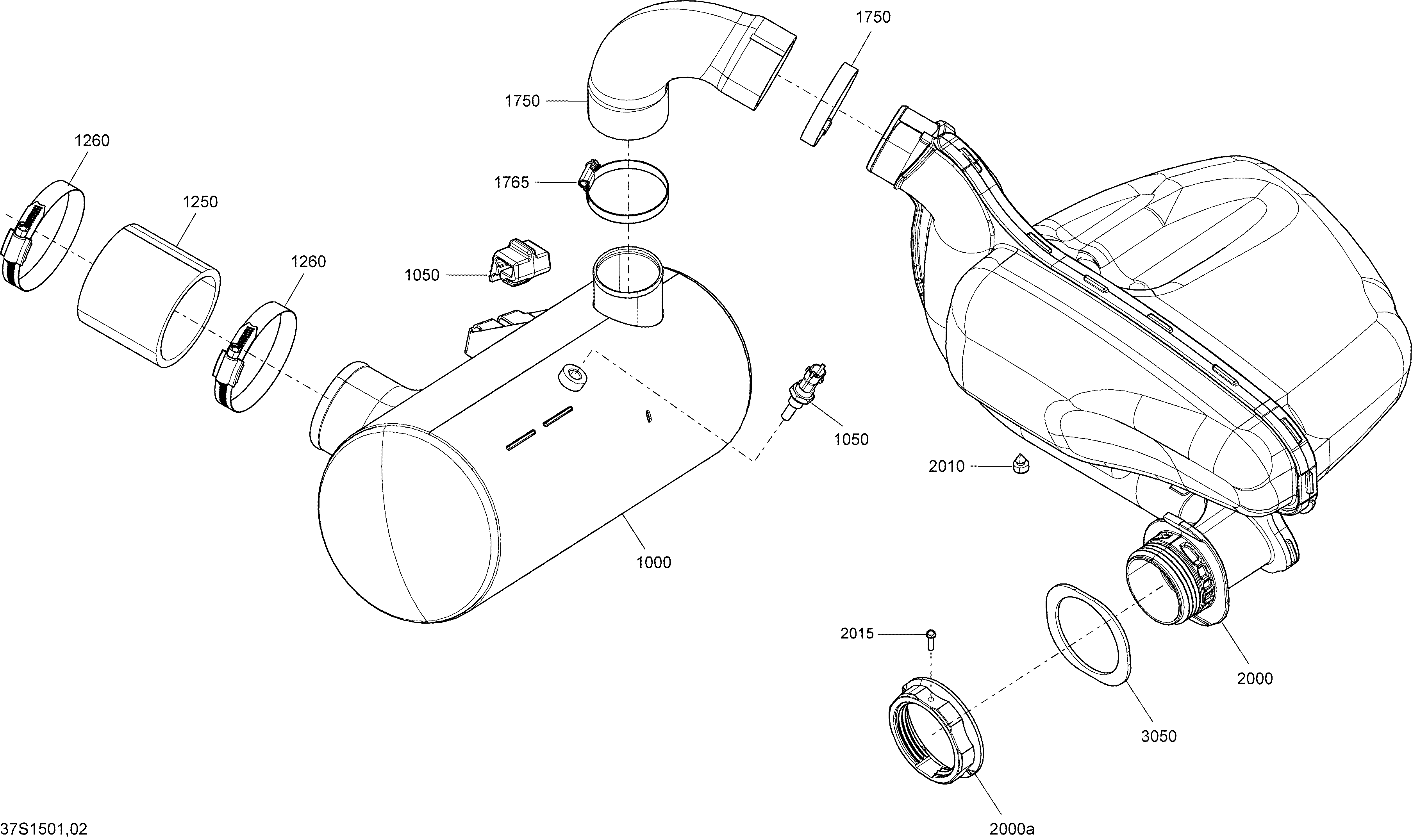

01- Exhaust System _37S1502 для BRP SPARK ACE 900 HO (2up And 3up) - 2015
-
№АртикулНазвание
-
1000274001519 Exhaust MufflerExhaust Muffler
-
1050278002895 Temperature SensorTemperature Sensor
-
1250274001453 Hose 79.375mm - 80mmHose 79.375mm - 80mm
-
1260293650221 ClampClamp
-
1500514054606 Upper StopperUpper Stopper
-
1750274001454 Exhaust HoseExhaust Hose
-
1760293650226 Tridon ClampTridon Clamp
-
1765293650081 Norma ClampNorma Clamp
-
2000274001488 Resonator Ass'yResonator Ass'y
-
2000a274000224 Nut 72 mmNut 72 mm
-
2010293830005 Rubber BumperRubber Bumper
-
2015211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
3050268000112 GasketGasket
