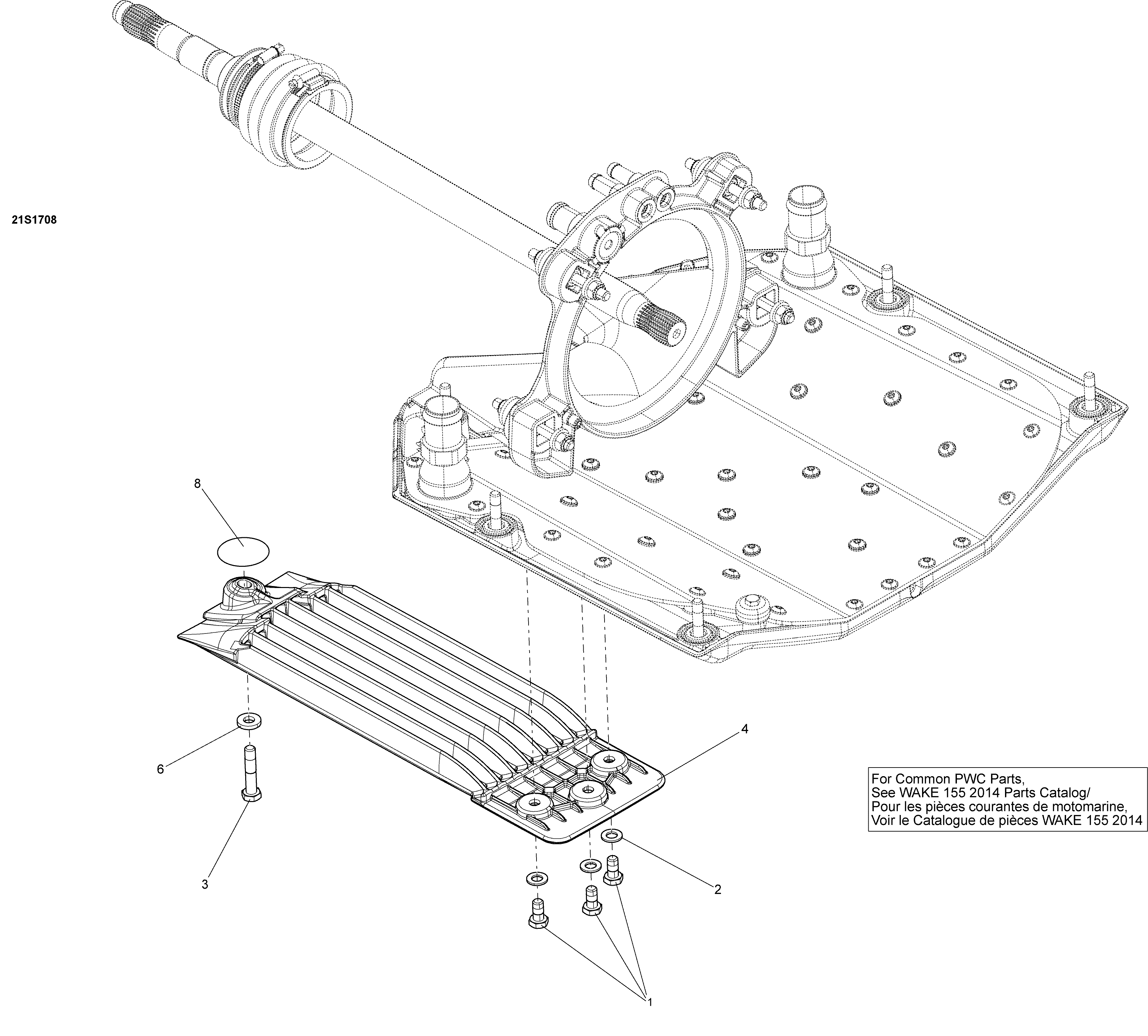

05- Propulsion для BRP SAR 155 - 2017
-
№АртикулНазвание
-
1207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
2234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
3250000530 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
4271001947 Pump GratePump Grate
-
6293050001 Flat WasherFlat Washer
-
8293830047 Protector DiskProtector Disk
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- • 05- Propulsion
- 05- Pump
- 09- Body
- 09- Hull
- 09- Seat
- 10- Electrical System
