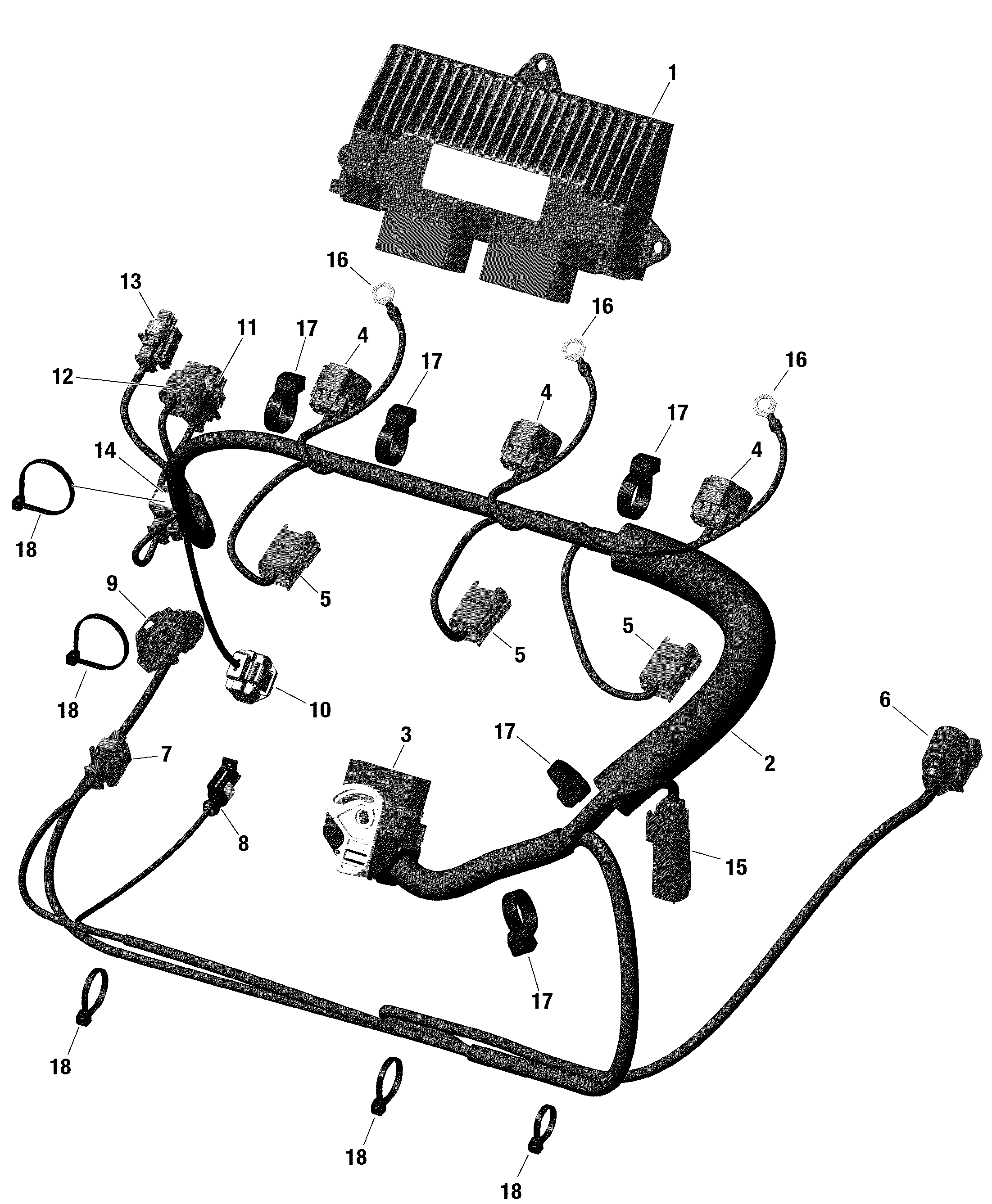

10- Engine Harness And Electronic Module 130HP для BRP 2- GTI 130 - 2018
-
№АртикулНазвание
-
1420464223 Electronic BoxElectronic Box
-
2>16420964082 Engine Wiring Harness Ass'yEngine Wiring Harness Ass'y
-
5515176129 Female HousingFemale Housing
-
6515177406 Female HousingFemale Housing
-
7278001005 BLOC BOSCH 2 CIRCUITS MALEBLOC BOSCH 2 CIRCUITS MALE
-
8278001012 BLOC AMP 1 CIRCUITS MALEBLOC AMP 1 CIRCUITS MALE
-
9515176410 BLOC CONNECTEUR CAPSBLOC CONNECTEUR CAPS
-
11278003197 HousingHousing
-
13278001005 BLOC BOSCH 2 CIRCUITS MALEBLOC BOSCH 2 CIRCUITS MALE
-
15515178176 4 Circuits Male Housing4 Circuits Male Housing
-
16278000992 Open BarrelOpen Barrel
-
17420866716 Tie-RapTie-Rap
-
18420866714 Tie-RapTie-Rap
