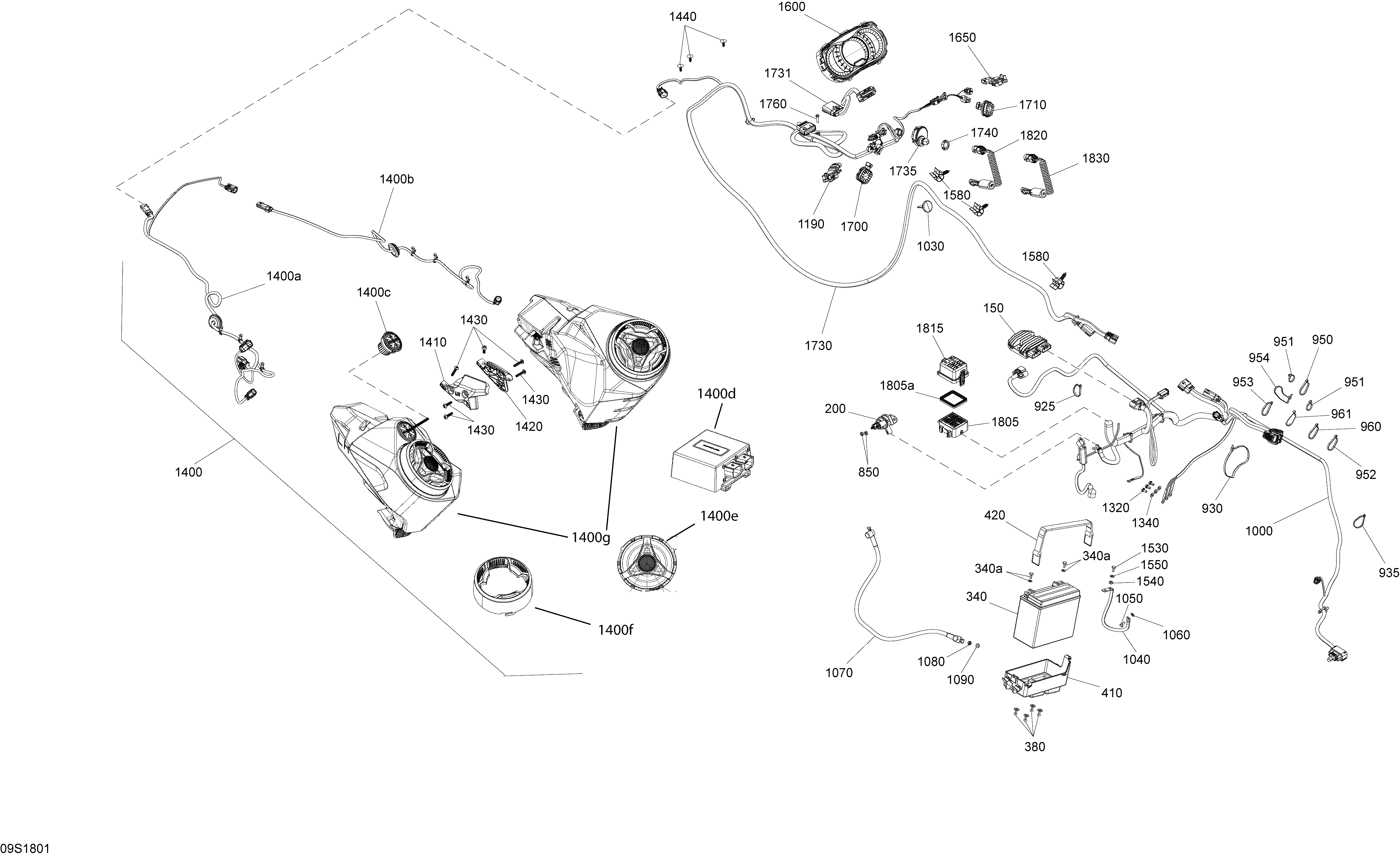

10- Electrical System Engine 1503 NA для BRP 1- GTX 155 - 2018
-
№АртикулНазвание
-
150710001103 Voltage RegulatorVoltage Regulator
-
200278003012 Starter RelayStarter Relay
-
340>340a410301203 Battery Ass'y, 18 Amperes. Includes 340 to 340 aBattery Ass'y, 18 Amperes. Includes 340 to 340 a
-
340a250000282 Battery Bolt KitBattery Bolt Kit
-
380293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
410278003473 Battery SupportBattery Support
-
420293850095 Fuel Tank StrapFuel Tank Strap
-
850232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
925414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
930293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
935293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
950414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
951414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
952414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
953414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
954414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
960414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
961414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1000278003436 Wiring HarnessWiring Harness
-
1030269502324 USB PlugUSB Plug
-
1040278003451 Cable GroundCable Ground
-
1050207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1060234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1070278003369 Cable-StarterCable-Starter
-
1080232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1090234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1190278002284 LH Throttle SensorLH Throttle Sensor
-
1320207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1340234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1400>1400g295100711 Audio System BlueTooth. Includes 1400 to 1400gAudio System BlueTooth. Includes 1400 to 1400g
-
1400a278003497 HarnessHarness
-
1400b278003462 Speaker HarnessSpeaker Harness
-
1400c278003465 Remote Control Radio BluethootRemote Control Radio Bluethoot
-
1400d278003464 AmplifierAmplifier
-
1400e278003463 SpeakerSpeaker
-
1400f278003466 Speaker GrilleSpeaker Grille
-
1400g278003663 Accoustic Speaker Enclosure Ass'y LHAccoustic Speaker Enclosure Ass'y LH
-
1400g278003664 Accoustic Speaker Enclosure Ass'y RHAccoustic Speaker Enclosure Ass'y RH
-
1410278003489 LH BracketLH Bracket
-
1420278003518 RH BracketRH Bracket
-
1430250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
1440293730011 Black DartBlack Dart
-
1440293730011 Black DartBlack Dart
-
1530207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1540232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1550234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1580278003564 RetainerRetainer
-
1600278003647 LCD GaugeLCD Gauge
-
1650278002283 RH Throttle SensorRH Throttle Sensor
-
1700278003476 SwitchSwitch
-
1710278003604 SwitchSwitch
-
1730278003634 Steering Harness Ass'YSteering Harness Ass'Y
-
1731278003636 Wiring Harness ExtensionWiring Harness Extension
-
1735515178225 DESS SwitchDESS Switch
-
1740278002963 Safety NutSafety Nut
-
1760211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
1805>1805a278003448 Fuse Base Ass'y. Includes 1805 to 1805aFuse Base Ass'y. Includes 1805 to 1805a
-
1805a278003450 SealSeal
-
1815278003469 Fuse CoverFuse Cover
-
1820278003400 Anti-Theft Tether CordAnti-Theft Tether Cord
-
1830278003401 Anti-Theft Tether Cord, LearningAnti-Theft Tether Cord, Learning
