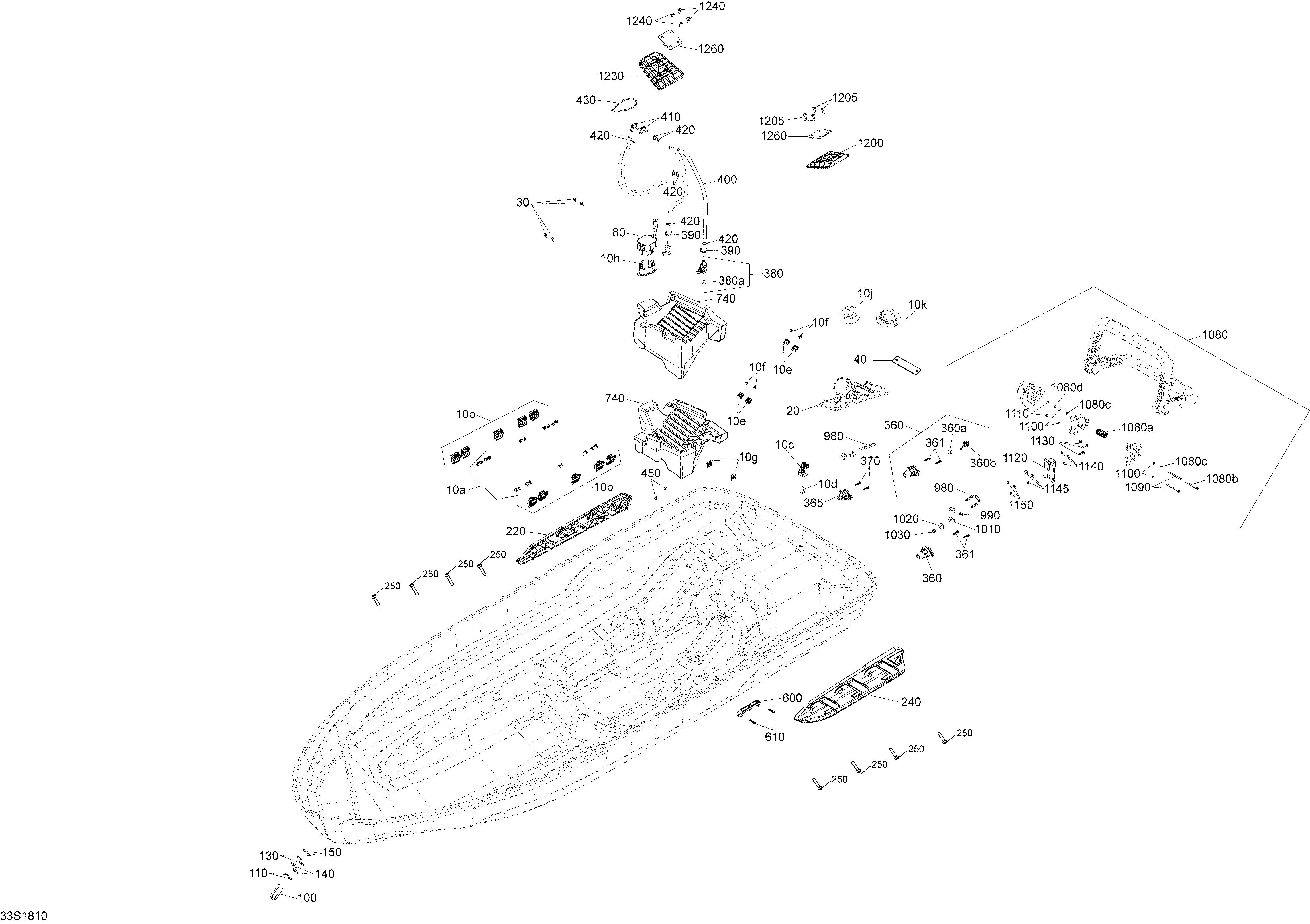

09- Hull GTX - 300 для BRP 3- GTX 300 - 2018
-
№АртикулНазвание
-
10a293150186 Pop Rivet 3/16Pop Rivet 3/16
-
10b270000933 Strap RetainingStrap Retaining
-
10c270000988 Strap AnchorStrap Anchor
-
10d250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
10e270000854 Strap AnchorStrap Anchor
-
10f293150186 Pop Rivet 3/16Pop Rivet 3/16
-
10g293750025 Tie-Rap MountTie-Rap Mount
-
10h278001994 Depth Sensor Base. Package LTDDepth Sensor Base. Package LTD
-
10j293450363 Insert M8Insert M8
-
10k293450371 Insert M8Insert M8
-
20293450362 Through Hull FittingThrough Hull Fitting
-
30243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
40291004907 ReinforcementReinforcement
-
80278002954 Depth Sensor. Package LTDDepth Sensor. Package LTD
-
100292000933 U-ClampU-Clamp
-
110293050001 Flat WasherFlat Washer
-
130250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
140293830037 Rubber WasherRubber Washer
-
150232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
220292001953 Sponson RHSponson RH
-
240292001954 Sponson LHSponson LH
-
250250000994 Torx-Head Screw M8 X 35Torx-Head Screw M8 X 35
-
360292002097 Hull Drain Ass'y. Includes 360 to 360bHull Drain Ass'y. Includes 360 to 360b
-
360a293830080 Floating BallFloating Ball
-
360b292002022 Plug Ass'yPlug Ass'y
-
361250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
365292002153 Drain Neck Ass'yDrain Neck Ass'y
-
370250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
380292001636 Bailer Pick-up Ass'y. Includes 380 to 380aBailer Pick-up Ass'y. Includes 380 to 380a
-
380a293830080 Floating BallFloating Ball
-
390414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
400275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
410293710152 Fitting Elbow 90°Fitting Elbow 90°
-
420293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
430293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
450293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
740292002028 Cooler FloatCooler Float
-
980292000933 U-ClampU-Clamp
-
990293050001 Flat WasherFlat Washer
-
1010293830037 Rubber WasherRubber Washer
-
1020250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1030232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1080295100747 Ladder Sea-Doo. Includes 1080 to 1080dLadder Sea-Doo. Includes 1080 to 1080d
-
1080a292002107 SpringSpring
-
1080b207068060 Hex. Screw M6 x 80Hex. Screw M6 x 80
-
1080c234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1080d232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
1090207068060 Hex. Screw M6 x 80Hex. Screw M6 x 80
-
1100234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1110232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1120292002113 Ladder AttachmentLadder Attachment
-
1130250000924 Truss Cone Torx Screw M6 X 30Truss Cone Torx Screw M6 X 30
-
1140234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1145234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1150232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1200292002102 LH Trim TabLH Trim Tab
-
1205250000978 Hexagonal Cap Screw M6 X 25Hexagonal Cap Screw M6 X 25
-
1230292002103 RH Trim TabRH Trim Tab
-
1240250000978 Hexagonal Cap Screw M6 X 25Hexagonal Cap Screw M6 X 25
-
1260277002064 GasketGasket
