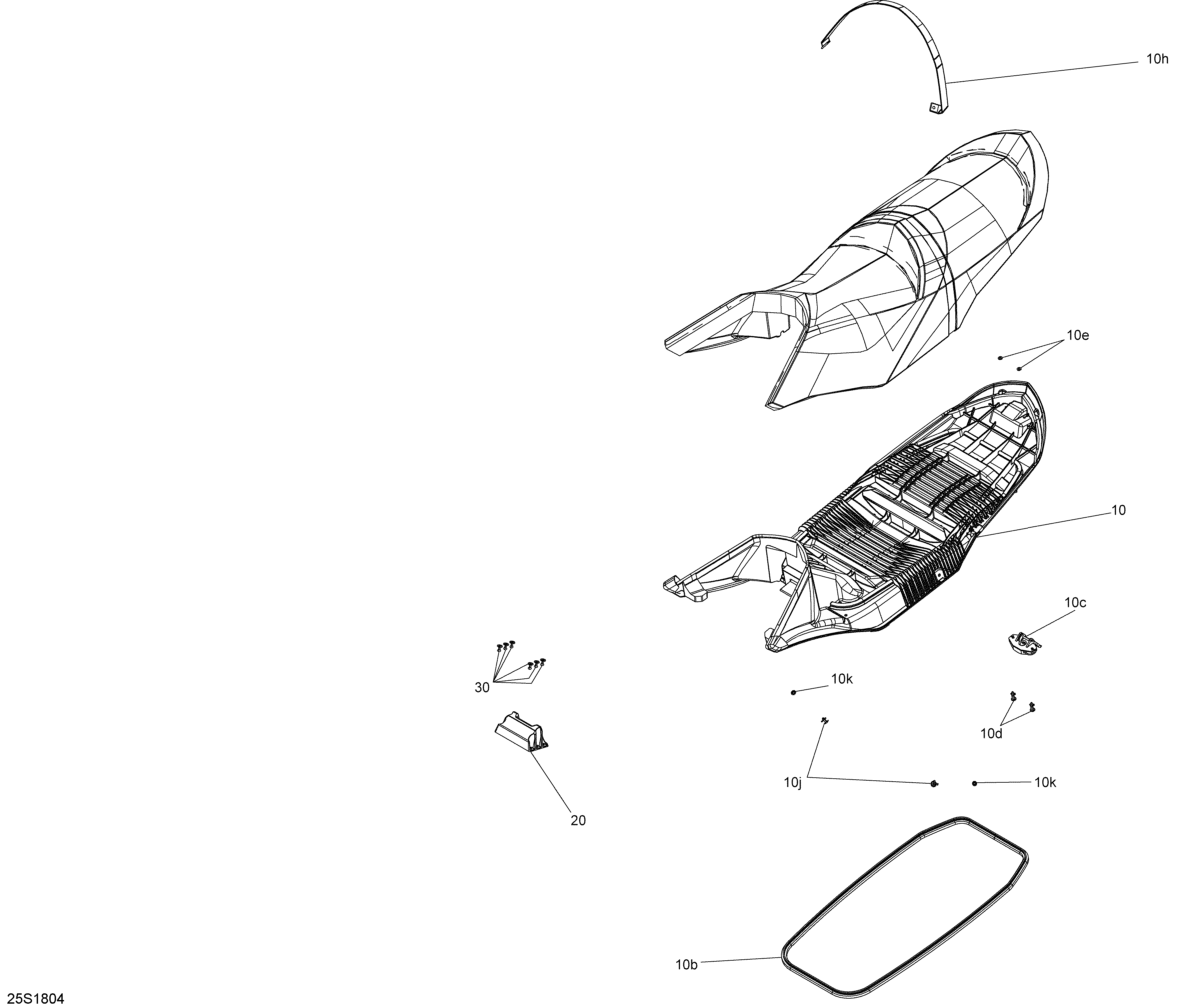

09- Seat RXP - 300 для BRP 1- RXP 300 - 2018
-
№АртикулНазвание
-
10269003172 Yellow/Black, Seat Ass'y. Model Grey/Yellow. Includes 10 to 10kYellow/Black, Seat Ass'y. Model Grey/Yellow. Includes 10 to 10k
-
10269003177 Gray/Black, Seat Ass'y. Model Grey/Red. Includes 10 to 10kGray/Black, Seat Ass'y. Model Grey/Red. Includes 10 to 10k
-
10b293200124 SealSeal
-
10c269700109 Latch Ass'yLatch Ass'y
-
10d293150151 Rivet 1/4''Rivet 1/4''
-
10e234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10h269003174 Seat Strap. Model Grey/YellowSeat Strap. Model Grey/Yellow
-
10h269003174 Seat Strap. Model Grey/RedSeat Strap. Model Grey/Red
-
10j293150067 RivetRivet
-
10k293720067 GrommetGrommet
-
10h269002098 LH Seat ProtectorLH Seat Protector
-
10j269002097 RH Seat ProtectorRH Seat Protector
-
20269002151 Seat ReceptacleSeat Receptacle
-
30293150123 Pop Rivet 3/16''Pop Rivet 3/16''
