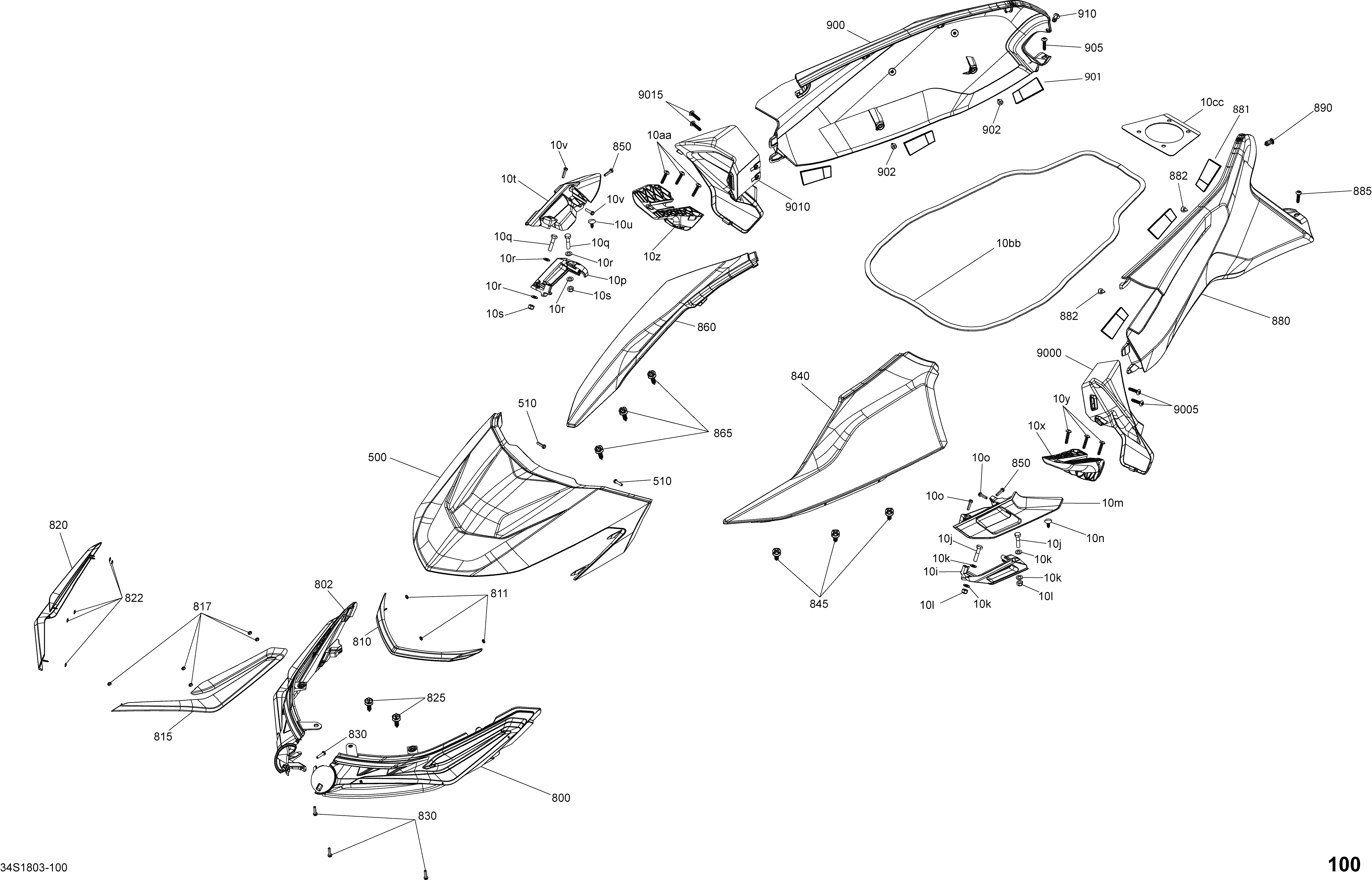

09- Body Front Part - RXT Package STD для BRP 1- RXT 230 - 2018
-
№АртикулНазвание
-
10i291004559 LH CleatLH Cleat
-
10j207083560 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
10k234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10l232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10m291004661 LH Shell CleatLH Shell Cleat
-
10n293730011 Black DartBlack Dart
-
10o211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
10p291004720 RH CleatRH Cleat
-
10q207083560 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
10r234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10s232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10t291004719 RH Shell CleatRH Shell Cleat
-
10u293730011 Black DartBlack Dart
-
10v211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
10x291004714 LH SupportLH Support
-
10y250000710 Torx Screw M6 X 3Torx Screw M6 X 3
-
10z291004715 RH SupportRH Support
-
10aa250000710 Torx Screw M6 X 3Torx Screw M6 X 3
-
10bb293250401 GasketGasket
-
10cc293250451 GasketGasket
-
500291004794 Hood B-160Hood B-160
-
510211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
800291004453 LH Front GrilleLH Front Grille
-
802291004610 RH Front GrilleRH Front Grille
-
810291004822 Trim F B-352Trim F B-352
-
811250100206 Push NutPush Nut
-
815291004834 Trim LH B-160Trim LH B-160
-
817250100206 Push NutPush Nut
-
820291004835 Trim RH B-160Trim RH B-160
-
822250100206 Push NutPush Nut
-
825293730071 DardDard
-
830211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
840291004777 Body Panel FL B-352Body Panel FL B-352
-
845293730071 DardDard
-
850211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
860291004778 Body Panel FR B-352Body Panel FR B-352
-
865293730071 DardDard
-
880291004779 Body Panel CTRL L B-352Body Panel CTRL L B-352
-
881278003618 StopperStopper
-
882293830005 Rubber BumperRubber Bumper
-
885250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
890293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
900291004783 Body Panel CTRL R B-352Body Panel CTRL R B-352
-
901278003618 StopperStopper
-
902293830005 Rubber BumperRubber Bumper
-
905250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
910293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
9000291004455 LH Side GrilleLH Side Grille
-
9005250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
9010291004456 RH Side GrilleRH Side Grille
-
9015250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
